2 Inch Caterpillar Hose Press For Sale AC Hose Crimper Hydraulic Hose Fitting Press Machine

  • 2 Inch Caterpillar Hose Press For Sale AC Hose Crimper Hydraulic Hose Fitting Press Machine
  • 2 Inch Caterpillar Hose Press For Sale AC Hose Crimper Hydraulic Hose Fitting Press Machine
  • 2 Inch Caterpillar Hose Press For Sale AC Hose Crimper Hydraulic Hose Fitting Press Machine
Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-P150
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 1/4 - 2 1/2inch
Die Sets 14 Color Grey And Orange
Max. Opening 61mm Crimping Force 380T
System Pressure 31.5Mpa Power 3.75KW
Size 720*970*1600mm Weight 1020Kg
High Light

car ac hose crimping machine

,

P150 AC Hose Crimping Machine

,

P150 automotive ac crimping tool
Leave a Message
Product Description

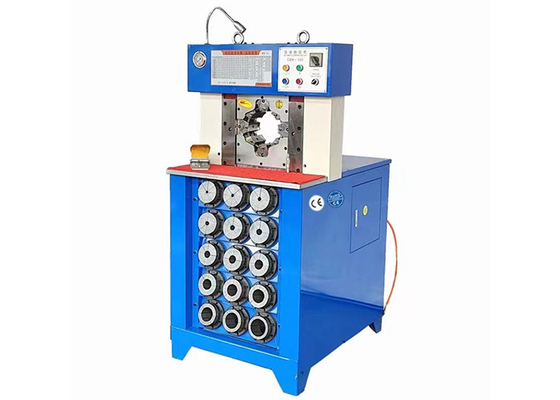

HEAVY DUTY HYDRAULIC HOSE CRIMPING MACHINE P150

DESCRIPTION



MS-P150 is the new type 2022.

It is capable of crimping hydraulic hose up to 2 1/2 inch and 2 inch 6SP stainless steel braided hoses. With super thin crimping head and vertical movement, it is the ideal choice for elbow fittings.



ADVANTAGES



► Advanced MS control system, high stability and productivity

► Quick die installing, make crimping more easily and save time

► Double use foot pedal, free both of the hand for carrying big or heavy work piece



TECHNICAL DATA



Model

MS-P150 AC Hose Crimping Machine

Crimping Range

14 - 87 (mm)

Crimping Force

380 (T)

Hose Size

1/4 - 2 1/2 (inch)

Max. Opening

61 (mm)

Die Sets

14

Die Set Type

P150

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

UC / MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

3.75 (KW)

Length

720 (mm)

Width

970 (mm)

Height

1600 (mm)

Weight

1020 (KG)



2 Inch Caterpillar Hose Press For Sale AC Hose Crimper Hydraulic Hose Fitting Press Machine 0





P150 CRIMPER DIE SETS



Die No.

Crimping (mm)

6*

6.0 - 8.0

8*

8 - 10.0

10*

10.0 - 12.0

12*

12.0 - 14.0

14

14.0 - 16.0

16

16.0 - 19.0

19

19.0 - 22.0

22

22.0 - 26.0

26

26.0 - 30.0

30

30.0 - 34.0

34

34.0 - 39.0

39

39.0 - 45.0

45

45.0 - 51.0

51

51.0 - 57.0

57

57.0 - 63.0

63

63.0 - 69.0

69

69.0 - 74.0
74 74.0 - 80.0
78* 78.0 - 87.0



NOTE



• " * " for non standard mold

• Customized die sets are available

• Special voltage 110V, 208V, 240V, 415V are availbale





► SUPER THIN CRIMPING HEAD



New cylinder making technology which seprate the cylinder with the crimping head, enbles a wide working stroke of the working area, so that the machine can be able to crimp elbow or irregular tubes



2 Inch Caterpillar Hose Press For Sale AC Hose Crimper Hydraulic Hose Fitting Press Machine 1



► NEW DIE SETS



14 die sets, range from 14mm to 74mm, suitable for hose from 1/4 to 2 inch with six spirals crimping



2 Inch Caterpillar Hose Press For Sale AC Hose Crimper Hydraulic Hose Fitting Press Machine 2



► HEAVY DUTY MACHINE RACK



With big cylinder hydraulic system, the machine capable of pressing hose up to 6 spirals



2 Inch Caterpillar Hose Press For Sale AC Hose Crimper Hydraulic Hose Fitting Press Machine 3



► BIG DOUBLE USE FOOT PEDAL



The foot pedal frees both of the operator's hand and improve the working efficiency much



2 Inch Caterpillar Hose Press For Sale AC Hose Crimper Hydraulic Hose Fitting Press Machine 4



► OEM SERVICE AVAILABLE



2 Inch Caterpillar Hose Press For Sale AC Hose Crimper Hydraulic Hose Fitting Press Machine 5



 ► APPLICATION SHOW



P150 is especially designed for big elbow fittings crimping, it is wodely used in car ac hose, hydraulic oil hose, air hose, water pipe, industrial hoses, wires and cables crimping work.



2 Inch Caterpillar Hose Press For Sale AC Hose Crimper Hydraulic Hose Fitting Press Machine 6
