Low Pressure Ac Hose Crimper
,E130 Ac Hose Crimper
,E130 Air Conditioner Hose Crimper

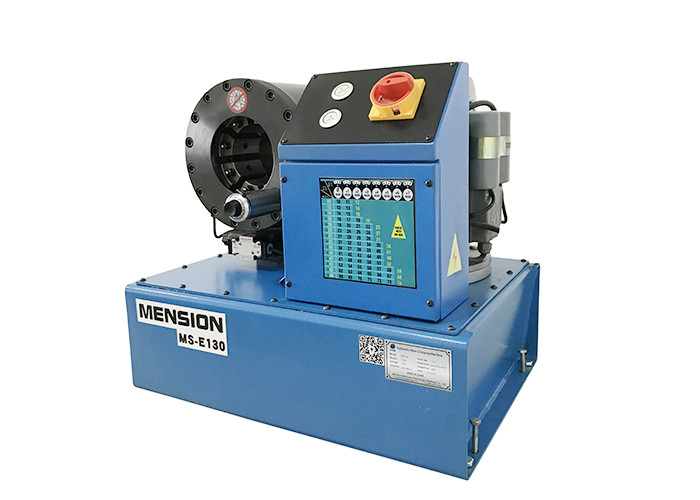

PRESSURE AC HOSE CRIMPING MACHINE MS-E130
DESCRIPTION
MS-E130 is an AC hose crimper machine which has the basic funtion of a crimping machine. It has compact structure but big crimping force compared with same size crimpers.
ADVANTAGES
1) Little size but big in crimping ability,
2) High quality hydraulic oil pump,
3) Fast opening with special valve,
4) Hydraulic control for opening size,
5) High stability in performance.
TECHNICAL DATA
|
Model |
MS-130 AC Hose Crimping Machine |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
640 (T) |
|
Hose Size |
1/4 - 2 (inch) |
|
Max. Opening |
25 (mm) |
|
Die Sets |
10 |
|
Die Set Type |
130 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
3 (KW) |
|
Length |
630 (mm) |
|
Width |
450 (mm) |
|
Height |
560 (mm) |
|
Weight |
190 (KG) |
130 HOSE CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
35 |
|
8* |
8 - 10mm |
35 |
|
10* |
10 - 12mm |
35 |
|
12* |
12 - 14mm |
35 |
|
14 |
14 - 16mm |
60 |
|
16 |
16 - 20mm |
60 |
|
20 |
20 - 22mm |
60 |
|
22 |
22 - 26mm |
60 |
|
26 |
26 - 30mm |
70 |
|
30 |
30 - 38mm |
70 |
|
38 |
38 - 46mm |
70 |
|
46 |
46 - 54mm |
80 |
|
54 |
54 - 64mm |
80 |
|
64 |
64 - 69mm |
80 |
|
69* |
69 - 76mm |
100 |
NOTE
1) Customized die sets are available;
2) Special voltage 110V, 208V, 240V, 415V are availbale;
3) * for non standard die sets.
OPTIONAL
1) Quick Change Tool
2) Quick Change Die Set Rack;
3) UC control;
4) Foot Pedal;
5) Pressure Gauge;
6) Normal Rack

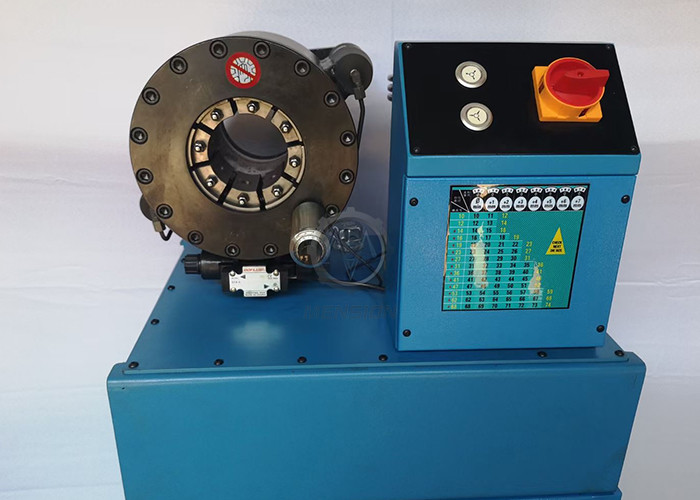

► HUAMN DESIGN OPERATE PANEL, TIME SAVING
► TWO BEVEL OF DIE BASE DESIGN, BIG PRESSING FORCE
► DIAMETER CONTROLED BY HIGH PRECISION MACHENICAL DEVICE
► DIE SETS WITH HIGH HARDNESS
-
