Finn Power Swage High Pressure Hydraulic Hose Crimping Machine 2 Inch Hose Press
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Crimping Range | 14 - 87mm | Hose Size | 1/4 - 2inch |
|---|---|---|---|
| Die Sets | 10 | Color | Blue |
| Max. Opening | 30mm | Crimping Force | 500T |
| System Pressure | 31.5Mpa | Power | 3KW |
| Size | 670*430*1520mm | Weight | 310Kg |
| Highlight | Quick Change Hydraulic Pipe Crimping Machine,51KH Hydraulic Pipe Crimping Machine,3KW hydraulic hose pipe machine |
||
Product Description

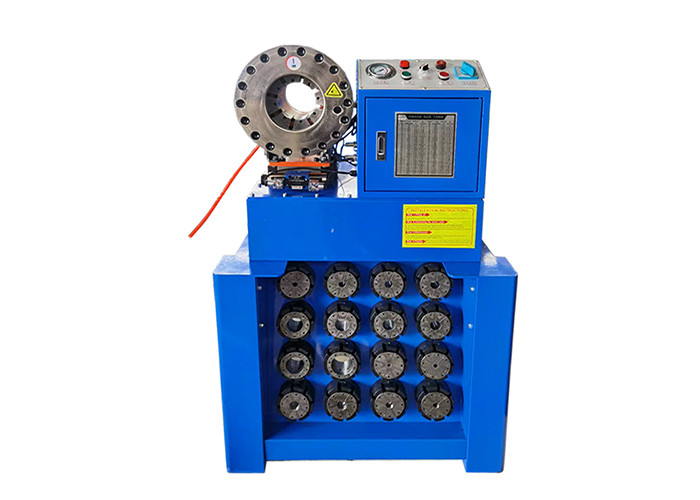

HYDRAULIC HOSE CRIMPING MACHINE MS-51KH
DESCRIPTION
MS-51KH is a updated model based on 51 series. It has same crimping force with 51 series, but has differences. Like the die set change, it uses a quick change technology, so that the die sets can be changed at one time instead of changing one oiece by one piece.
FEATURES
► One piece crimping cylinder with high hardness and stability
► Two operating mode, easy alternating
► Working lamp to help the user check the crimping status
► Quick change for die sets, improve the productivity
► Oil ruler to show the quantity and quality of the system oil
TECHNICAL DATA
|
Model |
MS-51KH Hose Crimper |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
500 (T) |
|
Hose Size |
1/4 - 2 (inch) |
|
Max. Opening |
30 (mm) |
|
Die Sets |
10 |
|
Die Set Type |
51 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.05 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
3 (KW) |
|
Length |
670 (mm) |
|
Width |
430 (mm) |
|
Height |
1520 (mm) |
|
Weight |
310 (KG) without oil |
51 CRIMPER DIE SETS
|
Die No. |
Crimping (mm) |
Length (mm) |
|
6* |
6.0 - 8.0 |
35 |
|
8* |
8.0 - 10.0 |
35 |
|
10* |
10.0 - 12.0 |
35 |
|
12* |
12.0 - 15.0 |
35 |
|
15 |
15.0 - 19.0 |
60 |
|
19 |
19.0 - 23.0 |
60 |
|
23 |
23.0 - 26.0 |
60 |
|
26 |
26.0 - 31.0 |
60 |
|
31 |
31.0 - 36.0 |
70 |
|
36 |
36.0 - 41.0 |
70 |
|
41 |
41.0 - 47.0 |
70 |
|
47 |
47.0 - 55.0 |
80 |
|
55 |
55.0 - 63.0 |
80 |
|
63 |
63.0 - 69.0 |
80 |
|
69* |
69.0 - 76.0 |
90 |
NOTE
• " * " for non standard die sets
• Customized die sets are available
• Special voltage 110V, 208V, 240V, 415V are availbale

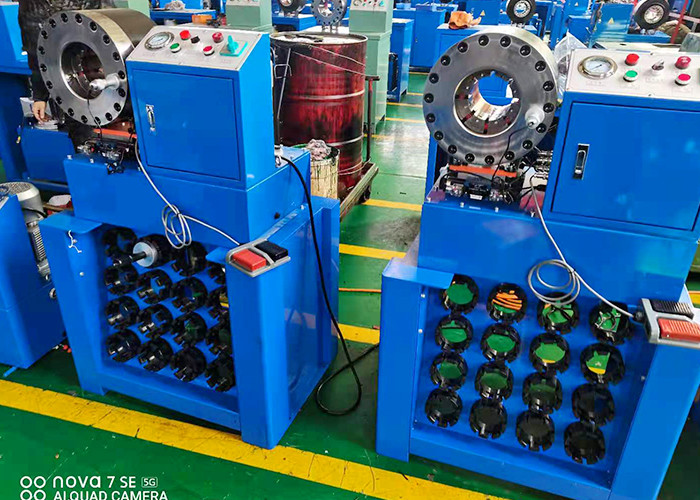

DETAILED IMAGES FOR 51KH CRIMPING MACHINE
► 10-16 DIE SETS
Die sets are with hardness 59-63HRC and surface layer 0.02mm, long use with high stability
► PRESSURE GAUGE FOR SHOWING SYSTEM PRESSURE
To make pressure crimping available, the user will see the realtime showing of the pressure
► PEDAL SWITCH
Foot pedal is standard supplied, the advantage is it can free the hand, so even for big size crimping, crimping will be easy
► OEM SERVICE
Color can be made upon customer request, different die sets with customized shapem size and length is available.
► APPLICATIONS FOR 51KH
Crimping machine can be used for excavator repair service, it can make hydraulic hose assembly, oil hose, high pressure or low pressure hoses, industrial pipes, stainless steel tubes, etc
