Large Diameter Hose Crimping Machine
,Steel Braided Hose Crimping Machine
,P20HP

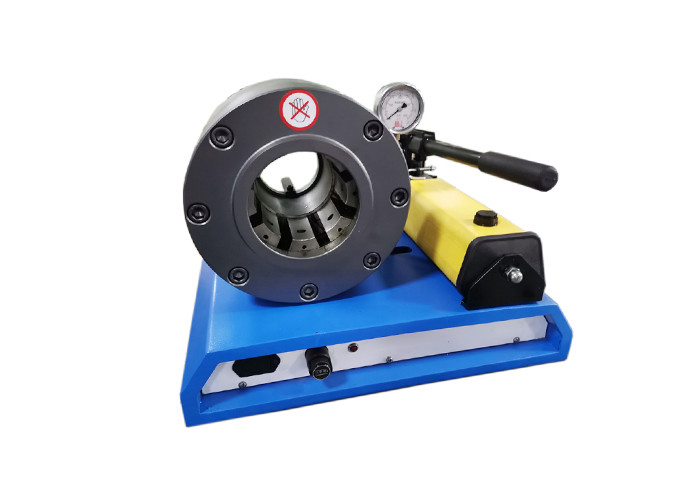

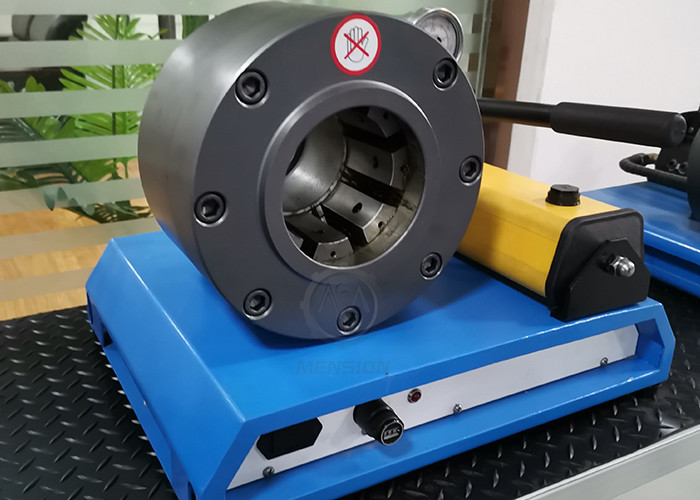

MANUAL HYDRAULIC HOSE CRIMPING MACHINE
MS-P20 HAND PUMP
DESCRIPTION
MS-P20HP is a manual hose crimping machine which can crimp hose up to 1 1/4 inch four high tensile stainless steel wire braided.
ADVANTAGES
1. Light weight;
2. High efficiency;
3. Chrome 40 high quality steel;
4. Pressure guage for showing system pressure.
TECHNICAL DATA
|
Model |
P20HP Manual Hose Crimper Machine |
|
Crimping Range |
12 - 57 (mm) |
|
Crimping Force |
200 (T) |
|
Hose Size |
1/4 - 1 1/4 (inch) |
|
Max. Opening |
28 (mm) |
|
Die Sets |
12 |
|
Die Set Type |
P20 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
Manual Pump |
|
Motor Power |
Manual Pump |
|
Length |
550 (mm) |
|
Width |
520 (mm) |
|
Height |
400 (mm) |
|
Weight |
70 (KG) |
P20 CRIMPER MACHINE DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
55 |
|
8* |
8 - 10mm |
55 |
|
10* |
10 - 12mm |
55 |
|
12 |
12 - 15mm |
55 |
|
15 |
15 - 18mm |
55 |
|
18 |
18 - 21mm |
55 |
|
21 |
21 - 24mm |
55 |
|
24 |
24 - 27mm |
70 |
|
27 |
27 - 30mm |
70 |
|
30 |
30 - 36mm |
70 |
|
33 |
33 - 36mm |
75 |
| 36 | 36 - 39mm | 75 |
| 39 | 39 - 45mm | 90 |
| 45 | 45 - 48mm | 90 |
| 48 | 48 - 57mm | 90 |
NOTE
- * for non standard die sets;
- Customized die sets are available;
- Max. opening is the stroke between die sets fully closed and fully opened.
OPTIONAL
- Quick Change Tool
- Quick Change Die Set Rack;
- UC control;
-
CReliable quality, easy to use, a great helper for starting a business.
-
GThose who open a truck repair shop usually apply pressure to the brake oil pipe and hydraulic oil pipe of the truck. The manual version has sufficient pressure and the joint is tightly pressed. The truck runs long distances without oil leakage, which is recognized by the driver. The machine is durable and can be used in stores, as well as in places without electricity outdoors
-
2As a shop specializing in precision machinery, we have exceptionally high precision requirements for crimping machines. This equipment features adjustable crimping stroke with minimal error, ensuring oil-free connections after crimping. Even beginners can quickly learn—just 30 minutes of training enables them to operate it independently
