Portable Hydraulic Hose Crimper Tube Crimping Machine P20 Finn Power P32 Manual

  • Portable Hydraulic Hose Crimper Tube Crimping Machine P20 Finn Power P32 Manual
  • Portable Hydraulic Hose Crimper Tube Crimping Machine P20 Finn Power P32 Manual
  • Portable Hydraulic Hose Crimper Tube Crimping Machine P20 Finn Power P32 Manual
Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number P20
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 64mm Hose Size 1/4'' - 2''
Die Sets 10 Sets Color Blue Or Customized
Max. Opening 25mm Crimping Force 640T
Product P20 Hose Pressing Machine Application Workshop
Voltage 380V Frequency 50HZ
Size 630*450*600mm Weight 200Kg
High Light

CE Portable Hydraulic Hose Crimping Machine

,

Blue Portable Hydraulic Hose Crimper

,

P20 Hose Pressing Machine
Leave a Message
Product Description



Portable Hydraulic Hose Crimping Machine Manual Steel Pipe Swaging Machine



PORATBLE MANUAL ELECTRIC HOSE CRIMPER P20

DESCRIPTION



P20 portable pipe pressing tool support to crimp all kinds of hydraulic hose assembly from 1/4 inch to 2 inch, such as straight 45 degree and 90 degree BSP, JIC, JIS, ORFS, Metric fitting and ferrule with rubber hose. Also it can crimp air conditioner hose, tractor hose, automotive clutch hose, wires and cables.



P20 hose crimper is with patented design which has small compact size. It can be easily mounted on a platform which will be more confortable for the operator.



ADVANTAGES



1). Energy saving and environmental friendly;

2). Wide application filed for hose, pipe and cable crimping;

3). High accuracy with advanced diameter control dial;

4). Long warranty time - 3 years quality assurance.



TECHNICAL DATA



Model

P20 Hose Crimp Machine

Crimping Range

14 - 64 (mm)

Crimping Force

640 (T)

Hose Size

1/4'' - 2'' (inch)

Max. Opening

25 (mm)

Die Sets

10

Die Set Type

P20

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

MS

Standard Voltage

220 (V)

Motor Power

3 (KW)

Length

630 (mm)

Width

450 (mm)

Height

600 (mm)

Weight

200 (KG)

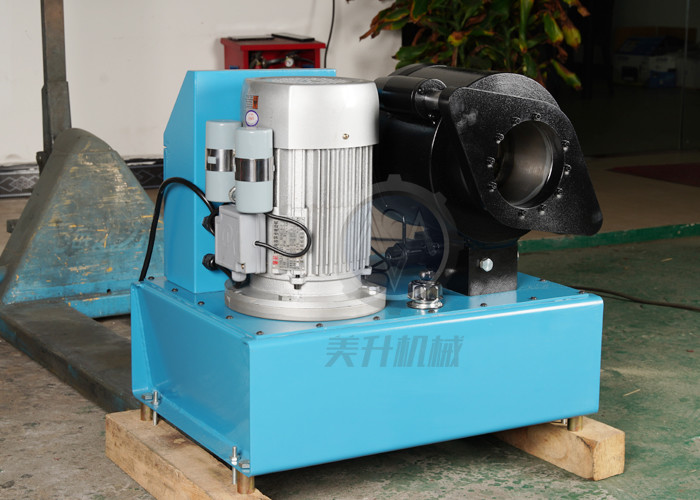

Portable Hydraulic Hose Crimper Tube Crimping Machine P20 Finn Power P32 Manual 0



P20 HOSE CRIMPER MACHINE DIE SETS



Die No.

Crimping Range

 Length

6*

6 - 8mm

 35

8*

8 - 10mm

 35

10*

10 - 12mm

 35

12*

12 - 14mm

 35

14

14 - 16mm

 60

16

16 - 20mm

 60

20

20 - 22mm

 60

22

22 - 26mm

 60

26

26 - 30mm

 60

30

30 - 38mm

 70

38

38 - 46mm

 70

46

46 - 54mm

 80

54

54 - 64mm

 80

64

64 - 69mm

 80

69*

69 - 76mm

 100



NOTE



1) Customized crimping die sets are available;

2) Special voltage 110V, 208V, 240V, 415V are availbale;

3) * for non standard die sets.



OPTIONAL ACCESSORIES



1) Quick Die Change Tool;

2) Die Set Rack/ Machine Stand;

3) UC/CNC Control;

4) Foot Pedal Switch;

5) Pressure Gauge;

6) Normal Stand.





► APPLICATIONS FOR P20 HOSE SWAGING MACHINE

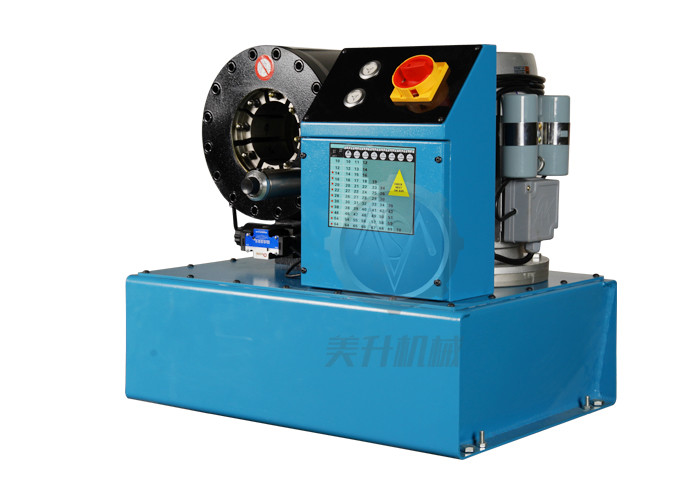

Portable Hydraulic Hose Crimper Tube Crimping Machine P20 Finn Power P32 Manual 1
