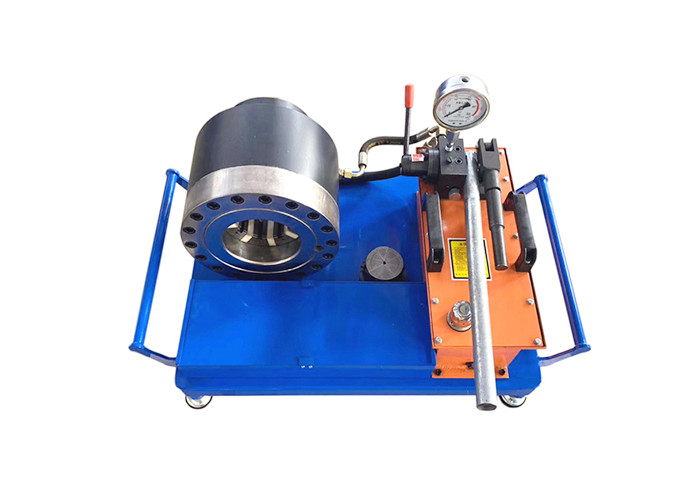

HAND HYDRAULIC HOSE CRIMPING MACHINE MS-51M
DESCRIPTION
MS-51M is a manual operate hose crimper with no electric supply. It is the ideal choice for the place where there is no power supply. With 10 die sets, it can crimp hose from 1/4 inch to 2 inch 4SH.
MAIN FEATURES
1) Forged crimping clylinder, high hardness;
2) Pressure Gauge, system shown clearly during crimping;
3) Human design, easy to operate even for new user;
4) Die set box to enable a safe installing.
TECHNICAL DATA
|
Model |
MS-51M Hose Crimping Machine |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
300 (T) |
|
Hose Size |
1/4 - 2 (inch) |
|
Max. Opening |
30 (mm) |
|
Die Sets |
10 |
|
Die Set Type |
51 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.05 (mm) |
|
Control |
MS |
|
Standard Voltage |
Hand Pump |
|
Motor Power |
Manual Crimping |
|
Length |
980 (mm) |
|
Width |
600 (mm) |
|
Height |
510 (mm) |
|
Weight |
200 (KG) |
51 CRIMPING MACHINE DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8 mm |
35 |
|
8* |
8 - 10 mm |
35 |
|
10* |
10 - 12 mm |
35 |
|
12* |
12 - 15 mm |
35 |
|
15 |
15 - 19 mm |
60 |
|
19 |
19 - 23 mm |
60 |
|
23 |
23 - 26 mm |
60 |
|
26 |
26 - 31 mm |
60 |
|
31 |
31 - 36 mm |
70 |
|
36 |
36 - 41 mm |
70 |
|
41 |
41 - 47 mm |
70 |
|
47 |
47 - 55 mm |
80 |
|
55 |
55 - 63 mm |
80 |
|
63 |
63 - 69 mm |
80 |
|
69* |
69 - 76 mm |
100 |
NOTE
• * for non standard die sets;
• Customized die sets are available which has different crimping size;
OPTIONAL
• Quick Change Tool
• Quick Change Die Set Rack;
• Electric Drive;
• UC control

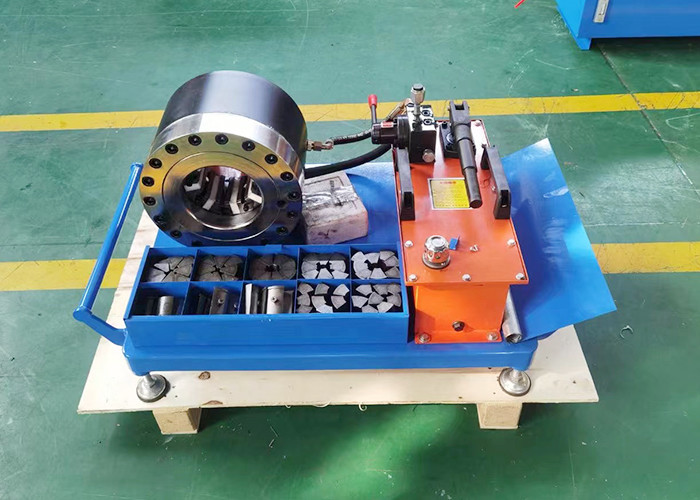

► DIE SETS
10 sets with hardness 59-63HRC, high quality raw material. Die sets install on machine side
► PRESSURE GAUGE
High quality high pressure gauge, shock resistant, stable configuration
► OEM SERVICE AVAILABLE
Customized color and Customized outlook for hose crimping machine.
► SAMPLES SHOW
Manual hose crimping machine can be used for hydraulic hose assmebly crimping, stainless steel tube
swaging, low pressure hose crimping, cable or wires jointing.
-
CReliable quality, easy to use, a great helper for starting a business.
-
GThose who open a truck repair shop usually apply pressure to the brake oil pipe and hydraulic oil pipe of the truck. The manual version has sufficient pressure and the joint is tightly pressed. The truck runs long distances without oil leakage, which is recognized by the driver. The machine is durable and can be used in stores, as well as in places without electricity outdoors
-
2As a shop specializing in precision machinery, we have exceptionally high precision requirements for crimping machines. This equipment features adjustable crimping stroke with minimal error, ensuring oil-free connections after crimping. Even beginners can quickly learn—just 30 minutes of training enables them to operate it independently
