12V Hydraulic Hose Crimper 24V Hyd Hose Crimping Machine P32CS

Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-P32CS
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 1/4 - 2.5inch
Die Sets 13 Color Blue
Max. Opening 31mm Crimping Force 280T
Product P32CS Hose Crimper Application Service
System Pressure 31.5Mpa Power 2.2KW
Size 630*540*420mm Weight 150Kg
High Light

Car 12V Hydraulic Hose Crimper

,

High Configuration 12V Hydraulic Hose Crimper

,

24V Hose Crimping Machine

Leave a Message
Product Description

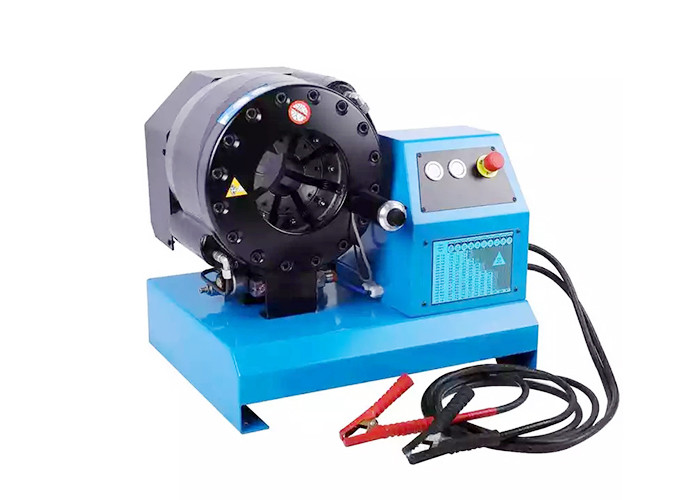

12V HYDRAULIC HOSE CRIMPER P32CS


DESCRIPTION


MS-P32CS hose crimping machine is with simple design and compact in structure, light weight, easy to operate. It is ideal choice for crimping onsite on a mobile van/car. Special slide device will help the user move it more easily.

ADVANTAGES


►  Use the 24V battery as a power, crimping force can be reach 2800 KN
►  The stable quality crimping performance find expression in high pressure
►  The most popular applications for these suitable are in repair shop and industrial maintenance unit


TECHNICAL DATA



Model

MS-P32CS Pipe Crimping Machine

Crimping Range

14 - 87 (mm)

Crimping Force

280 (T)

Hose Size

1/4 - 2.5 (inch)

Max. Opening

31 (mm)

Die Sets

13

Die Set Type

P32

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

MS

Standard Voltage

24 (V)

Motor Power

2.2 (KW)

Length

630 (mm)

Width

540 (mm)

Height

420 (mm)

Weight

150 (KG)


12V Hydraulic Hose Crimper 24V Hyd Hose Crimping Machine P32CS 0


P32 HYDRAULIC CRIMPER DIE SETS



Die No.

Crimping Range

Length

6*

6 ... 8mm

55

8*

8 ... 10mm

55

10*

10 ... 12mm

55

12*

12 ... 14mm

55

14

14 ... 16mm

55

16

16 ... 19mm

55

19

19 ... 22mm

55

22

22 ... 26mm

70

26

26 ... 30mm

70

30

30 ... 34mm

70

34

34 ... 39mm

75

39

39 ... 45mm

75

45

45 ... 51mm

90

51

51 ... 57mm

90

57

57 ... 63mm

100

63

63 ... 69mm

110

69

69 ... 76mm

110
74* 74 ... 80mm 110
78* 78 ... 87mm 110


NOTE


• " * " for non standard die sets
• Customized die sets with different shape size ia available
• Voltage 12V is available

OPTIONAL


• Quick Change Tool
• Quick Change Die Set Rack
• Car installing unit

► FORGED CYLINDER


One piece structure, prevent oil leackage problem, save oil transfer time, increase productivity


12V Hydraulic Hose Crimper 24V Hyd Hose Crimping Machine P32CS 1

► MICROMETER


P32CS is with high accuracy dial, 0.01mm.


12V Hydraulic Hose Crimper 24V Hyd Hose Crimping Machine P32CS 2

► DIE SET REFERENCE SHEET


This sheet tells you how to choose proper die set for different crimping size


12V Hydraulic Hose Crimper 24V Hyd Hose Crimping Machine P32CS 3

► RAW MATERIALS


45 Steel, Chrome40, Cr12Mov Steel for crimping cylinder, die sets


12V Hydraulic Hose Crimper 24V Hyd Hose Crimping Machine P32CS 4

► HYDRAULIC OIL PUMP


Big hydraulic pump with high flue and power, famous Italy brand


12V Hydraulic Hose Crimper 24V Hyd Hose Crimping Machine P32CS 5

► FAMOUS HYDRAULIC VALVE


Germany REXROTH hydraulic valve system, low maintenance cost


12V Hydraulic Hose Crimper 24V Hyd Hose Crimping Machine P32CS 6

► WIDE USAGE

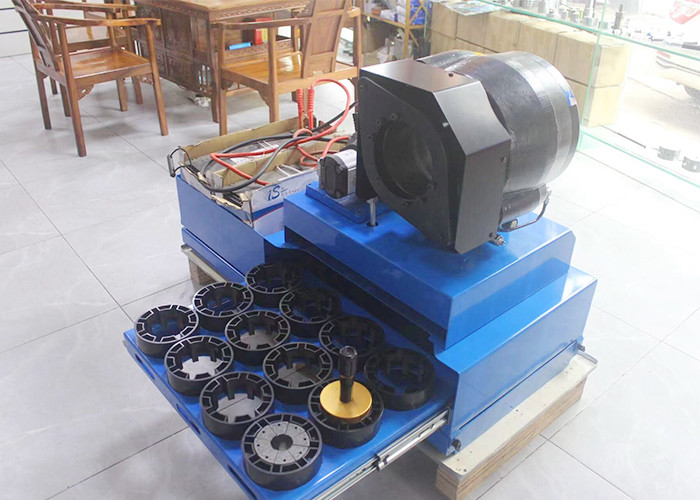

P32CS Crimping machine can be used in a mobile van which can supply 12V/24V power.
For high pressure oil rubber hose assmbly crimping, low pressure water or air hose pressing, steel tube
swaging, wire rope pressing, lock device making, etc.
