110V 60HZ Pressure DX68 Hose Crimping Machine E38 Hydraulic Fitting Press

Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-E38
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 1/4 - 2inch
Die Sets 10 Oil Tank 50L
Voltage 220V 50HZ Power 3KW
Color Blue Size 630*450*600mm
Weight 200Kg Hydraulic Oil T46
High Light

220V DX68 Hose Crimping Machine

,

50HZ DX68 Hose Crimping Machine

,

E38 Hydraulic Hose Press Machine

Leave a Message
Product Description

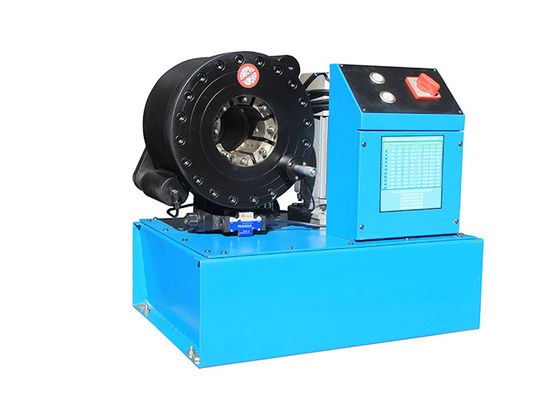

HIGH PRESSURE DX HOSE CRIMPING MACHINE MS-E38


DESCRIPTION



MS-E38 is the most favored model among MS hose crimping machines for its competitive price and high configuration. It is deisgned based on P32, with advanced oil transfer technology.



ADVANTAGES



1) Ferrule get same crimping force, so crimping with no taper;

2) Hydraulic control for back movement, more accurate;

3) Hose crimping reference sheet to teach the size which size hose request;

4) Copper wire aluminium shell motor, fast heat releasing.



TECHNICAL DATA



Model

MS-E38 Hose Crimping Machine

Crimping Range

14 - 87 (mm)

Crimping Force

640 (T)

Hose Size

1/4 - 2 (inch) 4SH

Max. Opening

31 (mm)

Die Sets

10

Die Set Type

38

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

MS

Standard Voltage

110 (V)  60 (HZ)

Motor Power

3 (KW)

Length

630 (mm)

Width

450 (mm)

Height

600 (mm)

Weight

200 (KG)

Hydraulic Oil 50 (L)



110V 60HZ Pressure DX68 Hose Crimping Machine E38 Hydraulic Fitting Press 0

38 HOSE CRIMPER DIE SETS



Die No.

Crimping Range

Length

6*

6 - 8 mm

35

8*

8 - 10 mm

35

10*

10 - 12 mm

35

12*

12 - 14 mm

35

14

14 - 16 mm

60

16

16 - 20 mm

60

20

20 - 22 mm

60

22

22 - 26 mm

60

26

26 - 30 mm

70

30

30 - 38 mm

70

38

38 - 46 mm

70

46

46 - 54 mm

80

54

54 - 64 mm

80

64

64 - 69 mm

80

69*

69 - 76 mm

100



NOTE



1) Customized die sets are available with different size or shape;

2) Special voltage such as 110V, 208V, 240V, 415V (60HZ) are availbale;

3) Foot pedal is available to make the hands free;

4) * for non standard die sets.



► HUMAN DESIGN DIE SETS



10 die sets from 15mm to 64mm, capable of crimping hydraulic hose from 6mm to 51mm, industrial hose from 10mm to 76mm.



110V 60HZ Pressure DX68 Hose Crimping Machine E38 Hydraulic Fitting Press 1



► ADVANCED CYLINDER MAKING TECHNOLOGY



Small cylinder is in the outside of the main cylinder, easy for maintenance.



110V 60HZ Pressure DX68 Hose Crimping Machine E38 Hydraulic Fitting Press 2



► COPPER WIRE ALUMINIUM MOTOR



Motor has good heat dissipation performance



110V 60HZ Pressure DX68 Hose Crimping Machine E38 Hydraulic Fitting Press 3



► BIG OIL INSERT HOLE



Convenient to add oil in the oil tank



110V 60HZ Pressure DX68 Hose Crimping Machine E38 Hydraulic Fitting Press 4



► SAMPLE SHOW



Crimping machine can be used for high pressure hydraulic stainless steel braided hose, low pressure air or water hose, air suspension, brake hose, wire cable, ropes, stainless steel or iron tubes, etc.



110V 60HZ Pressure DX68 Hose Crimping Machine E38 Hydraulic Fitting Press 5



► FAST DELIVERY



Crimping machines can be delivered within 72 hour after receiving the payment.
