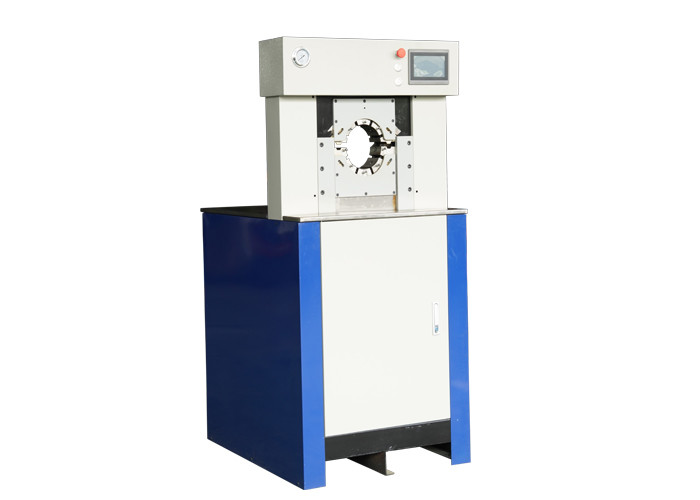

Large Range AC Hose Crimper Machine Air Conditioning Hose Pressing

  • Large Range AC Hose Crimper Machine Air Conditioning Hose Pressing
  • Large Range AC Hose Crimper Machine Air Conditioning Hose Pressing
Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-P180
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 127mm Hose Size 1/4 - 4inch
Die Sets 27 Color Grey And Blue
Max. Opening 80mm Crimping Force 980T
System Pressure 31.5Mpa Power 6.5KW
Size 780*1050*1650mm Weight 1520Kg
Highlight

Large Range AC Hose Crimping Machine

,

UC AC Hose Crimping Machine

,

P180 Air Conditioning Hose Crimper
Leave a Message
Product Description



BIG 4 INCH AC HOSE CRIMPING MACHINE MS-P180

DESCRIPTION



MS-P180 high pressure hydraulic hose crimper is designed to meet the increasing  need for a thin crimper with large power. Max hose size is 4 inch 6 spirals.



MAIN FEATURES



1) Micro computer conntrol, advance PLC system, high stability and productivity;

2) Thicken machine body, long service time;

3) Foot pedal frees both of your hand for big hose.



TECHNICAL DATA



Model

MS-P180 AC Hose Crimping Machine

Crimping Range

14 - 127 (mm)

Crimping Force

980 (T)

Hose Size

1/4 - 4 (inch)

Max. Opening

80 (mm)

Die Sets

27

Die Set Type

P32 P180

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

UC

Standard Voltage

380 (V)

Motor Power

3.75 (KW)

Length

780 (mm)

Width

1050 (mm)

Height

1650 (mm)

Weight

1520 (KG)



Large Range AC Hose Crimper Machine Air Conditioning Hose Pressing 0





P180 CRIMPER DIE SETS



Die No.

Crimping Range

 Length

6*

6 - 8 mm

 55

8*

8 - 10 mm

 55

10*

10 - 12 mm

 55

12*

12 - 14 mm

 55

14

14 - 16 mm

 55

16

16 - 19 mm

 55

19

19 - 22 mm

 55

22

22 - 26 mm

 55

26

26 - 30 mm

 55

30

30 - 34 mm

 70

34

34 - 39 mm

 70

39

39 - 45 mm

 70

45

45 - 51 mm

 75

51

51 - 57 mm

 75

57

57 - 63 mm

 90

63

63 - 69 mm

 90

69

69 - 74 mm

 100
74 74 - 80 mm 110
78 78 - 87 mm 110
84 84 - 92 mm 110
92 92 - 100 mm 120
100 100 - 108 mm 120
108 108 - 116 mm 120
116 116 - 126 mm 120
126 126 - 136 mm 120
136 136 - 146 mm 120
146 146 - 156 mm 120
156 156 - 166 mm 120
166 166 - 178 mm 120
178 178 - 190 mm 120
190 190 - 202 mm 120



NOTE



- * for non standard die sets;

- Customized die sets are available;

- Special voltage 110V, 208V, 240V, 415V are availbale;



► THIN CRIMPING CYLINDER



Super thin crimping head enables the crimper press hose with big elbow fitting



Large Range AC Hose Crimper Machine Air Conditioning Hose Pressing 1



► ELECTRONIC SYSTEM



Thicken wire cables, high quality switch and convertor



Large Range AC Hose Crimper Machine Air Conditioning Hose Pressing 2



► PRESSURE GAUGE



Standard with pressure gauge, make pressure crimping possible



Large Range AC Hose Crimper Machine Air Conditioning Hose Pressing 3



BIG PRODUCTIVITY



Large Range AC Hose Crimper Machine Air Conditioning Hose Pressing 4



► APPLICATION FIELD



Large Range AC Hose Crimper Machine Air Conditioning Hose Pressing 5
