Hydraulic Hose Crimping Machine Finpower Crimper Fire Hose Crimping Tool

  • Hydraulic Hose Crimping Machine Finpower Crimper Fire Hose Crimping Tool
  • Hydraulic Hose Crimping Machine Finpower Crimper Fire Hose Crimping Tool
  • Hydraulic Hose Crimping Machine Finpower Crimper Fire Hose Crimping Tool
Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-P180
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 127mm Hose Size 1/4 - 4inch
Die Sets 27 Color Grey And Blue
Max. Opening 80mm Crimping Force 980T
Control PLC Power 6.5KW
Size 780*1050*1650mm Weight 1520Kg
Highlight

P180 Hydraulic Hose Crimping Machine

,

6.5KW Hydraulic Hose Crimping Machine

,

6.5KW Hydraulic Pipe Crimper
Leave a Message
Product Description

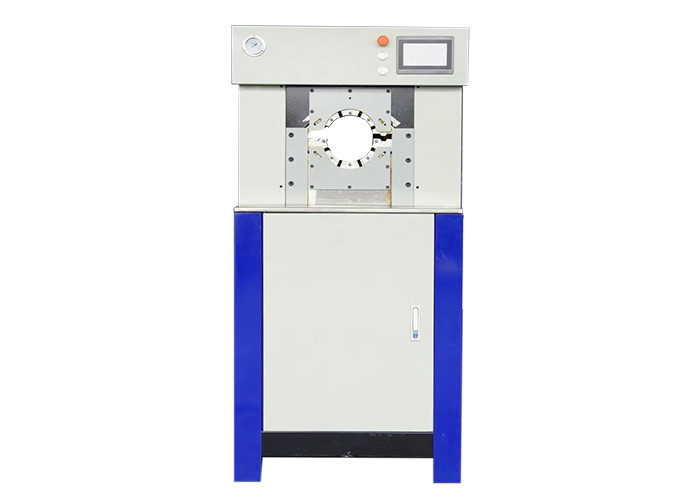

HYDRAULIC HOSE CRIMPING MACHINE P180

DESCRIPTION


MS-P180 is a crimping machine specially for elbow hose fittings making. It can crimp not only the high pressure hydraulic hose but the industrial pipes with large diameter.

ADVANTAGES


1) Micro computer conntrol, advance PLC system, high stability and productivity
2) Pressure guage to show the system pressure during working
3) Large cylinder, generate big crimping force


TECHNICAL DATA



Model

MS-P180 Hydraulic Hose Crimper

Crimping Range

14 - 127 (mm)

Crimping Force

980 (T)

Hose Range

1/4 - 4 (inch)

Max. Opening

80 (mm)

Die Sets

27

Die Set Type

P32 P180

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

UC

Standard Voltage

380 (V)

Motor Power

6.5 (KW)

Length

780 (mm)

Width

1050 (mm)

Height

1650 (mm)

Net Weight

1520 (KG)


Hydraulic Hose Crimping Machine Finpower Crimper Fire Hose Crimping Tool 0


P180 CRIMPER STANDARD DIE SETS



Die No.

Crimping Range

6*

6 - 8mm

8*

8 - 10mm

10*

10 - 12mm

12*

12 - 14mm

14

14 - 16mm

16

16 - 19mm

19

19 - 22mm

22

22 - 26mm

26

26 - 30mm

30

30 - 34mm

34

34 - 39mm

39

39 - 45mm

45

45 - 51mm

51

51 - 57mm

57

57 - 63mm

63

63 - 69mm

69

69 - 74mm
74 74 - 80mm
78 78 - 87mm
84 84 - 92mm
92 92 - 100mm
100 100 - 108mm
108 108 - 116mm
116 116 - 126mm
126 126 - 136mm
136 136 - 146mm
146 146 - 156mm
156 156 - 166mm
166 166 - 178mm
178 178 - 190mm
190 190 - 202mm


NOTE


- " * " for non standard die sets
- Customized die sets with different size and shape are available
- Special voltage like 110V, 208V, 240V, 415V are availbale

► FAMOUS PLC SYSTEM


PLC system with high stability, low maintemance cost
Hydraulic Hose Crimping Machine Finpower Crimper Fire Hose Crimping Tool 1

► THICKEN STEEL BODY


High hardness with long service time
Hydraulic Hose Crimping Machine Finpower Crimper Fire Hose Crimping Tool 2

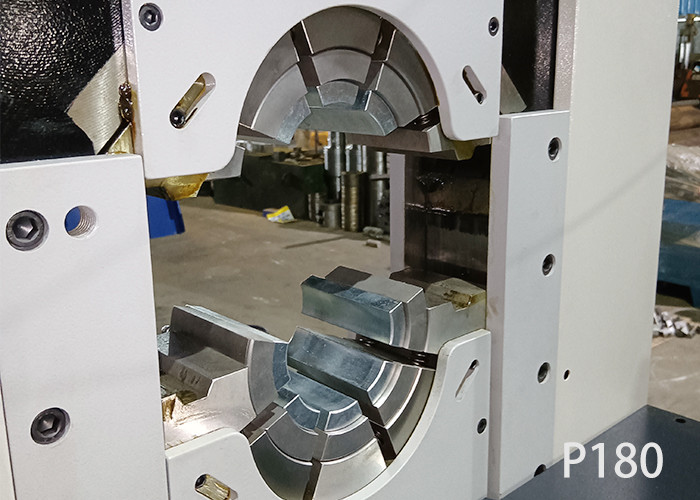

► DIE SETS WITH HIGH HARDNESS


Speical mold material Cr12 for die sets, hardness 59-63HRC, long life
Hydraulic Hose Crimping Machine Finpower Crimper Fire Hose Crimping Tool 3

► LARGE PRODUCTIVITY FOR HOSE CRIMPING MACHINE


Hydraulic Hose Crimping Machine Finpower Crimper Fire Hose Crimping Tool 4

► APPLICATION FIELD


Hydraulic Hose Crimping Machine Finpower Crimper Fire Hose Crimping Tool 5
