Brake Low Pressure Hose Swaging Machine E130 Mobile Van AC Cable Crimping Tool

Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-E130
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 2inch 4SH
Die Sets 10 Color Blue
Max. Opening 25mm Crimping Force 640T
Product Name Brake Hose Crimping Machine Application Workshop
System Pressure 31.5Mpa Power 3KW
Size 630*450*560mm Weight 190Kg
High Light

Brake Low Pressure Hose Crimping Machine

,

E130 low pressure hose crimping machine

,

E130 car ac hose crimping tool

Leave a Message
Product Description



BRAKE HOSE CRIMPING MACHINE MS-E130


DESCRIPTION



MS-E130 brake hose crimping machine is a modern model with FINN POWER design. Also it can press high pressure hydraulic rubber hose up to 2 inch.



ADVANTAGES



1) Big crimping capacity,

2) Self-design block connect valve system,

3) Quick opening and closing,

4) Human die set choosing reference sheet,

5) Stable performance even after years of service.



TECHNICAL DATA



Model

MS-E130 Brake Hose Crimping Machine

Crimping Range

14 - 87 (mm)

Crimping Force

640 (T)

Hose Size

1/4 - 2 (inch)

Max. Opening

25 (mm)

Die Sets

10

Die Set Type

130

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

3 (KW)

Length

630 (mm)

Width

450 (mm)

Height

560 (mm)

Weight

190 (KG)

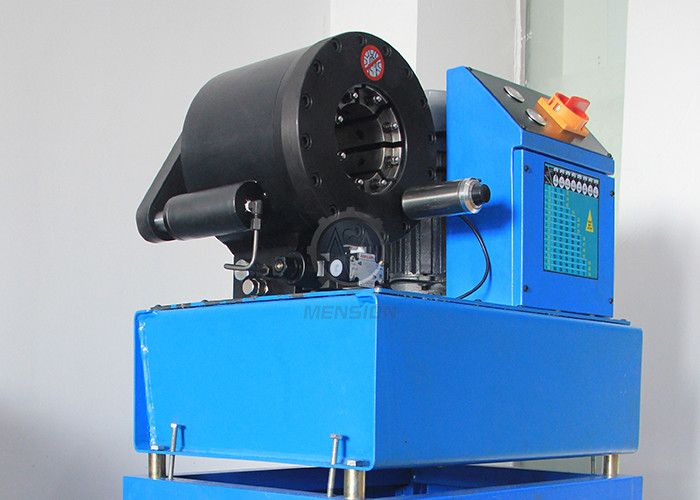

Brake Low Pressure Hose Swaging Machine E130 Mobile Van AC Cable Crimping Tool 0

130 HOSE CRIMPER DIE SETS



Die No.

Crimping Range

Length

6*

6 - 8mm

35

8*

8 - 10mm

35

10*

10 - 12mm

35

12*

12 - 14mm

35

14

14 - 16mm

60

16

16 - 20mm

60

20

20 - 22mm

60

22

22 - 26mm

60

26

26 - 30mm

70

30

30 - 38mm

70

38

38 - 46mm

70

46

46 - 54mm

80

54

54 - 64mm

80

64

64 - 69mm

80

69*

69 - 76mm

100



NOTE



1) Customized die sets are available;

2) Special voltage 110V, 208V, 240V, 415V are availbale;

3) * for non standard die sets.



OPTIONAL



1) Quick Change Tool

2) Quick Change Die Set Rack;

3) UC control;

4) Foot Pedal;

5) Pressure Gauge;

6) Normal Rack

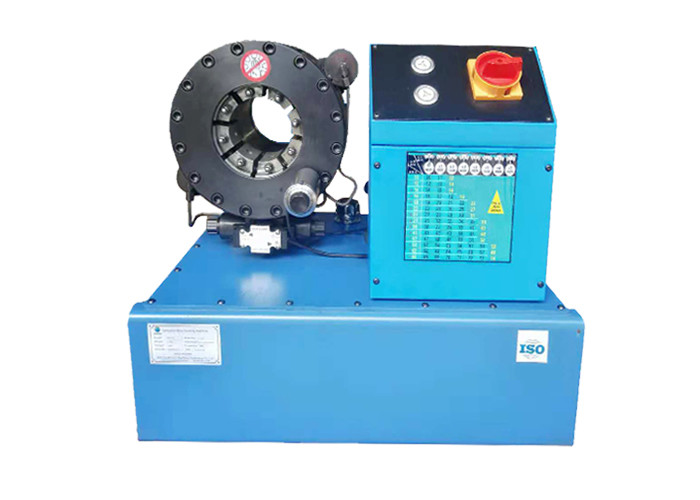

Brake Low Pressure Hose Swaging Machine E130 Mobile Van AC Cable Crimping Tool 1
