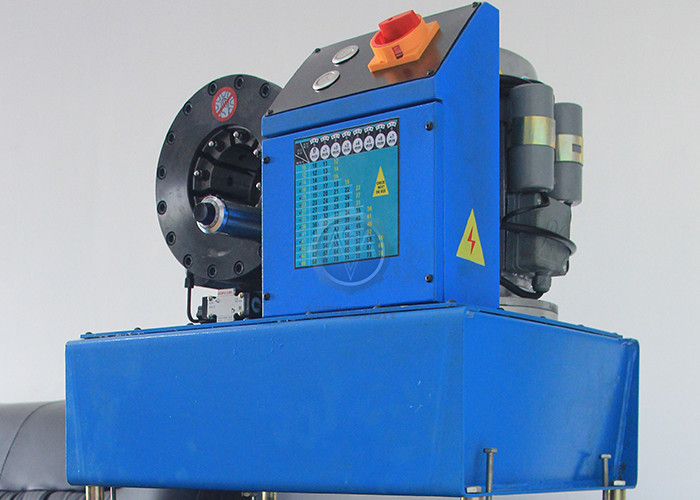

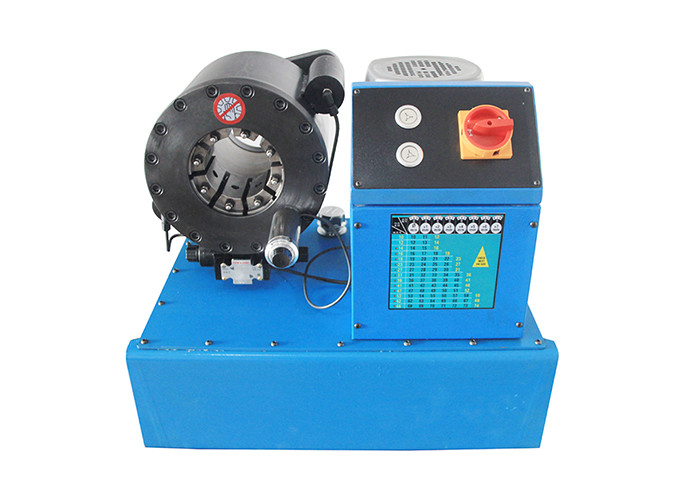

Low Pressure Hose Crimping Machine Hydraulic Hose Press Machine Finn Power P32 Manual

  • Low Pressure Hose Crimping Machine Hydraulic Hose Press Machine Finn Power P32 Manual
  • Low Pressure Hose Crimping Machine Hydraulic Hose Press Machine Finn Power P32 Manual
  • Low Pressure Hose Crimping Machine Hydraulic Hose Press Machine Finn Power P32 Manual
Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-E130
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 2inch 4SH
Die Sets 10 Color Blue
Max. Opening 25mm Crimping Force 640T
Product Name Hose Pressing Machine Application Workshop
System Pressure 31.5Mpa Power 3KW
Size 630*450*560mm Weight 190Kg
Highlight

Excavator Hydraulic Hose Press Machine

,

Low Pressure Hydraulic Hose Press Machine

,

E130 Hose Press Machine
Leave a Message
Product Description



EXCAVATOR HOSE PRESSING MACHINE MS-E130

DESCRIPTION



MS-E130 is a hose crimping machine with big power which can crimp hose up to 2 inch four stainless steel braided. It has high accuracy with FINN POWER micrometer.



ADVANTAGES



1) Mini structure with huge force,

2) World advanced design for oil channel,

3) Easy working panel,

4) Double bevel die based,

5) High hardness for cylinder and crimping unit.



TECHNICAL DATA



Model

MS-130 Hose Pressing Machine

Crimping Range

14 - 87 (mm)

Crimping Force

640 (T)

Hose Size

1/4 - 2 (inch)

Max. Opening

25 (mm)

Die Sets

10

Die Set Type

130

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

3 (KW)

Length

630 (mm)

Width

450 (mm)

Height

560 (mm)

Weight

190 (KG)



Low Pressure Hose Crimping Machine Hydraulic Hose Press Machine Finn Power P32 Manual 0

130 SERIES CRIMPER DIE SETS



Die No.

Crimping Range

 Length

6*

6 - 8mm

 35

8*

8 - 10mm

 35

10*

10 - 12mm

 35

12*

12 - 14mm

 35

14

14 - 16mm

 60

16

16 - 20mm

 60

20

20 - 22mm

 60

22

22 - 26mm

 60

26

26 - 30mm

 70

30

30 - 38mm

 70

38

38 - 46mm

 70

46

46 - 54mm

 80

54

54 - 64mm

 80

64

64 - 69mm

 80

69*

69 - 76mm

 100



NOTE



1) Customized die sets are available;

2) Special voltage 110V, 208V, 240V, 415V are availbale;

3) * for non standard die sets.



OPTIONAL



1) Quick Change Tool

2) Quick Change Die Set Rack;

3) UC control;

4) Foot Pedal;

5) Pressure Gauge;

6) Normal Rack.



► DOUBLE CONICAL MASTER DIE, HIGH FORCE AND ACCURACY



Low Pressure Hose Crimping Machine Hydraulic Hose Press Machine Finn Power P32 Manual 1



► SPECIAL DIE SETS AVAILABLE WITH HARDNESS 58-63HRC



Low Pressure Hose Crimping Machine Hydraulic Hose Press Machine Finn Power P32 Manual 2



► DINGZING OIL SEAL KITS, ANTI WEAR AND LONG SERVING LIFE



Low Pressure Hose Crimping Machine Hydraulic Hose Press Machine Finn Power P32 Manual 3



► CONVENIENT OPERATE PANEL



Low Pressure Hose Crimping Machine Hydraulic Hose Press Machine Finn Power P32 Manual 4
