500T 3KW Hydraulic Hose Crimping Machine MS - 51 Advanced Technology

Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-51
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 1/4 - 2inch
Die Sets 10 Color Blue
Max. Opening 30mm Crimping Force 500T
System Pressure 31.5Mpa Power 3KW
Size 670*430*820mm Weight 260Kg
High Light

500T Hydraulic Hose Crimping Machine

,

3KW Hydraulic Hose Crimping Machine

,

MS-51 hydraulic hose machine

Leave a Message
Product Description

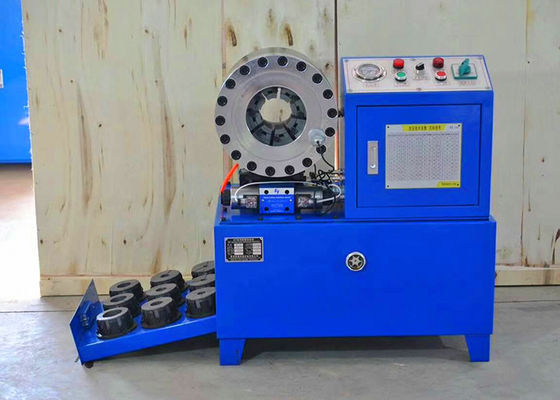

HYDRAULIC HOSE CRIMPING MACHINE MS-51 NEW DESIGN


DESCRIPTION



MS-51 is a famous domestic design hose crimper based on old type DX68/69 series. It has up to 500T crimping force, suitable for hose from 1/4 to 2 inch crimping (with standard die sets). It can be worked automatically or manually depends on different need. The hose crimping machine can be offered with wheels, easy for moving to any place that need.



MAIN FEATURES



1. Forged one piece crimping cylinder, high hardness and stability;

2. Multifunctional operate panel, two operate mode, easy to change;

3. The Pressure Gauge can show system pressure clearly;

4. A Foot pedal can make the hands free;

5. Operation lamp to let crimping more clearly.



TECHNICAL DATA



Model

MS-51 Hose Crimper Machine

Crimping Range

14 - 87 (mm)

Crimping Force

500 (T)

Hose Size

1/4 - 2 (inch)

Max. Opening

30 (mm)

Die Sets

10

Die Set Type

51

System Pressure

31.5 (Mpa)

Accuracy

0.05 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

3 (KW)

Length

670 (mm)

Width

430 (mm)

Height

820 (mm)

Weight

260 (KG)



500T 3KW Hydraulic Hose Crimping Machine MS - 51 Advanced Technology 0

51 CRIMPING MACHINE STANDARD DIE SETS



Die No.

Crimping Range

Length

6*

6 - 8mm

35

8*

8 - 10mm

35

10*

10 - 12mm

35

12*

12 - 15mm

35

15

15 - 19mm

60

19

19 - 23mm

60

23

23 - 26mm

60

26

26 - 31mm

60

31

31 - 36mm

70

36

36 - 41mm

70

41

41 - 47mm

70

47

47 - 55mm

80

55

55 - 63mm

80

63

63 - 69mm

80

69*

69 - 76mm

110



NOTE



- " * " for non standard die sets

- Special die sets are available based on need

- Special voltage 110V, 208V, 240V, 415V are availbale



OPTIONS



- Quick Change Tool

- Quick Change Die Set Rack





► MULTIFUNCTIONAL OPERATE PANEL



English version, easy change between automatic mode and manual mode

500T 3KW Hydraulic Hose Crimping Machine MS - 51 Advanced Technology 1



► HIGH ACCURATE MICROMETER



Easy to install, high stability and long service life. It can work with high precision.

500T 3KW Hydraulic Hose Crimping Machine MS - 51 Advanced Technology 2



► FOOT PEDAL



It is standard supplied, the advantage is it can free the hand, so even for big size crimping, crimping will be easy

500T 3KW Hydraulic Hose Crimping Machine MS - 51 Advanced Technology 3



► OEM AVAILABLE



We are manufacturer for hose crimping machines, OEM for machine appearance, die sets, voltage are available

500T 3KW Hydraulic Hose Crimping Machine MS - 51 Advanced Technology 4



► APPLICATIONS



The hose crimping machine is traditionally for crimping hose assembly, also a crimping machine can not only do rubber hose crimping, but can be used for quick jointing of other materials, like cables, low pressure water pipes, wires, ropes, automotive brake lines, etc.

500T 3KW Hydraulic Hose Crimping Machine MS - 51 Advanced Technology 5
