Specifications
Highlight:
Electric Power Mobile Hose Crimper
,Multi-Function Mobile Hose Crimper
,Multi-Function Hydraulic Hose Crimper
Crimping Range:
14 - 87mm
Hose Size:
1/4 - 2inch
Die Sets:
10
Color:
Blue
Max. Opening:
30mm
Crimping Force:
500T
Product Name:
Portable Hydraulic Hose Crimper
Application:
Workshop
System Pressure:
31.5Mpa
Power:
3KW
Size:
670*430*820mm
Weight:
260Kg
Key Attributes
Brand Name:
MENSION
Model Number:
MS-51
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description
Hydraulic Hose Crimping Tool Mobile Hose Crimper Hyd Hose Crimping Machine

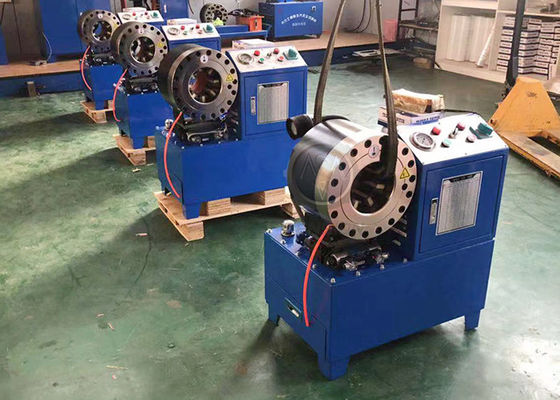

PORTABLE HYDRAULIC HOSE CRIMPER MS-51
DESCRIPTION
MS-51 portable hydraulic hose crimper is a multifunctional tool. It can make not only hydraulic high pressure stainless steel braided hoses, but is also capable of crimping low pressure industrial hoses, air and water hoses, cables and wires, and ropes for hanging goods.
MAIN FEATURES
- Forged crimping head with high hardness and excellent anti-wear performance
- Double crimping mode selection based on different needs
- Foot pedal for hands-free operation during large size crimping
- Working lamp that can be positioned anywhere on the machine
- Crimping diameter reference sheet for training new users
TECHNICAL DATA
| Model | MS-51 Portable Hydraulic Hose Crimper |
|---|---|
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 500 (T) |
| Hose Size | 1/4 - 2 (inch) |
| Max. Opening | 30 (mm) |
| Die Sets | 10 |
| Die Set Type | 51 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.05 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) / 380 (V) |
| Motor Power | 3 (KW) |
| Length | 670 (mm) |
| Width | 430 (mm) |
| Height | 820 (mm) |
| Weight | 260 (KG) |
51 SERIES CRIMPER DIE SETS
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8mm | 35 |
| 8* | 8 - 10mm | 35 |
| 10* | 10 - 12mm | 35 |
| 12* | 12 - 15mm | 35 |
| 15 | 15 - 19mm | 60 |
| 19 | 19 - 23mm | 60 |
| 23 | 23 - 26mm | 60 |
| 26 | 26 - 31mm | 60 |
| 31 | 31 - 36mm | 70 |
| 36 | 36 - 41mm | 70 |
| 41 | 41 - 47mm | 70 |
| 47 | 47 - 55mm | 80 |
| 55 | 55 - 63mm | 80 |
| 63 | 63 - 69mm | 80 |
| 69* | 69 - 76mm | 100 |
NOTE
- * indicates non-standard die sets
- Customized die sets are available
- Special voltages 110V, 208V, 240V, 415V are available
OPTIONAL ACCESSORIES
- Quick Change Tool
- Quick Change Die Set Rack
