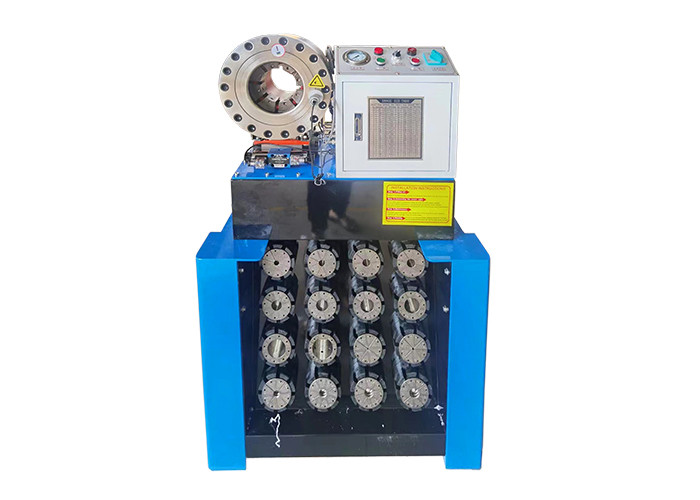

HYDRAULIC HOSE CRIMPING MACHINE USED MS-51KH
DESCRIPTION
MS-51KH hose pressing machine has equipped with multi fucntional crimping mode, fast crimp and good quality. This machine is high crimping accuracy and easy to operate. It is mainly used for crimping processing for high pressure hydraulic hose assembly in the mechanical engineering and can also be used for crimping steel pipes, especially large pipes and irregular shape pipes.
MAIN FEATURES
1. Germany technology with forged crimping head;
2. Strong die sets connections with master die;
3. Hydraulic valve working with high stability, no shaking and blocking;
4. Foot pedal free both the hands for taking big hose;
5. Operate panel with multifucntion but simple for working.
TECHNICAL DATA
|
Model |
MS-51KH Used Hydraulic Hose Crimping Machine |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
500 (T) |
|
Hose Size |
1/4 - 2 (inch) |
|
Max. Opening |
30 (mm) |
|
Die Sets |
10 |
|
Die Set Type |
51 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.05 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
3 (KW) |
|
Length |
670 (mm) |
|
Width |
430 (mm) |
|
Height |
1520 (mm) |
|
Weight |
310 (KG) |

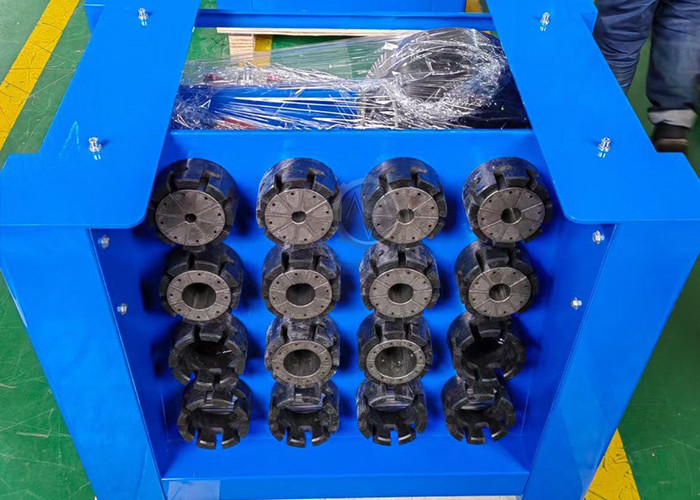

51 HOSE CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
35 |
|
8* |
8 - 10mm |
35 |
|
10* |
10 - 12mm |
35 |
|
12* |
12 - 15mm |
35 |
|
15 |
15 - 19mm |
60 |
|
19 |
19 - 23mm |
60 |
|
23 |
23 - 26mm |
60 |
|
26 |
26 - 31mm |
60 |
|
31 |
31 - 36mm |
70 |
|
36 |
36 - 41mm |
70 |
|
41 |
41 - 47mm |
70 |
|
47 |
47 - 55mm |
80 |
|
55 |
55 - 63mm |
80 |
|
63 |
63 - 69mm |
80 |
|
69* |
69 - 76mm |
100 |
NOTE
- * for non standard die sets;
- Customized die sets are available;
- Special voltage 110V, 208V, 240V, 415V are availbale;
-
