Specifications
Highlight:
Machinery Repair AC Hose Crimping Machine
,51CG AC Hose Crimping Machine
,51CG Air Conditioner Hose Crimper
Crimping Range:
14 - 87mm
Hose Size:
1/4 - 2inch
Die Sets:
10
Color:
Blue
Max. Opening:
30mm
Crimping Force:
500T
Product Name:
51CG AC Hose Crimping Machine
Application:
Workshop
System Pressure:
31.5Mpa
Power:
3KW
Size:
800*640*1300mm
Weight:
320Kg
Key Attributes
Brand Name:
MENSION
Model Number:
MS-51CG
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description
Machinery Repair AC Cable Crimping Machine Rubber Hose Assembly Fabricating

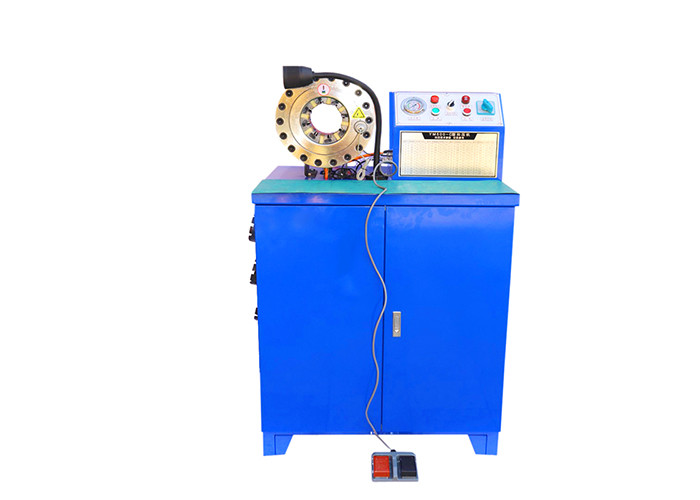

REPAIR AC HOSE CRIMPING MACHINE MS-51CG
DESCRIPTION
MS-51CG air conditioner hose crimper machine is famous for its large productivity. It is capable of crimping high pressure hydraulic oil hose on construction and engineering machine, and also swaging the metal tube size, pressing the wire ropes for safety use.
MAIN ADVANTAGES
- One piece design cylinder head, prevent pressure lose
- Foot pedal makes the crimping work more flexible
- Working lamp, improve the safety level
- Die sets with high temperature heat processing, high hardness
- Simple structure and design, easy maintenance and low cost
TECHNICAL DATA
| Model | MS-51CG AC Hose Crimping Machine |
|---|---|
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 500 (T) |
| Hose Size | 1/4 - 2 (inch) |
| Max. Opening | 30 (mm) |
| Die Sets | 10 |
| Die Set Type | 51 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.05 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) / 380 (V) |
| Motor Power | 3 (KW) |
| Length | 800 (mm) |
| Width | 640 (mm) |
| Height | 1300 (mm) |
| Weight | 320 (KG) |
51 SERIES HOSE CRIMPER DIE SETS
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8 mm | 35 |
| 8* | 8 - 10 mm | 35 |
| 10* | 10 - 12 mm | 35 |
| 12* | 12 - 15 mm | 35 |
| 15 | 15 - 19 mm | 60 |
| 19 | 19 - 23 mm | 60 |
| 23 | 23 - 26 mm | 60 |
| 26 | 26 - 31 mm | 60 |
| 31 | 31 - 36 mm | 70 |
| 36 | 36 - 41 mm | 70 |
| 41 | 41 - 47 mm | 70 |
| 47 | 47 - 55 mm | 80 |
| 55 | 55 - 63 mm | 80 |
| 63 | 63 - 69 mm | 80 |
| 69* | 69 - 76 mm | 100 |
NOTE
- * for non standard die sets
- Customized die sets are available
- Special voltage 110V, 208V, 240V, 415V are available
OPTIONAL
- Quick Change Tool
- UC control
Forged from top-grade materials

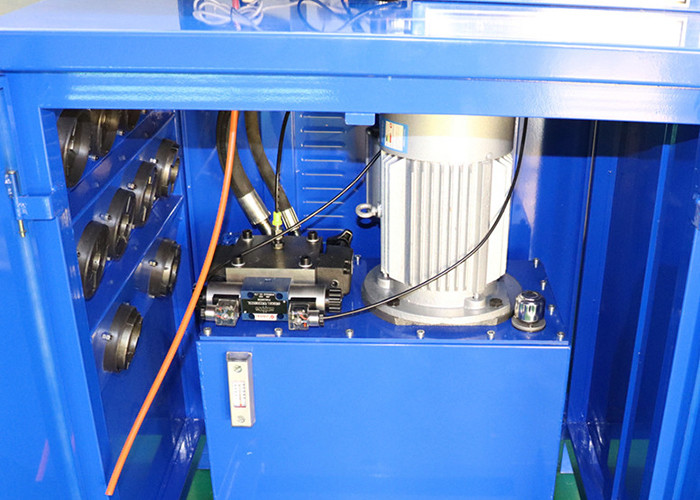

Oil detection system
High-quality high-strength molds
Convenient operation panel
High-quality crimping effect
