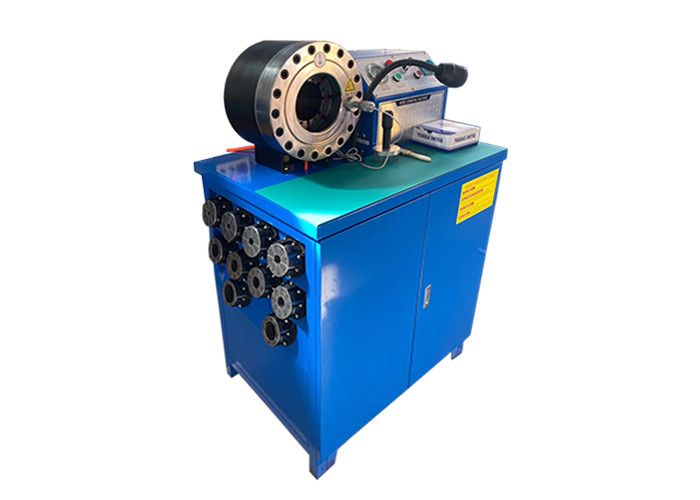

BRAKE HOSE CRIMPING MACHINE MS-51CG
DESCRIPTION
MS-51CG pressure pipe crimping machine is the best selling models in Asia. It has a very confortable operating height, so the user will not easy get tired. With a high precision crimping micrometer to control the size, no need to re-regulate every time, so improve the productivity.
MAIN ADVANTAGES
1. Advanced technology, one piece hydraulic oil cylinder;
2. Easy maintenance with simple structure;
3. High hardness die sets for high pressure hose;
4. Safe die sets installing;
5. Double operating mode, more flexible.
TECHNICAL DATA
|
Model |
MS-51CG Brake Hose Crimper |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
500 (T) |
|
Hose Size |
1/4 - 2 (inch) |
|
Max. Opening |
30 (mm) |
|
Die Sets |
10 |
|
Die Set Type |
51 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.05 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
3 (KW) |
|
Length |
800 (mm) |
|
Width |
640 (mm) |
|
Height |
1300 (mm) |
|
Weight |
320 (KG) |
51 SERIES CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
35 |
|
8* |
8 - 10mm |
35 |
|
10* |
10 - 12mm |
35 |
|
12* |
12 - 15mm |
35 |
|
15 |
15 - 19mm |
60 |
|
19 |
19 - 23mm |
60 |
|
23 |
23 - 26mm |
60 |
|
26 |
26 - 31mm |
60 |
|
31 |
31 - 36mm |
70 |
|
36 |
36 - 41mm |
70 |
|
41 |
41 - 47mm |
70 |
|
47 |
47 - 55mm |
80 |
|
55 |
55 - 63mm |
80 |
|
63 |
63 - 69mm |
80 |
|
69* |
69 - 76mm |
90 |
NOTE
¤ * for non standard die sets;
¤ Customized die sets are available;
¤ Special voltage 110V, 208V, 240V, 415V are availbale;
OPTIONAL
¤ Quick Change Tool
¤ UC control;
-
