Portable Hose Crimper Hydraulic Pipe Crimping Machine Hose Pipe Pressing Machine

Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-51CG
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 1/4 - 2inch
Die Sets 10 Color Blue
Max. Opening 30mm Crimping Force 500T
Product Name 51CG Portable Hydraulic Hose Crimper Application Workshop
System Pressure 31.5Mpa Power 3KW
Size 800*640*1300mm Weight 320Kg
High Light

3KW Portable Hydraulic Hose Crimper

,

220V Portable Hydraulic Hose Crimper

,

220V Portable Hose Crimper

Leave a Message
Product Description



PORATBLE HYDRAULIC HOSE CRIMPER MS-51CG


DESCRIPTION



MS-51CG portable hydraulic hose crimping machine is suitable for engineering machinery high pressure hose crimping, industrial low pressure big size hose making, stainless steel tube reducing for connecting, wire rope pressing, etc. As a new connecting method, it has been favored by customers home and abroad.



MAIN ADVANTAGES



1. Simple operate panel, easy to learn;

2. Common spare parts, convenient to change and buy;

3. Compact structure with big crimping ability;

4. Die sets with high hardness, long using time;

5. Foot pedal control as alternative of button control, more safe and efficient.



TECHNICAL DATA



Model

MS-51CG Portable Hydraulic Hose Crimper

Crimping Range

14 - 87 (mm)

Crimping Force

500 (T)

Hose Size

1/4 - 2 (inch)

Max. Opening

30 (mm)

Die Sets

10

Die Set Type

51

System Pressure

31.5 (Mpa)

Accuracy

0.05 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

3 (KW)

Length

800 (mm)

Width

640 (mm)

Height

1300 (mm)

Weight

320 (KG)

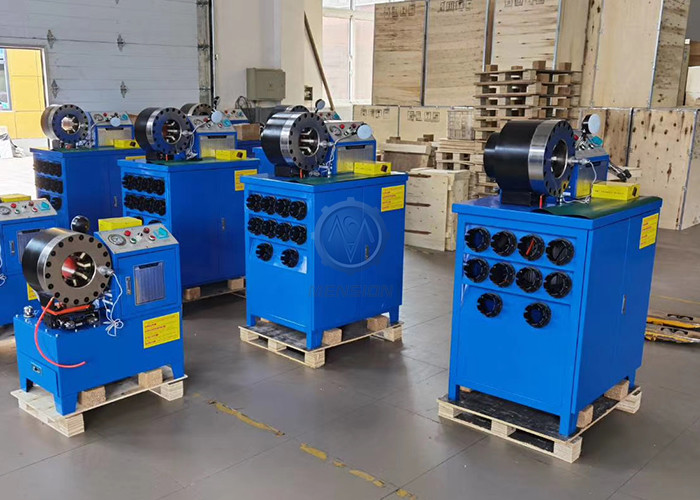

Portable Hose Crimper Hydraulic Pipe Crimping Machine Hose Pipe Pressing Machine 0

51 SERIES CRIMPER DIE SETS



Die No.

Crimping Range

Length

6*

6 - 8mm

35

8*

8 - 10mm

35

10*

10 - 12mm

35

12*

12 - 15mm

35

15

15 - 19mm

60

19

19 - 23mm

60

23

23 - 26mm

60

26

26 - 31mm

60

31

31 - 36mm

70

36

36 - 41mm

70

41

41 - 47mm

70

47

47 - 55mm

80

55

55 - 63mm

80

63

63 - 69mm

80

69*

69 - 76mm

100



NOTE



- * for non standard die sets;

- Customized die sets are available;

- Special voltage 110V, 208V, 240V, 415V are availbale;



OPTIONAL



- Quick Change Tool

- UC control;

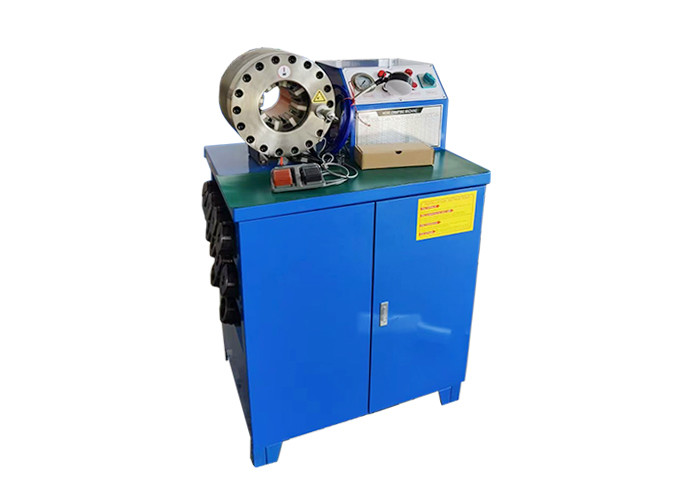

Portable Hose Crimper Hydraulic Pipe Crimping Machine Hose Pipe Pressing Machine 1
