Specifications
Highlight:
Numerically Controlled Hydraulic Hose Crimping Machine
,NC130-I Hydraulic Hose Crimping Machine
,High Configuration hydraulic hose machine
Crimping Range:
14 - 87mm
Hose Size:
1/4 - 2.5inch
Die Sets:
13
Color:
Blue
Max. Opening:
31mm
Crimping Force:
650T
Control:
UC
Power:
3.75KW
Size:
650*550*1360mm
Weight:
310Kg
Key Attributes
Brand Name:
MENSION
Model Number:
MS-NC130-I
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description

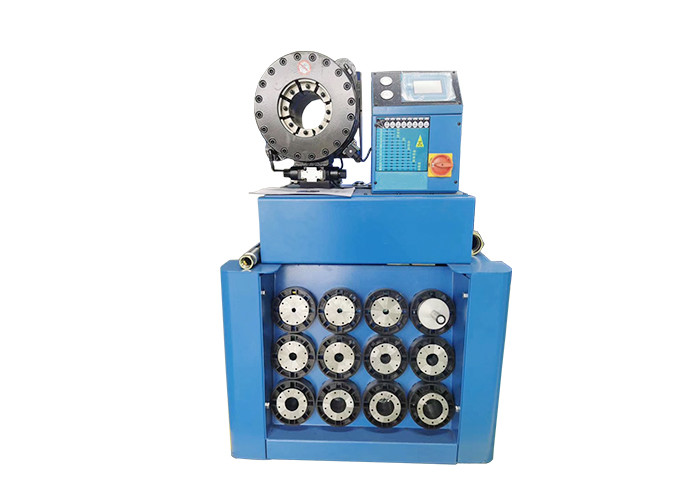

MS-P32NC Hydraulic Hose Crimping Machine
Advanced CNC numerically controlled hydraulic hose crimper with UC control system and quick-change tooling for high productivity.
Product Overview
The MS-P32NC hose crimper is an upgraded version based on NC130, featuring UC control system with quick change rack and quick change tool. Crimping capacity ranges from 1/4" to 2.5" (1 wire to 6 wires).
Main Features
- World famous valve system with big flow for easy maintenance
- Quick-change die sets to reduce working time and improve productivity
- High quality UC control system providing exceptional accuracy and stability
Technical Specifications
| Model | MS-P32NC Crimping Machine |
|---|---|
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 650 (T) |
| Hose Size | 1/4 - 2.5 (inch) |
| Max. Opening | 31 (mm) |
| Die Sets | 13 |
| Die Set Type | P32 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | UC |
| Standard Voltage | 220 (V) / 380 (V) |
| Motor Power | 3.75 (KW) |
| Length | 650 (mm) |
| Width | 550 (mm) |
| Height | 1360 (mm) |
| Weight | 310 (KG) |
P32 Hose Crimper Die Sets
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8mm | 55 |
| 8* | 8 - 10mm | 55 |
| 10* | 10 - 12mm | 55 |
| 12* | 12 - 14mm | 55 |
| 14 | 14 - 16mm | 55 |
| 16 | 16 - 19mm | 55 |
| 19 | 19 - 22mm | 55 |
| 22 | 22 - 26mm | 70 |
| 26 | 26 - 30mm | 70 |
| 30 | 30 - 34mm | 70 |
| 34 | 34 - 39mm | 75 |
| 39 | 39 - 45mm | 75 |
| 45 | 45 - 51mm | 90 |
| 51 | 51 - 57mm | 90 |
| 57 | 57 - 63mm | 100 |
| 63 | 63 - 69mm | 110 |
| 69 | 69 - 78mm | 110 |
* Denotes non-standard die sets. Customized die sets with different shapes and sizes are available.
Additional Information
Special voltages including 110V, 208V, 240V, and 415V are available upon request.
Crimping Reference Sheet
Includes comprehensive crimping reference sheet to help operators select proper die sets.
CR12MOV High Hardness Die Sets
13 die sets with hardness 59-63HRC and quick change tool for improved working efficiency.

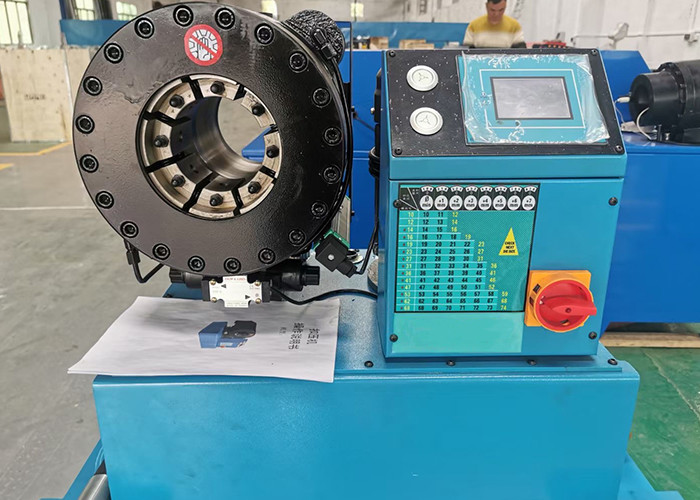

Famous UC Control System
Stable microcomputer control with high accuracy and multiple functions for precise crimping operations.
OEM Services Available
Crimping machines can be customized with different colors, buttons, and die sets to meet specific requirements.
Applications
This hose crimping machine is capable of crimping high pressure stainless steel braided hydraulic hose, low pressure large size industrial pipes, cables and wires, steel and iron tubes, brake lines in automotive systems, and air suspension or springs.
How to Choose a Suitable Hose Crimping Machine
Control System
Hose crimping machines feature two control systems: MS (mechanical system) using a micrometer for crimping diameter control and manual crimping progress, and UC (PLC control system) using microcomputer control for crimping diameter, crimping time, and other parameters with modern functionality.
Crimping Size
Hose crimping machines are categorized by maximum hose capacity, including 2 inch, 3 inch, 4 inch, 6 inch crimpers, and other sizes.
Die Changing Method
Die sets can be changed manually one by one, or simultaneously with a quick change tool for enhanced efficiency.
Material quality and spare parts configuration also influence the price and performance of hose crimpers.
