UC Control Hydraulic Hose Crimping Machine
,NC130 Hydraulic Hose Crimping Machine
,UC Control High Pressure Hose Crimping Machine

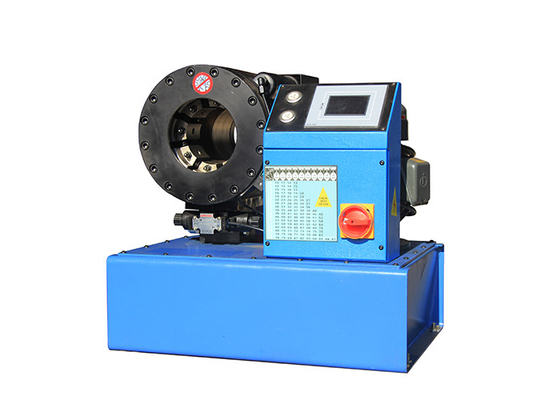

UC HYDRAULIC HOSE CRIMPING MACHINE MS-NC130
DESCRIPTION
MS-NC130 pressure crimper is the forth generation for 130 series. It has big crimping force and high crimping accuracy. UC system enable the machine can hold system pressure during hose assmbly making, to improve the quality.
ADVANTAGES
1) Famous NACHI valve from Japan, high hardness, big flow.
2) Italy electric ruler, high accuracy.
3) Double conical master die, big crimping force.
TECHNICAL DATA
|
Model |
MS-NC130 Hose Crimping Machine |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
650 (T) |
|
Hose Size |
1/4 - 2.5 (inch) |
|
Max. Opening |
31 (mm) |
|
Die Sets |
13 |
|
Die Set Type |
P32 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
UC |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
3.75 (KW) |
|
Length |
650 (mm) |
|
Width |
550 (mm) |
|
Height |
650 (mm) |
|
Weight |
240 (KG) |
P32 HOSE CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
55 |
|
8* |
8 - 10mm |
55 |
|
10* |
10 - 12mm |
55 |
|
12* |
12 - 14mm |
55 |
|
14 |
14 - 16mm |
55 |
|
16 |
16 - 19mm |
55 |
|
19 |
19 - 22mm |
55 |
|
22 |
22 - 26mm |
70 |
|
26 |
26 - 30mm |
70 |
|
30 |
30 - 34mm |
70 |
|
34 |
34 - 39mm |
75 |
|
39 |
39 - 45mm |
75 |
|
45 |
45 - 51mm |
90 |
|
51 |
51 - 57mm |
90 |
|
57 |
57 - 63mm |
100 |
|
63 |
63 - 69mm |
110 |
|
69 |
69 - 78mm |
110 |
NOTE
- " * " for non standard die sets;
- Customized die sets are available;
- Special voltage 110V, 208V, 240V, 415V are availbale;
► ITALY ELECTRIC RULER
CE certificate approved, high quality, top accuracy
► NACHI ELECTRIC VALVE
Japanese NACHI solenoid valve, high hardness, long service time

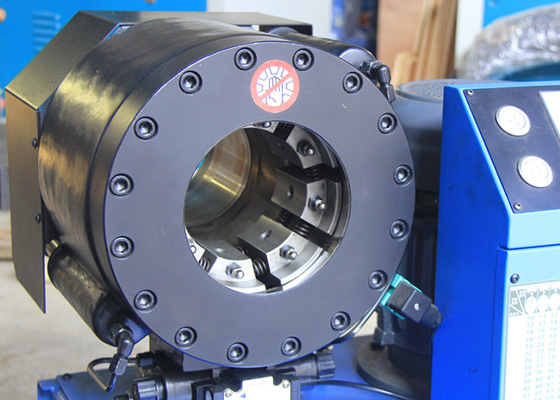

► DOUBLE CONICAL MASTER DIE
NC130 is with new design master die, master die can move same speed even after years of using
► FACTORY FOR HYDRAULIC HOSE CRIMPING MACHINE MAKING
► APPLICATION SHOW
MS-NC130 is a high configured hose crimping machine, it has the ability of crimping high pressure stainless steel braided hydraulic hose, cable and wires, steel and iron tubes, brake lines in automotive system, air suspension or springs.
-
CReliable quality, easy to use, a great helper for starting a business.
-
CI've been running a hardware store for three years. This hydraulic crimping machine was the one I chose after comparing five different models. Initially, I was worried about the precision, so I tested over 20 high-pressure oil pipe connectors—each crimped perfectly in one go without any leaks. Now, customer feedback is great, and the repeat purchase rate is high
-
GThose who open a truck repair shop usually apply pressure to the brake oil pipe and hydraulic oil pipe of the truck. The manual version has sufficient pressure and the joint is tightly pressed. The truck runs long distances without oil leakage, which is recognized by the driver. The machine is durable and can be used in stores, as well as in places without electricity outdoors
