Intelligent Rubber Pipe Crimping Machine CNC High Precision Hose Crimper

  • Intelligent Rubber Pipe Crimping Machine CNC High Precision Hose Crimper
  • Intelligent Rubber Pipe Crimping Machine CNC High Precision Hose Crimper
  • Intelligent Rubber Pipe Crimping Machine CNC High Precision Hose Crimper
Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-NC130
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 1/4 - 2.5inch
Die Sets 13 Color Blue
Max. Opening 31mm Crimping Force 650T
Product Name NC130 Rubber Hose Crimping Machine Application Workshop
System Pressure 31.5Mpa Power 3.75KW
Size 650*550*650mm Weight 240Kg
High Light

Intelligent pipe crimping machine

,

NC130 pipe crimping machine

,

NC130 cnc hose crimping machine
Leave a Message
Product Description

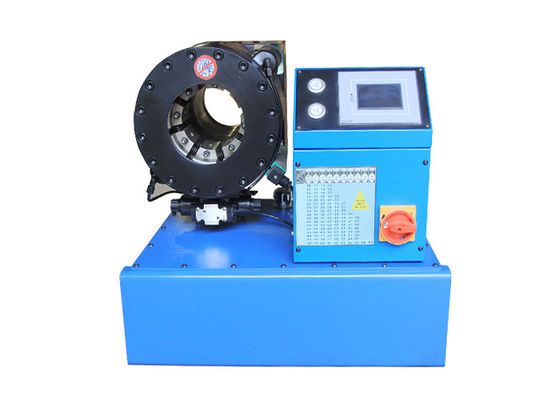

INTELLIGENT RUBBER HOSE CRIMPING MACHINE MS-NC130

DESCRIPTION



MS-NC130 rubber hose crimping machine is the basic type for CNC control hose crimper. It has a wide crimping range with 13 die sets, and a very stable intelligent system.



ADVANTAGES



1. Japanese NACHI valve, high stability;

2. Taiwan DINZING seal kit, good anti wear ability;

3. Big Taiwan hydroflex oil pump;

4. Die sets with high hardness.



TECHNICAL DATA



Model

MS-NC130 Rubber Hose Crimping Machine

Crimping Range

14 - 87 (mm)

Crimping Force

650 (T)

Hose Size

1/4 - 2.5 (inch)

Max. Opening

31 (mm)

Die Sets

13

Die Set Type

P32

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

3.75 (KW)

Length

650 (mm)

Width

550 (mm)

Height

650 (mm)

Weight

240 (KG)



Intelligent Rubber Pipe Crimping Machine CNC High Precision Hose Crimper 0

P32 HOSE CRIMPER DIE SETS



Die No.

Crimping Range

 Length

6*

6 - 8 mm

 55

8*

8 - 10 mm

 55

10*

10 - 12 mm

 55

12*

12 - 14 mm

 55

14

14 - 16 mm

 55

16

16 - 19 mm

 55

19

19 - 22 mm

 55

22

22 - 26 mm

 70

26

26 - 30 mm

 70

30

30 - 34 mm

 70

34

34 - 39 mm

 75

39

39 - 45 mm

 75

45

45 - 51 mm

 90

51

51 - 57 mm

 90

57

57 - 63 mm

 100

63

63 - 69 mm

 110

69

69 - 78 mm

 110



NOTE



- * for non standard die sets;

- Customized die sets are available;

- Special voltage 110V, 208V, 240V, 415V are availbale;



Intelligent Rubber Pipe Crimping Machine CNC High Precision Hose Crimper 1



Intelligent Rubber Pipe Crimping Machine CNC High Precision Hose Crimper 2



Intelligent Rubber Pipe Crimping Machine CNC High Precision Hose Crimper 3



Intelligent Rubber Pipe Crimping Machine CNC High Precision Hose Crimper 4
