Specifications
Highlight:
3.75KW Used Hydraulic Hose Crimping Machine
,NC130U Used Hydraulic Hose Crimping Machine
,NC130U used hydraulic hose crimper
Crimping Range:
14 - 87mm
Hose Size:
1/4 - 2.5inch
Die Sets:
13
Color:
Blue
Max. Opening:
31mm
Crimping Force:
650T
Product Name:
NC130U Used Hydraulic Hose Crimping Machine
Application:
Workshop
System Pressure:
31.5Mpa
Power:
3.75KW
Size:
650*550*650mm
Weight:
240Kg
Key Attributes
Brand Name:
MENSION
Model Number:
MS-NC130U
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description
Two Inches Hydraulic Hose Crimping Machine Used Parker Hydraulic Hose Crimper

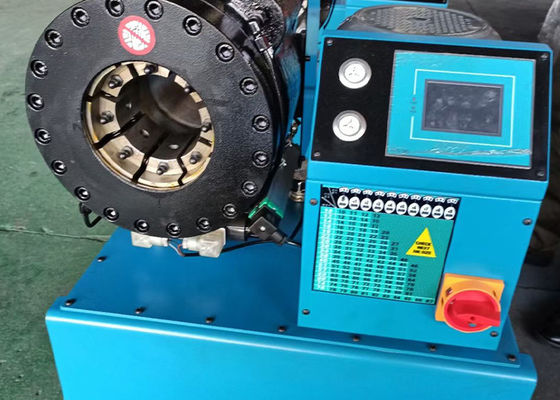

NUMERICAL HYDRAULIC HOSE CRIMPING MACHINE MS-NC130U
DESCRIPTION
MS-NC130 hydraulic hose crimper machine has been widely used in various industries, including hydraulic high pressure hose assembly manufacturing, low pressure industrial hose connecting, marine and sea transmission ropes, steel tube swaging, and automotive components.
ADVANTAGES
- Digital control system for intelligent operation
- Reasonable die sets design for better crimping results
- Famous brand spare parts for improved stability
- One piece forged hydraulic head for long-term durability
TECHNICAL DATA
| Model | MS-NC130U Crimping Machine |
|---|---|
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 650 (T) |
| Hose Size | 1/4 - 2.5 (inch) |
| Max. Opening | 31 (mm) |
| Die Sets | 13 |
| Die Set Type | P32 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) / 380 (V) |
| Motor Power | 3.75 (KW) |
| Length | 650 (mm) |
| Width | 550 (mm) |
| Height | 650 (mm) |
| Weight | 240 (KG) |
P32 HOSE CRIMPER DIE SETS
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8 mm | 55 |
| 8* | 8 - 10 mm | 55 |
| 10* | 10 - 12 mm | 55 |
| 12* | 12 - 14 mm | 55 |
| 14 | 14 - 16 mm | 55 |
| 16 | 16 - 19 mm | 55 |
| 19 | 19 - 22 mm | 55 |
| 22 | 22 - 26 mm | 70 |
| 26 | 26 - 30 mm | 70 |
| 30 | 30 - 34 mm | 70 |
| 34 | 34 - 39 mm | 75 |
| 39 | 39 - 45 mm | 75 |
| 45 | 45 - 51 mm | 90 |
| 51 | 51 - 57 mm | 90 |
| 57 | 57 - 63 mm | 100 |
| 63 | 63 - 69 mm | 110 |
| 69 | 69 - 78 mm | 110 |
NOTE
- * for non standard die sets
- Customized die sets are available
- Special voltage 110V, 208V, 240V, 415V are available
Forged from top-grade materials
CNC operation panel
Crimping Parameter Comparison Table
Top-of-the-line power
High-quality crimping effect
Overall Rating
5 star
100%
4 star
0
3 star
0
2 star
0
1 star
0
All Reviews
-
AUsed this P16 crimper daily for months. No leaks, no failures, crimps hold great under high pressure. Perfect for small-batch assembly and emergency repairs.
-
AThose who open a truck repair shop usually apply pressure to the brake oil pipe and hydraulic oil pipe of the truck. The manual version has sufficient pressure and the joint is tightly pressed. The truck runs long distances without oil leakage, which is recognized by the driver. The machine is durable and can be used in stores, as well as in places without electricity outdoors
-
TAs a shop specializing in precision machinery, we have exceptionally high precision requirements for crimping machines. This equipment features adjustable crimping stroke with minimal error, ensuring oil-free connections after crimping. Even beginners can quickly learn—just 30 minutes of training enables them to operate it independently
