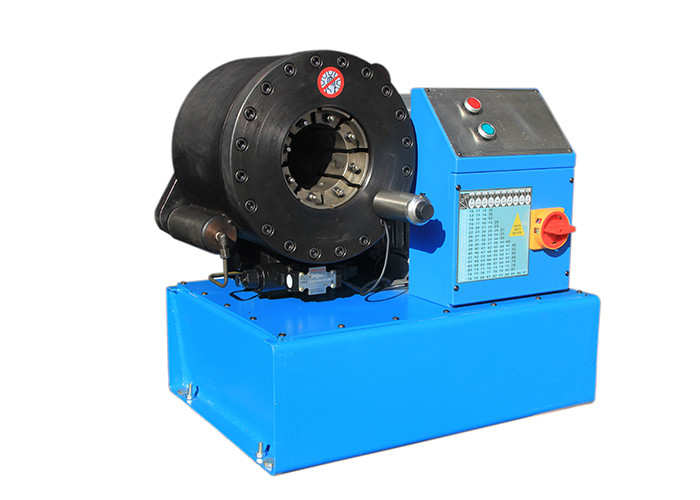

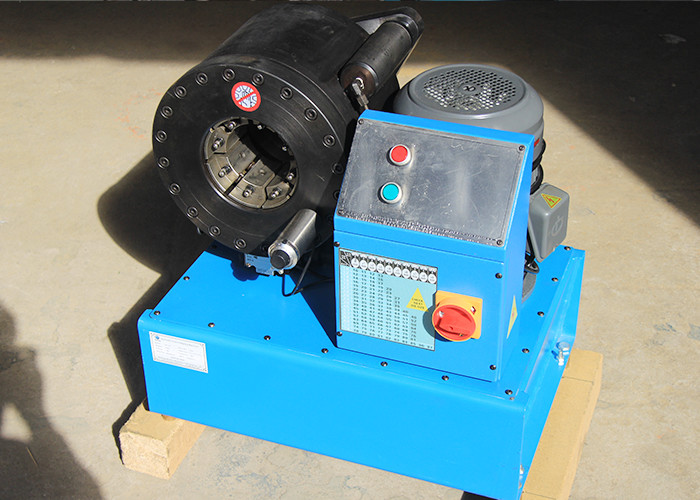

3 INCH OIL HOSE CRIMPING MACHINE MS-E150
DESCRIPTION
MS-E150 is a 3 inch hose crimper machine with big crimping force. It provide 780T crimping force, is ideally suited for hose assembly single-piece prodcution in machine shops, repair workshop, etc. This hydraulic crimping machine can be mounted on a special die set rack and all the 15 sets mold can be stored in the base for the operator convenience.
MAIN FEATURES
► Forged one-piece crimping head, no oil leakage, big system pressure
► Compact structure with light weight among same size
► Double conical master die with big crimping force and high accuracy
► High hardness die sets, long service time
TECHNICAL DATA
|
Model |
MS-E150 Hose Crimper |
|
Crimping Range |
14 - 127 (mm) |
|
Crimping Force |
780 (T) |
|
Hose Size |
1/4 - 3 (inch) |
|
Max. Opening |
35 (mm) |
|
Die Sets |
15 |
|
Die Set Type |
150 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
3 (KW) |
|
Length |
650 (mm) |
|
Width |
550 (mm) |
|
Height |
650 (mm) |
|
Weight |
250 (KG) |
150 CRIMPING MACHINE DIE SETS
|
Die No. |
Crimping Range |
|
6* |
6 - 8mm |
|
8* |
8 - 10mm |
|
10* |
10 - 12mm |
|
12* |
12 - 14mm |
|
14 |
14 - 16mm |
|
16 |
16 - 19mm |
|
19 |
19 - 22mm |
|
22 |
22 - 26mm |
|
26 |
26 - 30mm |
|
30 |
30 - 34mm |
|
34 |
34 - 39mm |
| 39 | 39 - 45mm |
|
45 |
45 - 51mm |
|
51 |
51 - 57mm |
| 57 | 57 - 63mm |
|
63 |
63 - 69mm |
|
69 |
69 - 74mm |
| 74 | 74 - 78mm |
| 78 | 78 - 87mm |
NOTE
• " * " for non standard die sets
• Customized die sets are available with different size or shape
• Special voltage such as 110V, 208V, 240V, 415V are availbale
• Foot pedal is available to make the hands free
► DOUBLE CONICAL MASTER DIE
E150 has same master die structure with our FINN POWER hose crimping machines
► HUMAN DESIGN OPERATE PANEL
Three buttons on the panel, simple for operating, suitable for novice
► DIE SETS WITH HIGH HARDNESS
E150 is with 15 die sets with hardness of 59-63HRC, long service time.
► SAMPLES
MS-E150 have been widely used in high pressure hydraulic oil hose assembly crimping, cable and wire rope pressing,
steel tube swaging, car automotive components brake hose jointing, etc.
