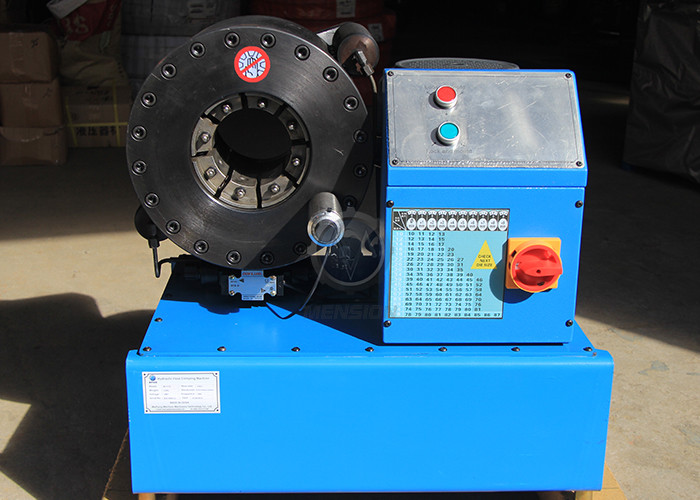

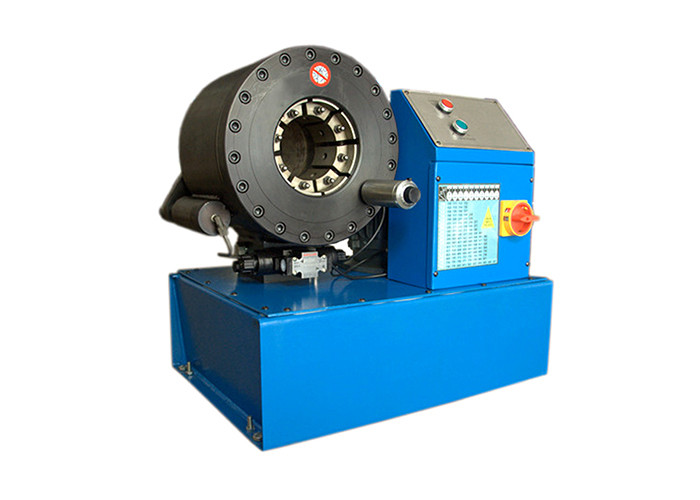

AC HYDRAULIC HOSE CRIMPING MACHINE MS-E150
DESCRIPTION
MS-E150 ac hydraulic hose crimper machine is famous for its big crimping range. It is a reliable and accurate machine with high stability.
MAIN FEATURES
1. Die sets choosing reference sheet for new user;
2. Die sets with high hardness;
3. Hydraulic oil cylinder with easy maintenance;
4. Diameter control ruler with high precision.
TECHNICAL DATA
|
Model |
MS-E150 AC Hose Crimping Machine |
|
Crimping Range |
14 - 127 (mm) |
|
Crimping Force |
780 (T) |
|
Hose Size |
1/4 - 3 (inch) |
|
Max. Opening |
35 (mm) |
|
Die Sets |
15 |
|
Die Set Type |
150 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
3 (KW) |
|
Length |
650 (mm) |
|
Width |
550 (mm) |
|
Height |
650 (mm) |
|
Weight |
250 (KG) |
150 HOSE CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8 mm |
55 |
|
8* |
8 - 10 mm |
55 |
|
10* |
10 - 12 mm |
55 |
|
12* |
12 - 14 mm |
55 |
|
14 |
14 - 16 mm |
55 |
|
16 |
16 - 19 mm |
55 |
|
19 |
19 - 22 mm |
55 |
|
22 |
22 - 26 mm |
70 |
|
26 |
26 - 30 mm |
70 |
|
30 |
30 - 34 mm |
70 |
|
34 |
34 - 39 mm |
75 |
| 39 | 39 - 45 mm | 75 |
|
45 |
45 - 51 mm |
90 |
|
51 |
51 - 57 mm |
90 |
| 57 | 57 - 63 mm | 100 |
|
63 |
63 - 69 mm |
110 |
|
69 |
69 - 74 mm |
110 |
| 74 | 74 - 78 mm | 110 |
| 78 | 78 - 87 mm | 110 |
NOTE
1) Customized die sets are available with different size or shape;
2) Special voltage such as 110V, 208V, 240V, 415V are availbale;
3) Foot pedal is available to make the hands free;
4) * for non standard die sets.
-
