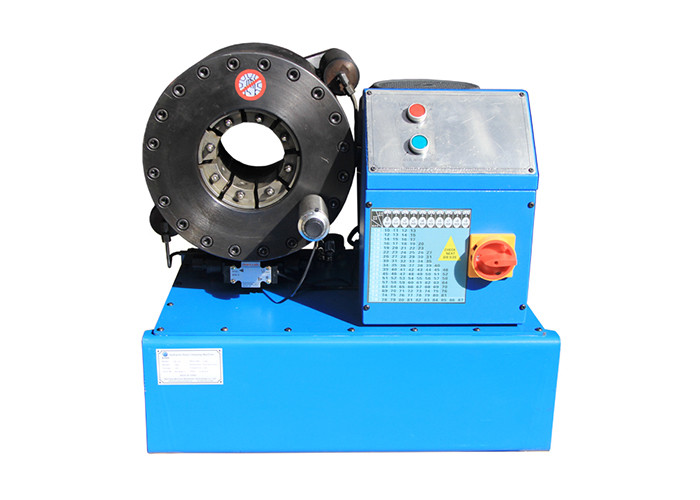

Brake Hose Crimper High Pressure Hydraulic Hose Crimping Tool Hydraulic Fitting Crimper

  • Brake Hose Crimper High Pressure Hydraulic Hose Crimping Tool Hydraulic Fitting Crimper
  • Brake Hose Crimper High Pressure Hydraulic Hose Crimping Tool Hydraulic Fitting Crimper
  • Brake Hose Crimper High Pressure Hydraulic Hose Crimping Tool Hydraulic Fitting Crimper
Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-E150
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 127mm Hose Size 1/4 - 3inch
Die Sets 15 Max. Opening 35mm
Color Blue Crimping Force 780T
Product Name E150 Brake Hose Crimping Machine Application Workshop
System Pressure 31.5Mpa Power 3KW
Size 650*550*650mm Weight 250Kg
High Light

Silent brake hose crimper

,

E150 brake hose crimper

,

E150 High Pressure hose crimper
Leave a Message
Product Description

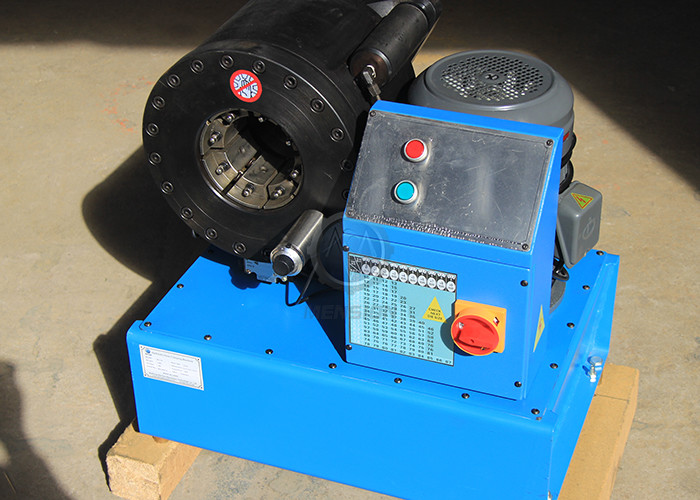

HOSE CRIMPING MACHINE MS-E150

DESCRIPTION



MS-E150 brake hose crimping machine is ideally used in the industries like high pressure hydraulic hose assembly producing, car automotive systems, engineering machinery, green house making, heavy machinery, wires and cables, etc.



MAIN FEATURES



► High accurate front postioning device

► Hydraulic back postioning with stable performance

► One piece forged cylinder, high hardness and anti rust ability

► Advanced technology for hydraulic valve systems



TECHNICAL DATA



Model

MS-E150 Brake Hose Crimper Machine

Crimping Range

14 - 127 (mm)

Crimping Force

780 (T)

Hose Size

1/4 - 3 (inch)

Max. Opening

35 (mm)

Die Sets

15

Die Set Type

150

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

3 (KW)

Length

650 (mm)

Width

550 (mm)

Height

650 (mm)

Weight

250 (KG)



Brake Hose Crimper High Pressure Hydraulic Hose Crimping Tool Hydraulic Fitting Crimper 0

150 HOSE CRIMPER DIE SETS



Die No.

Crimping (mm)

 Length (mm)

6*

6.0 - 8.0

 55

8*

8.0 - 10.0

 55

10*

10.0 - 12.0

 55

12*

12.0 - 14.0

 55

14

14.0 - 16.0

 55

16

16.0 - 19.0

 55

19

19.0 - 22.0

 55

22

22.0 - 26.0

 70

26

26.0 - 30.0

 70

30

30.0 - 34.0

 70

34

34.0 - 39.0

 75
39 39.0 - 45.0 75

45

45.0 - 51.0

 90

51

51.0 - 57.0

 90
57 57.0 - 63.0 100

63

63.0 - 69.0

 110

69

69.0 - 74.0

 110
74 74.0 - 78.0 110
78 78.0 - 87.0 110



NOTE



• " * " for non standard die sets

• Customized die sets are available with different size or shape

• Special voltage such as 110V, 208V, 240V, 415V are availbale

• Foot pedal is available to make the hands free



► DIE SETS CHOOSING REFERENCE SHEET AND BIG POWER SWITCH



Each die sets have its crimping range, use proper mold for hose assembly making to get the best effect, high quality power switch to protect the user from harm



Brake Hose Crimper High Pressure Hydraulic Hose Crimping Tool Hydraulic Fitting Crimper 1



► ADVANCED CYLINDER PRODUCING TECHNOLOGY



Double connical master die with high pressure and high accuracy, automatic lubricate system enable long service life



Brake Hose Crimper High Pressure Hydraulic Hose Crimping Tool Hydraulic Fitting Crimper 2



► CRIMPING DIAL WITH HIGH PRECISION



Accuracy up to 0.01mm, easy to use even for novice



Brake Hose Crimper High Pressure Hydraulic Hose Crimping Tool Hydraulic Fitting Crimper 3



► LARGE STOCK, FAST DELIVERY



Brake Hose Crimper High Pressure Hydraulic Hose Crimping Tool Hydraulic Fitting Crimper 4



CRIMPING HOSE ASSEMBLY SAMPLES



Brake Hose Crimper High Pressure Hydraulic Hose Crimping Tool Hydraulic Fitting Crimper 5
