Specifications
Highlight:
Industrial Hydraulic Hose Pipe Crimping Machine
,E180 Hydraulic Hose Pipe Crimping Machine
,4 Inch hose pipe crimping machine
Crimping Range:
14 - 167mm
Hose Size:
1/4 - 4inch
Die Sets:
18
Color:
Grey And Blue
Max. Opening:
45mm
Crimping Force:
980T
System Pressure:
31.5Mpa
Power:
7.5KW
Size:
800*650*880mm
Weight:
510Kg
Key Attributes
Brand Name:
MENSION
Model Number:
MS-E180
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description

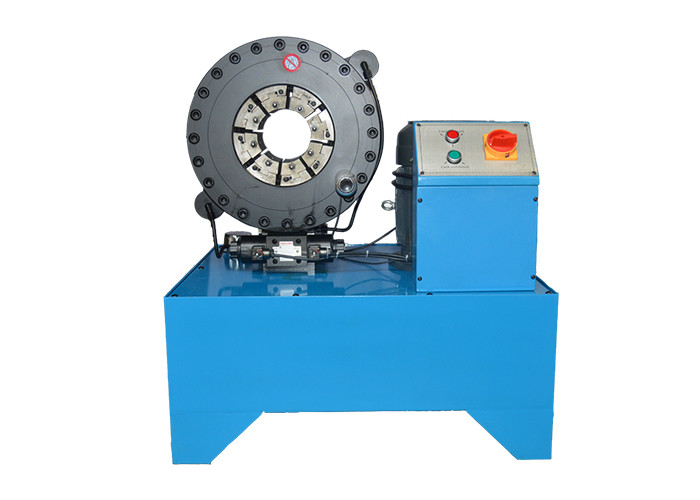

Hydraulic Cable Crimping Machine MS-E180
Product Overview
The MS-E180 hydraulic hose crimping machine is designed for industrial and hydraulic hose applications up to 4-inch 6-spiral configurations. Its large opening design facilitates easy handling of oversized hoses through the crimping head.
Key Features
- Compact structure with lightweight design
- Reinforced machine body for extended service life
- High-precision crimping dial for accurate results
Technical Specifications
| Model | MS-E180 Hydraulic Hose Crimping Machine |
|---|---|
| Crimping Range | 14 - 167 (mm) |
| Crimping Force | 980 (T) |
| Hose Size | 1/4 - 4 (inch) |
| Max. Opening | 45 (mm) |
| Die Sets | 18 |
| Die Set Type | 32 180 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 380 (V) |
| Motor Power | 7.5 (KW) |
| Length | 800 (mm) |
| Width | 650 (mm) |
| Height | 880 (mm) |
| Weight | 510 (KG) |
E180 Crimping Machine Die Sets
| Die No. | Crimping (mm) | Length (mm) |
|---|---|---|
| 6* | 6.0 - 8.0 | 55 |
| 8* | 8.0 - 10.0 | 55 |
| 10* | 10.0 - 12.0 | 55 |
| 12* | 12.0 - 15.0 | 55 |
| 15 | 15.0 - 18.0 | 55 |
| 18 | 18.0 - 21.0 | 55 |
| 21 | 21.0 - 24.0 | 55 |
| 24 | 24.0 - 27.0 | 55 |
| 27 | 27.0 - 33.0 | 55 |
| 33 | 33.0 - 39.0 | 75 |
| 39 | 39.0 - 45.0 | 75 |
| 45 | 45.0 - 51.0 | 90 |
| 51 | 51.0 - 57.0 | 90 |
| 57 | 57.0 - 66.0 | 100 |
| 66 | 66.0 - 73.0 | 110 |
| 73 | 73.0 - 90.0 | 110 |
| 90 | 90.0 - 96.0 | 120 |
| 96 | 96.0 - 102.0 | 120 |
| 102 | 102.0 - 108.0 | 120 |
| 108 | 108.0 - 114.0 | 120 |
| 114 | 114.0 - 123.0 | 120 |
| 123 | 123.0 - 136.0 | 120 |
Important Notes
• "*" indicates non-standard die sets
• Customized die sets available upon request
• Special voltage options: 110V, 208V, 240V, 415V

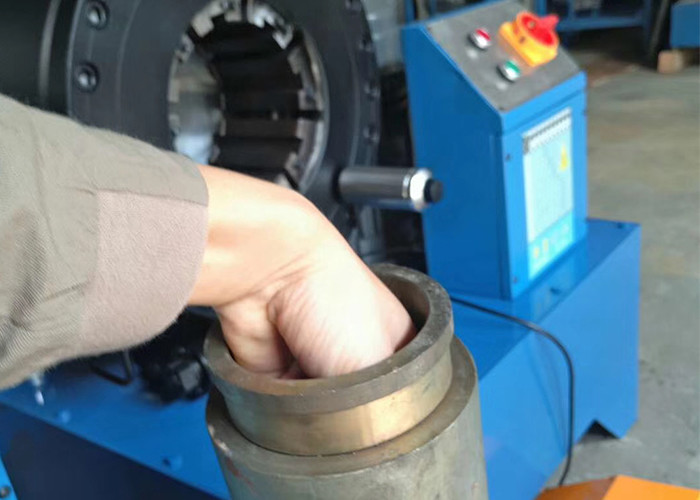

Large Crimping Cylinder
Features a crimping head with wide range capability, specifically designed for large-size hydraulic hose applications.
High-Precision Micrometer
Equipped with high-precision dial for crimping special materials with exceptional accuracy.
Foot Pedal Operation
Includes foot pedal switch for hands-free operation during crimping of larger hoses.
High Productivity Design
