P32 Hydraulic Hose Crimping Machine Used Hydraulic Hose Crimper Press

  • P32 Hydraulic Hose Crimping Machine Used Hydraulic Hose Crimper Press
  • P32 Hydraulic Hose Crimping Machine Used Hydraulic Hose Crimper Press
Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-E180
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 167mm Hose Size 1/4 - 4inch
Die Sets 18 Color Grey And Blue
Max. Opening 45mm Crimping Force 980T
Product Name E180 Used Hydraulic Hose Crimping Machine Application Workshop
System Pressure 31.5Mpa Power 7.5KW
Size 800*650*880mm Weight 510Kg
Highlight

Horizontal Used Hydraulic Hose Crimping Machine

,

E180 Used Hydraulic Hose Crimping Machine

,

High Pressure used hose crimping machine
Leave a Message
Product Description

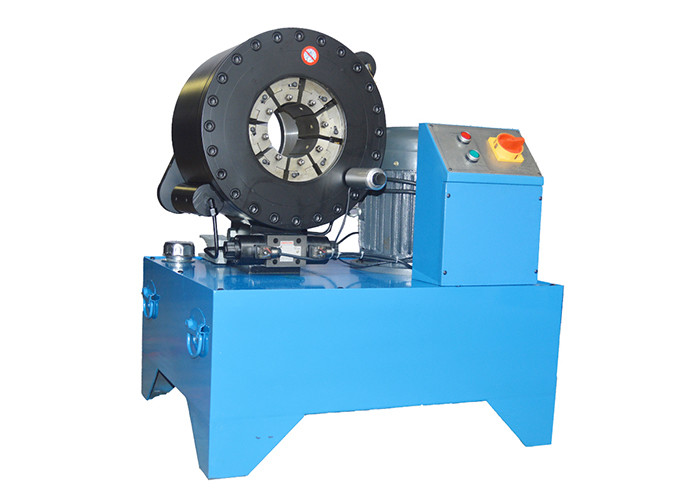

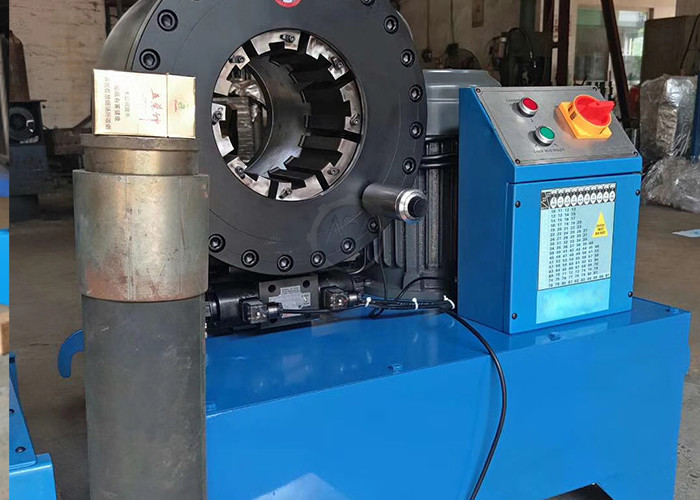

4 INCH HYDRAULIC HOSE CRIMPING MACHINE USED MS-E180

DESCRIPTION



MS-E180 hydraulic hose crimper machine is the ideal choice for 4 inch high pressure stainless steel spiraled hose crimping. It has big opening size, with die sets adapters, it can crimp hose as small as 1/4 inch with high accuracy.



MAIN FEATURES



1. One piece forged cylinder, high hardness;

2. Big motor and pump, generate huge crimping force;

3. Human design panel, easy and convenient;

4. Oil ruler to check the postioning and status of the hydraulic oil.

5. Easy for maintenance.



TECHNICAL DATA



Model

MS-E180 Used Hydraulic Hose Crimping Machine

Crimping Range

14 - 167 (mm)

Crimping Force

980 (T)

Hose Size

1/4 - 4 (inch)

Max. Opening

45 (mm)

Die Sets

18

Die Set Type

32 180

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

MS

Standard Voltage

380 (V)

Motor Power

7.5 (KW)

Length

800 (mm)

Width

650 (mm)

Height

880 (mm)

Weight

510 (KG)



P32 Hydraulic Hose Crimping Machine Used Hydraulic Hose Crimper Press 0



E180 HOSE CRIMPER DIE SETS



Die No.

Crimping Range

 Length

6*

6 - 8 mm

 55

8*

8 - 10 mm

 55

10*

10 - 12 mm

 55

12*

12 - 15 mm

 55

15

15 - 18 mm

 55

18

18 - 21 mm

 55

21

21 - 24 mm

 55

24

24 - 27 mm

 55

27

27 - 33 mm

 55

33

33 - 39 mm

 75

39

39-45mm

 75

45

45 - 51 mm

 90

51

51 - 57 mm

 90

57

57 - 66 mm

 100

66

66 - 73 mm

 110
73 73 - 90 mm 110
90 90 - 96 mm 120
96 96 - 102 mm 120
102 102 - 108 mm 120
108 108 - 114 mm 120
114 114 - 123 mm 120
123 123 - 136 mm 120



NOTE



- * for non standard die sets;

- Customized die sets are available;

- Special voltage 110V, 208V, 240V, 415V are availbale;



P32 Hydraulic Hose Crimping Machine Used Hydraulic Hose Crimper Press 1



P32 Hydraulic Hose Crimping Machine Used Hydraulic Hose Crimper Press 2



P32 Hydraulic Hose Crimping Machine Used Hydraulic Hose Crimper Press 3
