Stainless Steel Braided Hydraulic Hose Crimping Machine E130 - I High Accuracy

Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-E130-I
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14-87mm Hose Size 1/4-2.5inch
Die Sets 13 Color Blue
Max. Opening 31mm Crimping Force 650T
System Pressure 31.5Mpa Power 3.75KW
Size 650*550*1360mm Weight 310Kg
High Light

Stainless Steel Hydraulic Hose Crimping Machine

,

Braided Hydraulic Hose Crimping Machine

,

Braided Hose Crimping Machine

Leave a Message
Product Description



HYDRAULIC HOSE CRIMPING MACHINE MS-E130-I


DESCRIPTION


MS-E130-I hose crimper is with the world famous MS control technology, easy for maintenance. The hose crimper is widely used in machinery repair field like a workshop or hose assembly making factories.

ADVANTAGES


1) Japanese NACHI valve, big crimping force, long service time.
2) Quick change tool, save the die change time.
3) Foot pedal frees both hands to improve effeciency.


TECHNICAL DATA



Model

MS-E130-I Crimping Machine

Crimping Range

14 - 87 (mm)

Crimping Force

650 (T)

Hose Size

1/4 - 2.5 (inch)

Max. Opening

31 (mm)

Die Sets

13

Die Set Type

P32

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

MS

Standard Voltage

220 (V) /  380 (V)

Motor Power

3.75 (KW)

Length

650 (mm)

Width

550 (mm)

Height

1360 (mm)

Weight

310 (KG)


Stainless Steel Braided Hydraulic Hose Crimping Machine E130 - I High Accuracy 0

P32 CRIMPING MACHINE DIE SETS



Die No.

Crimping Range

Length

6*

6 - 8mm

55

8*

8 - 10mm

55

10*

10 - 12mm

55

12*

12 - 14mm

55

14

14 - 16mm

55

16

16 - 19mm

55

19

19 - 22mm

55

22

22 - 26mm

70

26

26 - 30mm

70

30

30 - 34mm

70

34

34 - 39mm

75

39

39 - 45mm

75

45

45 - 51mm

90

51

51 - 57mm

90

57

57 - 63mm

100

63

63 - 69mm

110

69

69 - 78mm

110


NOTE


- " * " for non standard die sets;
- Customized die sets are available;
- Special voltage 110V, 208V, 240V, 415V are availbale;

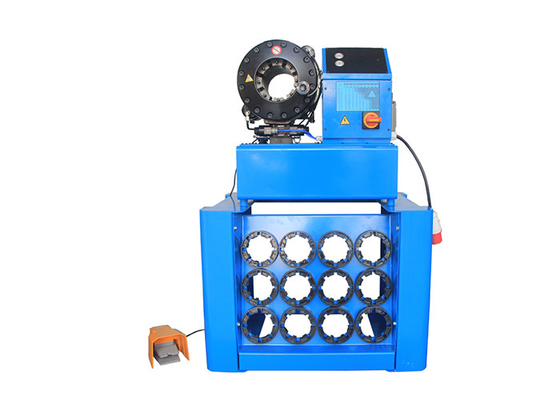

► COMPACT STRUCTURE


Light weight and compact structure makes the machine easy to move and place
Stainless Steel Braided Hydraulic Hose Crimping Machine E130 - I High Accuracy 1

► CR12MOV DIE SETS


13 die sets hardness 59-63HRC, with quick change tool to increase the productivity
Stainless Steel Braided Hydraulic Hose Crimping Machine E130 - I High Accuracy 2

► COPPER WIRE MOTOR


Copper wire with aluminium sheel, better heat releasing, no heat even after using for a long time

Stainless Steel Braided Hydraulic Hose Crimping Machine E130 - I High Accuracy 3

► ADVANCED MS CONTROL


Stable performance, easy for maintenance with high accuracy
Stainless Steel Braided Hydraulic Hose Crimping Machine E130 - I High Accuracy 4

► FAST DELIVERY


Delivery within 7 days after receiving the payment
Stainless Steel Braided Hydraulic Hose Crimping Machine E130 - I High Accuracy 5

► APPLICATIONS


E130-I is a high configured hose crimping machine, it has the ability of crimping high pressure stainless steel braided hydraulic rubber hose, industrial hose, cable and wires, steel and iron tubes, brake lines in automotive system, air suspension or springs.
Stainless Steel Braided Hydraulic Hose Crimping Machine E130 - I High Accuracy 6

Stainless Steel Braided Hydraulic Hose Crimping Machine E130 - I High Accuracy 7
