Specifications
Highlight:
Electric Positioning Hose Pressing Machine
,2.5inch Hose Pressing Machine
,2.5inch hydraulic Hose Press Machine
Crimping Range:
14 - 87mm
Hose Size:
1/4 - 2.5inch
Die Sets:
13
Color:
Blue
Max. Opening:
31mm
Crimping Force:
650T
Product Name:
E130-I Hose Pressing Machine
System Pressure:
31.5Mpa
Power:
3.75KW
Size:
650*550*1360mm
Weight:
310Kg
Application:
Workshop
Key Attributes
Brand Name:
MENSION
Model Number:
MS-E130-I
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description
Electric Hose Crimping Machine Hydraulic Hose Pressing Machine 2 Inch Hose

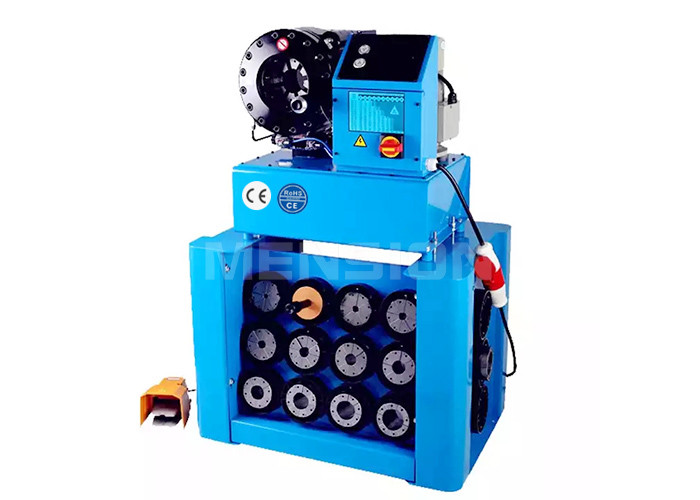

MS-E130-I Hose Pressing Machine
Description
MS-E130-I hose crimping machine is designed with quick speed and improved hose crimping ability for large diameters. It can be used to crimp various materials including hydraulic flexible hoses, industrial pipes, cables and wires, and steel metal tubes.
Advantages
- Low maintenance cost with simple structure
- Big crimping range with 13 die sets
- High hardness cylinder and front cover
- Integrated button, safe and convenient
Technical Data
| Model | MS-E130-I Pressing Machine |
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 650 (T) |
| Hose Size | 6 - 64 (mm) |
| Max. Opening | 31 (mm) |
| Die Sets | 13 |
| Die Set Type | P32 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) / 380 (V) |
| Motor Power | 3.75 (KW) |
| Length | 650 (mm) |
| Width | 550 (mm) |
| Height | 1360 (mm) |
| Weight | 310 (KG) |
Hose Crimper P32 Die Sets
| Die No. # | Crimping (mm) | Length (mm) |
|---|---|---|
| 6* | 6.0 - 8.0 | 55 |
| 8* | 8.0 - 10.0 | 55 |
| 10* | 10.0 - 12.0 | 55 |
| 12* | 12.0 - 14.0 | 55 |
| 14 | 14.0 - 16.0 | 55 |
| 16 | 16.0 - 19.0 | 55 |
| 19 | 19.0 - 22.0 | 55 |
| 22 | 22.0 - 26.0 | 70 |
| 26 | 26.0 - 30.0 | 70 |
| 30 | 30.0 - 34.0 | 70 |
| 34 | 34.0 - 39.0 | 75 |
| 39 | 39.0 - 45.0 | 75 |
| 45 | 45.0 - 51.0 | 90 |
| 51 | 51.0 - 57.0 | 90 |
| 57 | 57.0 - 63.0 | 100 |
| 63 | 63.0 - 69.0 | 110 |
| 69 | 69.0 - 74.0 | 110 |
| 74* | 74.0 - 78.0 | 110 |
| 78* | 78.0 - 87.0 | 110 |
Note
- "*" indicates non-standard mold
- Customized die sets with different sizes and shapes are available
- Special voltages 110V, 208V, 240V, 415V are available
- Foot pedal included as standard

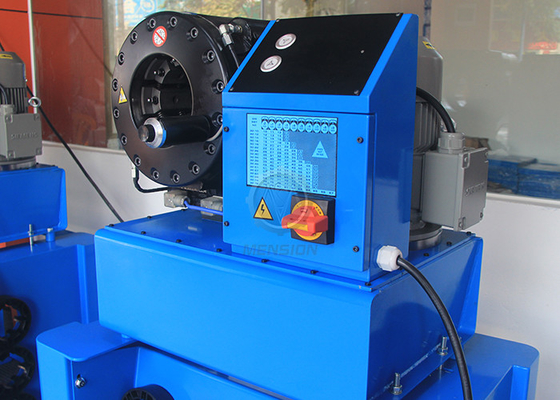

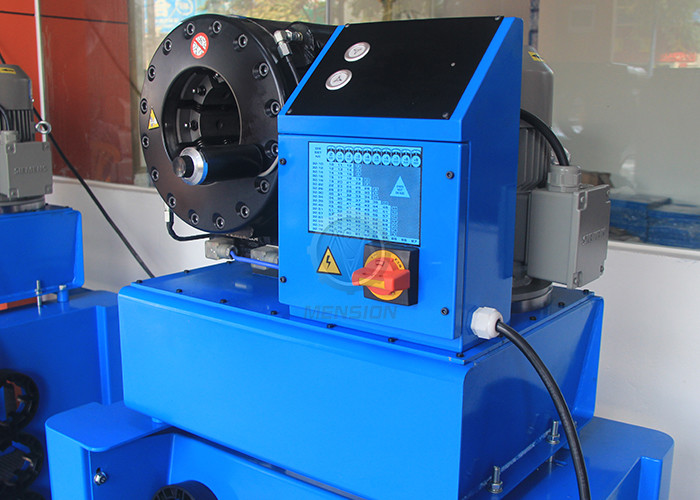

Detailed Pictures
► 40Cr forging head, top hardness, great anti-wear ability
► World famous solenoid valve brand, Germany "REXROTH" valve system, high stability
► Safe mold storage, quick change tool for mold improves productivity
► "SIEMENS" high quality motor, safe and stable
Samples of Pressing
