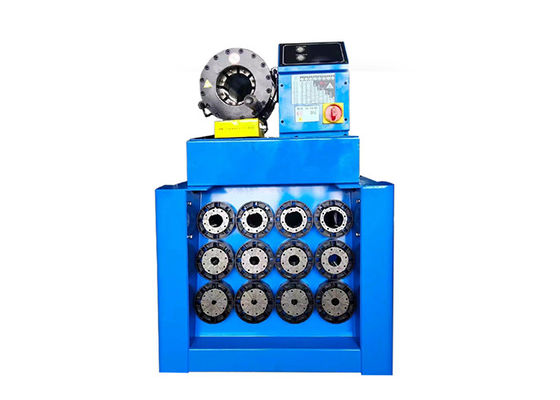

Portable Hydraulic Hose Crimping Tool Two Inches Hydraulic Hose Maker Machine

  • Portable Hydraulic Hose Crimping Tool Two Inches Hydraulic Hose Maker Machine
  • Portable Hydraulic Hose Crimping Tool Two Inches Hydraulic Hose Maker Machine
  • Portable Hydraulic Hose Crimping Tool Two Inches Hydraulic Hose Maker Machine
Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-SP32
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 1/4 - 2.5inch
Die Sets 13 Color Blue
Max. Opening 31mm Crimping Force 650T
Product Name SP32 Portable Hydraulic Hose Crimper Application Workshop
System Pressure 31.5Mpa Power 3.75KW
Size 650*550*1360mm Weight 310Kg
High Light

MS-SP32 Portable Hydraulic Hose Crimper

,

380V Portable Hydraulic Hose Crimper

,

380V Hydraulic Hose Crimper
Leave a Message
Product Description



2.5 INCH PORTABLE HOSE CRIMPER SP32

DESCRIPTION



MS-SP32 portable hydraulic hose crimping machine is famous for its low cost and good performance. It use world famous SIEMENS motor and EATON buttons to improve the whole configuration.



ADVANTAGES



1. Pressure guage show the pressure clearly;

2. Die sets with high hardness;

3. Quick change for die sets installing, improve the efficiency;

4. Crimping size micrometer with high accuracy.



TECHNICAL DATA



Model

MS-SP32 Portable Hydraulic Hose Crimper

Crimping Range

14 - 87 (mm)

Crimping Force

650 (T)

Hose Size

1/4 - 2.5 (inch)

Max. Opening

31 (mm)

Die Sets

13

Die Set Type

P32

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

3.75 (KW)

Length

650 (mm)

Width

550 (mm)

Height

1360 (mm)

Weight

310 (KG)



Portable Hydraulic Hose Crimping Tool Two Inches Hydraulic Hose Maker Machine 0

P32 SERIES CRIMPER DIE SETS



Die No.

Crimping Range

 Length

6*

6 - 8mm

 55

8*

8 - 10mm

 55

10*

10 - 12mm

 55

12*

12 - 14mm

 55

14

14 - 16mm

 55

16

16 - 19mm

 55

19

19 - 22mm

 55

22

22 - 26mm

 70

26

26 - 30mm

 70

30

30 - 34mm

 70

34

34 - 39mm

 75

39

39 - 45mm

 75

45

45 - 51mm

 90

51

51 - 57mm

 90

57

57 - 63mm

 100

63

63 - 69mm

 110

69

69 - 78mm

 110



NOTE



- * for non standard die sets;

- Customized die sets are available;

- Special voltage 110V, 208V, 240V, 415V are availbale;



Portable Hydraulic Hose Crimping Tool Two Inches Hydraulic Hose Maker Machine 1



Portable Hydraulic Hose Crimping Tool Two Inches Hydraulic Hose Maker Machine 2



Portable Hydraulic Hose Crimping Tool Two Inches Hydraulic Hose Maker Machine 3
