50mm Copper Tube Fittings Hydraulic Pipe Crimping Tool Hose Crimper Karrykrimp
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Crimping Range | 14 - 87mm | Hose Size | 1/4 - 2.5inch |
|---|---|---|---|
| Die Sets | 13 | Color | Blue |
| Max. Opening | 31mm | Crimping Force | 650T |
| System Pressure | 31.5Mpa | Power | 3.75KW |
| Size | 650*550*1360mm | Weight | 310Kg |
| Highlight | 31mm Hydraulic Hose Crimping Machine,SP32 Hydraulic Hose Crimping Machine,Quick Opening Hydraulic Hose Crimper |
||
Product Description

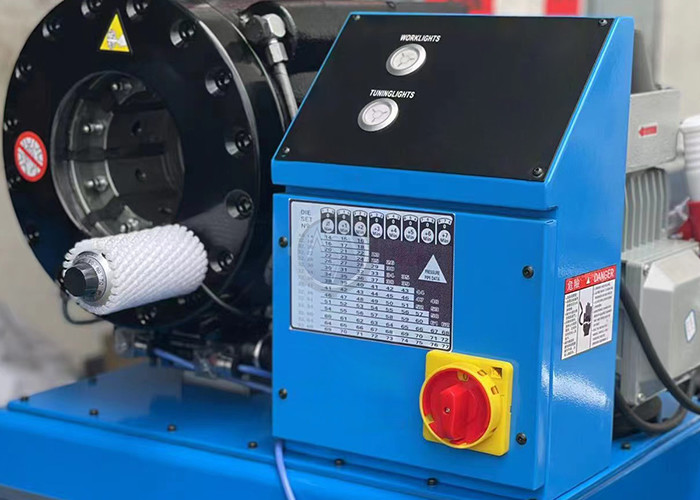

HYDRAULIC PIPE CRIMPING MACHINE SP32
DESCRIPTION
SP32 is hose crimper machine for high pressure flexible hose assembly making from 1/4 inch to 2.5 inch 1 wire to 6 wires. It is the ideal choice for single piece hose production.
ADVANTAGES
► Quick change for die sets, so the die sets can be changed at one time
► Double conical master die, big crimping force
► Foot pedal frees the hands
TECHNICAL DATA
|
Model |
MS-SP32 Crimping Machine |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
650 (T) |
|
Hose Size |
1/4 - 2.5 (inch) |
|
Max. Opening |
31 (mm) |
|
Die Sets |
13 |
|
Die Set Type |
P32 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
3.75 (KW) |
|
Length |
650 (mm) |
|
Width |
550 (mm) |
|
Height |
1360 (mm) |
|
Weight |
310 (KG) |
P32 STANDARD DIE SETS
|
Die No. |
Crimping (mm) |
Length (mm) |
|
6* |
6.0 - 8.0 |
55 |
|
8* |
8.0 - 10.0 |
55 |
|
10* |
10.0 - 12.0 |
55 |
|
12* |
12.0 - 14.0 |
55 |
|
14 |
14.0 - 16.0 |
55 |
|
16 |
16.0 - 19.0 |
55 |
|
19 |
19.0 - 22.0 |
55 |
|
22 |
22.0 - 26.0 |
70 |
|
26 |
26.0 - 30.0 |
70 |
|
30 |
30.0 - 34.0 |
70 |
|
34 |
34.0 - 39.0 |
75 |
|
39 |
39.0 - 45.0 |
75 |
|
45 |
45.0 - 51.0 |
90 |
|
51 |
51.0 - 57.0 |
90 |
|
57 |
57.0 - 63.0 |
100 |
|
63 |
63.0 - 69.0 |
110 |
|
69 |
69.0 - 74.0 |
110 |
| 74 | 74.0 - 78.0 | 110 |
| 78 | 78.0 - 87.0 | 110 |
NOTE
• " * " for non standard die sets
• Customized die sets are available
• Special voltage 110V, 208V, 240V, 415V are availbale
► HIGH QUALITY CR12MOV 13 DIE SETS
13 die sets hardness 59-63HRC, with quick change tool, productivity improve much.
► COMPACT STRUCTURE
Compact in structure small volume, crimping with big force
► APPLICATIONS
SP32 is a hose crimper with high configuration, it is suitable for crimping high pressure stainless steel braided hydraulic ruber hose, cable and wires, steel iron square or round tubes, brake hose lines in automotive system, air suspension or springs.
