Manual Hose Crimper Hydraulic Fitting Crimping Machine P16HP 1 Inch Hose Press

  • Manual Hose Crimper Hydraulic Fitting Crimping Machine P16HP 1 Inch Hose Press
  • Manual Hose Crimper Hydraulic Fitting Crimping Machine P16HP 1 Inch Hose Press
  • Manual Hose Crimper Hydraulic Fitting Crimping Machine P16HP 1 Inch Hose Press
Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-P16HP
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 45mm Hose Size 1/4 - 1inch
Die Sets 7 Color Blue
Max. Opening 20mm Crimping Force 150T
Pump ENERPAC Power Hand Pump
Size 400*320*300mm Weight 32Kg
Highlight

1 Inch manual hydraulic crimping machine

,

P16HP manual hydraulic crimping machine

,

1 Inch manual hose crimping machine
Leave a Message
Product Description

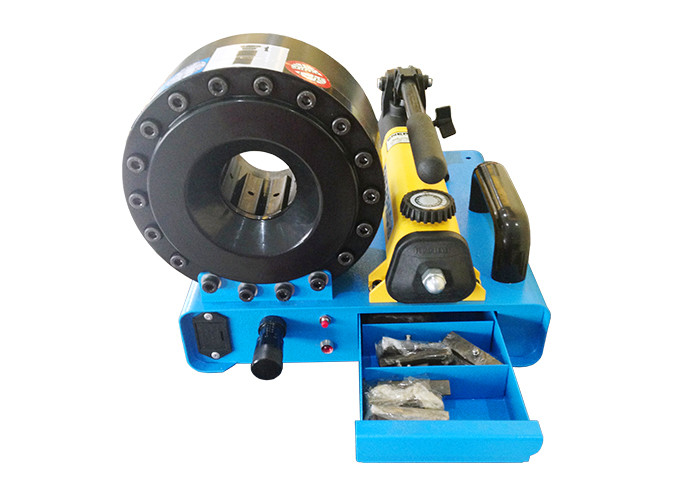

1 INCH HYDRAULIC HOSE CRIMPING MACHINE MS-P16HP

DESCRIPTION



MS-P16HP is a manual hose crimper with hand pump. It is the ideal choice for field service when repairs must be made on site. The light weight makes P16HP be easily carried to any place.



ADVANTAGES



1) Small size with light weight

2) World famous 'EMERPAC' hydraulic pump

3) High precision

4) Good stability



TECHNICAL DATA



Model P16HP Crimping Machine
Crimping Range 14 - 47 (mm)
Crimping Force 150 (T)
Hose Size 1/4 - 1 (inch)
Max. Opening 20mm
Die Sets 7
Die Set Type P16
System Pressure 31.5 (Mpa)
Accuracy 0.01 (mm)
Control MS
Standard Voltage

Manual Pump
Motor Power Manual Pump
Length 400 (mm)
Width 320 (mm)
Height 300 (mm)
Weight 32 (KG)

Manual Hose Crimper Hydraulic Fitting Crimping Machine P16HP 1 Inch Hose Press 0



P16 CRIMPER DIE SETS



Die No. Crimping Range Length
6* 6 - 8mm 55
8* 8 - 10mm 55
10* 10 - 12mm 55
12* 12 - 14mm 55
14 14 - 16mm 55
16 16 - 19mm 55
19 19 - 23mm 55
23 23 - 27mm 55
27 27 - 31mm 55
31 31 - 35mm 65
35 35 - 41mm 65



NOTE



• * for non standard die sets;

• Customized die sets are available;

• Max. opening is the stroke between die sets fully closed and fully opened.



OPTIONAL



• Quick Change Tool

• Quick Change Die Set Rack

• UC control



► LIGHT WEIGHT



32kg net weight, easy to move by hand

Manual Hose Crimper Hydraulic Fitting Crimping Machine P16HP 1 Inch Hose Press 1



► 7 DIE SETS



Die sets with high hardness HRC59-63

Manual Hose Crimper Hydraulic Fitting Crimping Machine P16HP 1 Inch Hose Press 2



► FAST DELIVERY TIME



Manual Hose Crimper Hydraulic Fitting Crimping Machine P16HP 1 Inch Hose Press 3



► APPLICATIONS



Poratble P16HP crimper can be used more flexible on machinery repair or movable hose assembly making.Manual Hose Crimper Hydraulic Fitting Crimping Machine P16HP 1 Inch Hose Press 4
