Specifications
Highlight:
Ergonomical AC Pipe Crimping Machine
,Compact AC Pipe Crimping Machine
,AC P16HP Crimping Machine
Crimping Range:
14 - 45mm
Hose Size:
1/4 - 1inch
Die Sets:
7
Color:
Blue
Max. Opening:
20mm
Crimping Force:
150T
Product Name:
P16HP AC Hose Crimping Machine
Application:
Workshop
System Pressure:
31.5Mpa
Power:
Hand Pump
Size:
400*320*300mm
Weight:
32Kg
Key Attributes
Brand Name:
MENSION
Model Number:
MS-P16HP
Place of Origin:
CN
Certification:
CE RoHS
Minimum Order Quantity:
1 Set
Price:
Contact Us
Supply Ability:
1000 Sets Per Month
Delivery Time:
2 - 7 Working Days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Standard Packaging:
One Plywood For One Set
Product Description

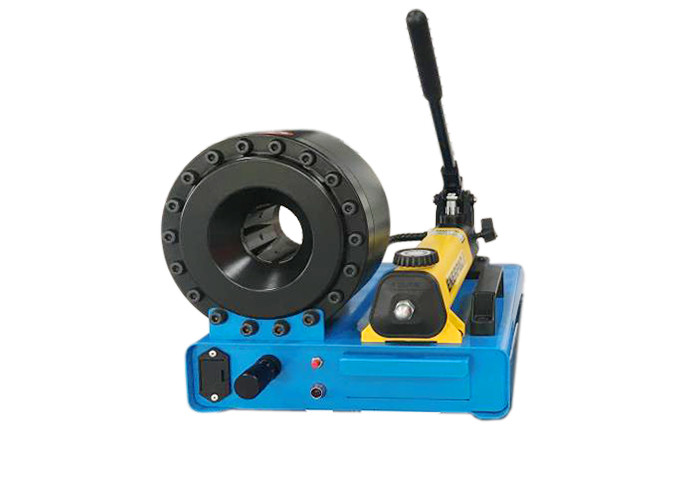

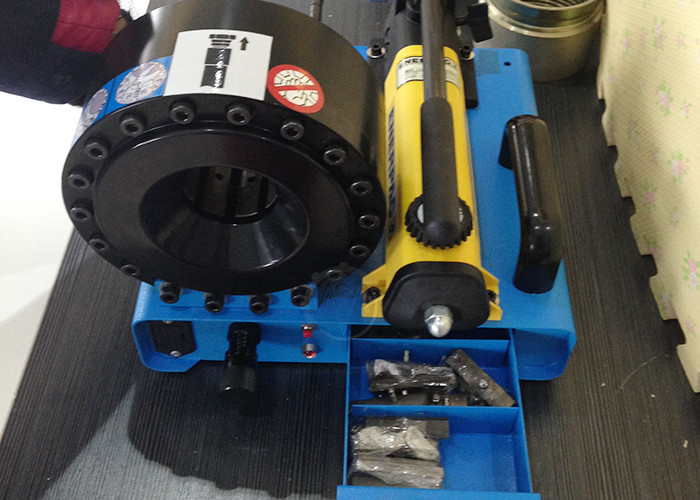

ERGONOMICAL AC HOSE CRIMPING MACHINE MS-P16HP
DESCRIPTION
MS-P16HP ac hose crimping machine is a small machine with light weight. It is suitable for hose from 1/4 to 1 inch crimping.
ADVANTAGES
1. Small size, can be easily take to any place;
2. Die sets with high hardness;
3. Diameter control with high accuracy;
4. Famous brand hydraulic pump.
TECHNICAL DATA
| Model | P16HP AC Hose Crimping Machine |
| Crimping Range | 14 - 47 (mm) |
| Crimping Force | 150 (T) |
| Hose Size | 1/4 - 1 (inch) |
| Max. Opening | 20 (mm) |
| Die Sets | 7 |
| Die Set Type | P16 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage |
Manual Pump |
| Motor Power | Manual Pump |
| Length | 400 (mm) |
| Width | 320 (mm) |
| Height | 300 (mm) |
| Weight | 32 (KG) |
P16 HOSE CRIMPER DIE SETS
| Die No. | Crimping Range | Length |
| 6* | 6 - 8 mm | 55 |
| 8* | 8 - 10 mm | 55 |
| 10* | 10 - 12 mm | 55 |
| 12* | 12 - 14 mm | 55 |
| 14 | 14 - 16 mm | 55 |
| 16 | 16 - 19 mm | 55 |
| 19 | 19 - 23 mm | 55 |
| 23 | 23 - 27 mm | 55 |
| 27 | 27 - 31 mm | 55 |
| 31 | 31 - 35 mm | 65 |
| 35 | 35 - 41 mm | 65 |
NOTE
- * for non standard die sets;
- Customized die sets are available;
- Max. opening is the stroke between die sets fully closed and fully opened.
OPTIONAL
- Quick Change Tool
- Quick Change Die Set Rack;
- UC control;
