xProduct Details
| Crimping Range | 14 - 87mm | Hose Size | 1/4 - 2.5inch |
|---|---|---|---|
| Die Sets | 13 | Color | Blue |
| Max. Opening | 31mm | Crimping Force | 280T |
| Control | MS | Power | 2.2KW |
| Size | 630*540*420mm | Weight | 150Kg |
| High Light | 24V high pressure hydraulic hose crimper,Mobile high pressure hydraulic hose crimper,Portable high pressure hose crimper |
||
Product Description

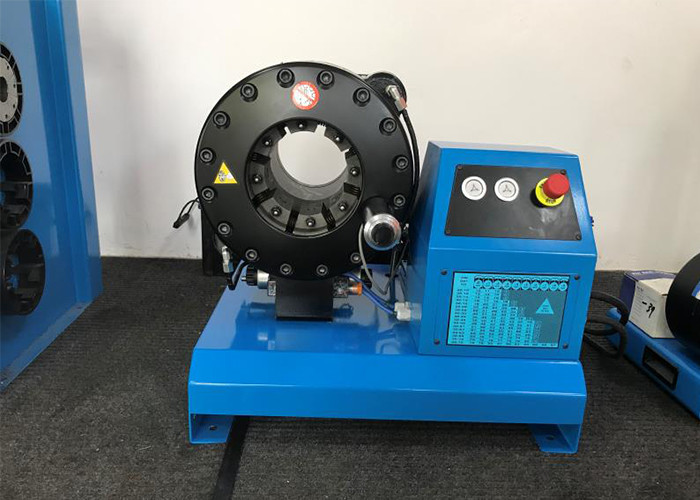

24V HOSE CRIMPING MACHINE MS-P32CS
DESCRIPTION

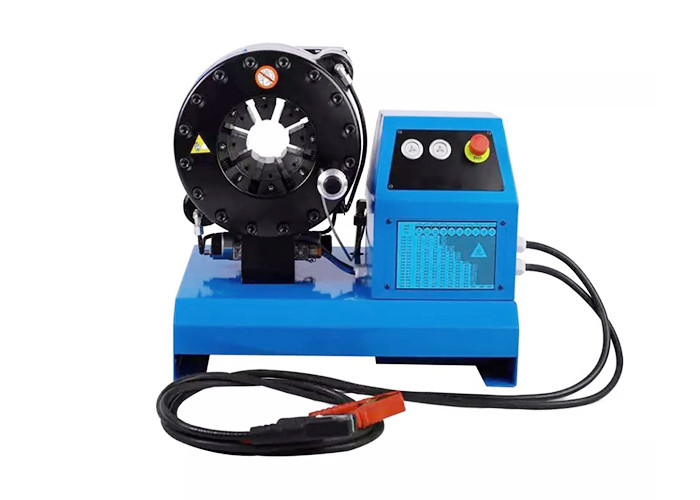

MS-P32CS cable crimping machine is a special hose crimper which is supplied by car 24V motor. It is the ideal choice for crimping in the wild with a mobile van.
MAIN FEATURES
1) Movable on a car, make on site crimping available
2) High quality components, big crimping range
3) Quick crimping and opening, high productivity
TECHNICAL DATA
|
Model |
MS-P32CS Hydraulic Crimping Machine |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
280 (T) |
|
Hose Size |
1/4 - 2.5 (inch) |
|
Max. Opening |
31 (mm) |
|
Die Sets |
13 |
|
Die Set Type |
P32 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
24 (V) |
|
Motor Power |
2.2 (KW) |
|
Length |
630 (mm) |
|
Width |
540 (mm) |
|
Height |
420 (mm) |
|
Weight |
150 (KG) without oil |
P32 CRIMPING MACHINE DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
55 |
|
8* |
8 - 10mm |
55 |
|
10* |
10 - 12mm |
55 |
|
12* |
12 - 14mm |
55 |
|
14 |
14 - 16mm |
55 |
|
16 |
16 - 19mm |
55 |
|
19 |
19 - 22mm |
55 |
|
22 |
22 - 26mm |
70 |
|
26 |
26 - 30mm |
70 |
|
30 |
30 - 34mm |
70 |
|
34 |
34 - 39mm |
75 |
|
39 |
39 - 45mm |
75 |
|
45 |
45 - 51mm |
90 |
|
51 |
51 - 57mm |
90 |
|
57 |
57 - 63mm |
100 |
|
63 |
63 - 69mm |
110 |
|
69 |
69 - 76mm |
110 |
| 74* | 74 - 80mm | 110 |
| 78* | 78 - 87mm | 110 |
NOTE
- " * " for non standard die sets;
- Customized die sets are available;
- Voltage 12V is availbale;
OPTIONAL
- Quick Change Tool
- Quick Change Die Set Rack
► DOUBLE BEVEL CRIMPING DIE BASE
One piece oil cylinder, double bevel die base, high accuracy and crimping force
► DIE SETS WITH HIGH HARDNESS
13 die sets for hose from 1/4 to 2 inch with high pressure
► MICROMETER FOR CONTROLLING DIAMETER
High precision with good stability, easy for diameter set, large scale
► HIGH QUALITY RAW STEEL MATERIALS
► APPLICATIONS
For hydraulic high pressure oil rubber hose assembly making, low pressure water or air pipe pressing, steel tube
iron tubes swaging, wire rope and cable pressing, lock device making, etc.
