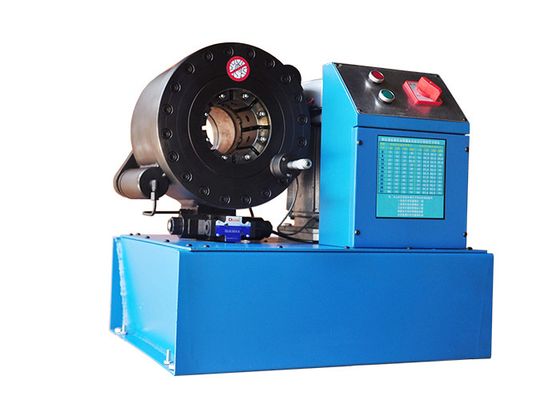

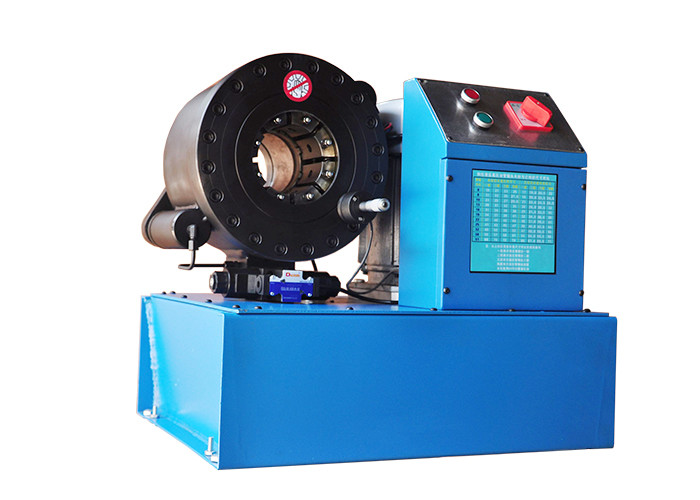

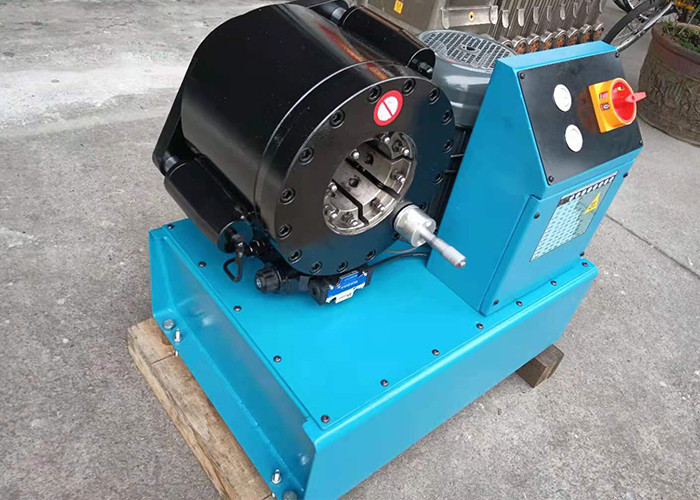

HYDRAULIC HOSE CRIMPING MACHINE MS - E38 FLEXIBLE
DESCRIPTION
E38 is the most famous hose crimper with its compact structure and low cost. It is suitable for high pressure hydraulic rubber hose from 1/4 to 2 inch making.
MAIN FEATURES
1) Quick opening, large productivity;
2) Low noise, silent crimping;
3) Advanced oil transfer design, save energy;
4) High hardness solenoid valve stem, long life.
TECHNICAL DATA
|
Model |
MS - E38 Pressing Machine |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
640 (T) |
|
Hose Size |
1/4 - 2 (inch) 4SH |
|
Max. Opening |
31 (mm) |
|
Die Sets |
10 |
|
Die Set Type |
38 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
4 (KW) |
|
Length |
630 (mm) |
|
Width |
450 (mm) |
|
Height |
600 (mm) |
|
Weight |
200 (KG) without oil |
| Hydraulic Oil | 50 (L) |
38 CRIMPING MACHINE DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8 mm |
35 |
|
8* |
8 - 10 mm |
35 |
|
10* |
10 - 12 mm |
35 |
|
12* |
12 - 14 mm |
35 |
|
14 |
14 - 16 mm |
60 |
|
16 |
16 - 20 mm |
60 |
|
20 |
20 - 22 mm |
60 |
|
22 |
22 - 26 mm |
60 |
|
26 |
26 - 30 mm |
60 |
|
30 |
30 - 38 mm |
70 |
|
38 |
38 - 46 mm |
70 |
|
46 |
46 - 54 mm |
80 |
|
54 |
54 - 64 mm |
80 |
|
64 |
64 - 69 mm |
80 |
|
69* |
69 - 76 mm |
110 |
NOTE
1) Customized die sets are available with different size or shape;
2) Special voltage such as 110V, 208V, 240V, 415V (60HZ) are availbale;
3) Foot pedal is available to make the hands free;
4) " * " for non standard die sets
► DOUBLE BEVEL DIE BASE
Die base is with advanced two bevels structure. Higher accuracy and force.
► MORDEN HYDRAULIC VALVE SYSTEM
High system pressure, easy maintenance.
► 10 SETS HUMAN DESIGN DIES
Die sets for hydraulic stainless steel braided hose from 1/4 inch to 2 inch.
► MICROMETER WITH HIGH STABILITY
Easy for maintenance, high accuracy, convenient to use
► APPLICATION FOR E38 HOSE CRIMPER
► FAST DELIVERY FOR MOST MACHINES
-
