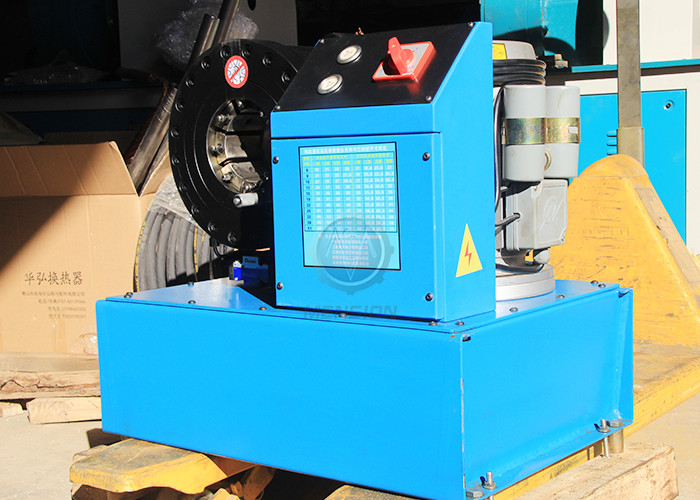

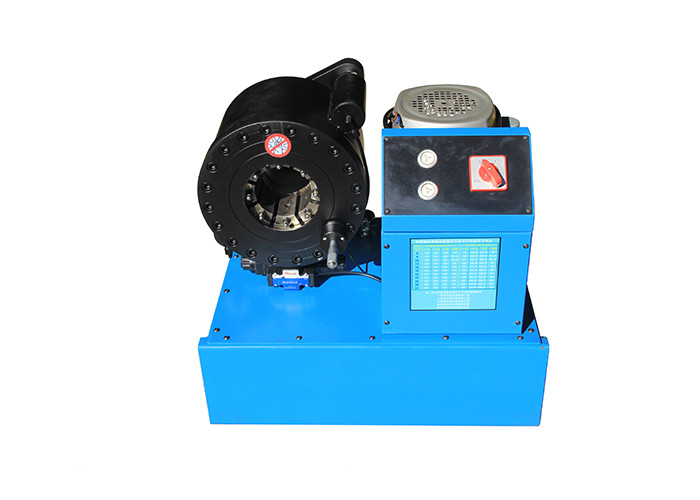

AUTOMOTIVE BRAKE HOSE CRIMPING MACHINE MS-E38
DESCRIPTION
MS-E38 is with compact structure but big in crimping force. It is able to press heavy duty hydraulic high pressure high tensile steel wire braided and spiraled hose. This crimping machine deforms the metal connector under the action of pressure, thereby steadily putting on the rubber pipe, such as (hydraulic machinery, injection molding machine, excavator, loader, crane, automotive air -conditioning tube). The equipment selected by the excavator maintenance point.
MAIN FEATURES
1) Fast opening valve, improve efficiency;
2) Small size, can be placed on any table surface or on the ground;
3) Advanced die sets install technology, more steady;
4) High hardness solenoid valve stem, long life.
TECHNICAL DATA
|
Model |
MS-E38 Brake Hose Crimping Machine |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
640 (T) |
|
Hose Size |
1/4 - 2 (inch) 4SH |
|
Max. Opening |
31 (mm) |
|
Die Sets |
10 |
|
Die Set Type |
38 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
4 (KW) |
|
Length |
630 (mm) |
|
Width |
450 (mm) |
|
Height |
600 (mm) |
|
Weight |
200 (KG) |
| Hydraulic Oil | 50 (L) |
38 CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
35 |
|
8* |
8 - 10mm |
35 |
|
10* |
10 - 12mm |
35 |
|
12* |
12 - 14mm |
35 |
|
14 |
14 - 16mm |
60 |
|
16 |
16 - 20mm |
60 |
|
20 |
20 - 22mm |
60 |
|
22 |
22 - 26mm |
60 |
|
26 |
26 - 30mm |
70 |
|
30 |
30 - 38mm |
70 |
|
38 |
38 - 46mm |
70 |
|
46 |
46 - 54mm |
80 |
|
54 |
54 - 64mm |
80 |
|
64 |
64 - 69mm |
80 |
|
69* |
69 - 76mm |
100 |
NOTE
1) Customized die sets are available with different size or shape;
2) Special voltage such as 110V, 208V, 240V, 415V (60HZ) are availbale;
3) Foot pedal is available to make the hands free;
4) * for non standard die sets.
-
