High Speed Hose Cutting Equipment 38CS Flexible Rubber Steel Braided Hose Cutter Tool

Place of Origin CN
Brand Name MENSION
Certification CE ROHS
Model Number MS-38CS
Minimum Order Quantity 1 set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 38CS Hose Cutting Machine Application Workshop
Hose Size 1/8'' - 2'' Cutting Blade 1 Pcs
Skiving Mandrel 8 Pcs Color Blue
Cutting Speed 2500rpm Skiving Speed 500r/min
Dimension 670*520*1100mm Weight 75KG
High Light

High Speed hose cutting equipment

,

Flexible hose cutting equipment

,

Rubber Steel braided hose cutter tool

Leave a Message
Product Description

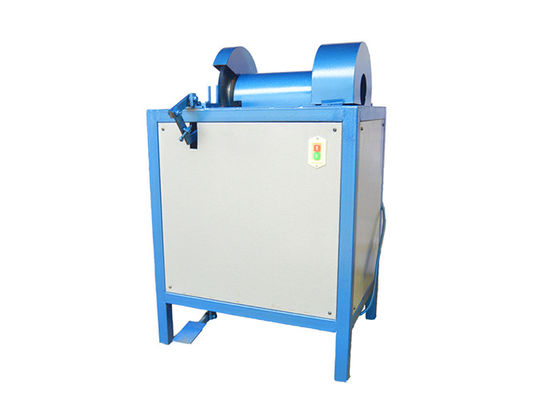

HYDRAULIC HOSE

CUTTING STRIPPING MACHINE 38CS


DESCRIPTION



MS-38CS is suitable for high pressure hydraulic rubber hose cutting to a needed length and skiving the rubber layer, so the hose can be connected well withe the ferrule.



ADVANTAGES



► Foot pedal to free the hands for holding the hose;

► Safety cover to pretect the operator from harm;

► Human design height;

► High speed cutting blade with top hardness.



TECHNICAL DATA



Model

MS-38CS Hose Cutting and Stripping Machine

Hose Size

1/8'' - 2''

Cutting Speed

2500 (rpm)

Cutting Blade

330*32 (mm)

Cutting Blade No.

1 (pcs)

Skiving Speed

500 (r/min)

Skiving Mandrel

8 (pcs)

Length

670 (mm)

Width

520 (mm)

Height

1100 (mm)

Weight

75 (kg)



High Speed Hose Cutting Equipment 38CS Flexible Rubber Steel Braided Hose Cutter Tool 0



PICTURES AND DESCRIPTION



► HIGH SPEED STEEL CUTTER



The cutting balde use high speed steel, with good hardness.



High Speed Hose Cutting Equipment 38CS Flexible Rubber Steel Braided Hose Cutter Tool 1



► SAFETY CONCERN COVER



Protect the user during hose cutting and stripping.



High Speed Hose Cutting Equipment 38CS Flexible Rubber Steel Braided Hose Cutter Tool 2



► DOUBLE RUBBER CUTTER DESIGN



When doing hose stripping, two cutter can increase the speed and productivity.



High Speed Hose Cutting Equipment 38CS Flexible Rubber Steel Braided Hose Cutter Tool 3
