Workshop Used Hose Crimping Machine 51DC For Machinery Hose Repair Service

Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-51DC
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 1/4 - 2inch
Die Sets 10 Color Blue
Max. Opening 30mm Crimping Force 300T
Product Name 51DC Used Hydraulic Hose Crimping Machine Application Workshop
System Pressure 31.5Mpa Power 2.2KW
Size 650*600*600mm Weight 170Kg
High Light

51DC Repair Used Hose Crimping Machine

,

Hose Repair Used Hose Crimping Machine

,

51DC Hose Crimping Machine

Leave a Message
Product Description

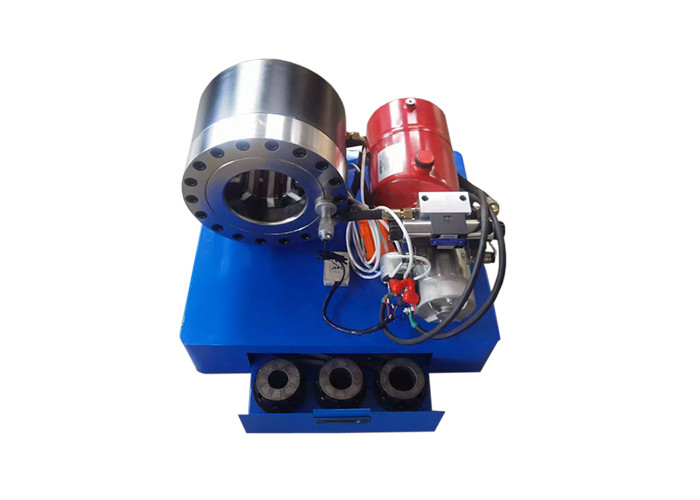

HYDRAULIC HOSE CRIMPING MACHINE 51DC


DESCRIPTION



New type MS-51DC hose crimping machine is used for hydraulic high pressure stainless steel braided rubber hose crimping. It has light weight and small volume.


MAIN FEATURES


• Convenient die sets intalling;

• One piece forged hydraulic cylinder;

• High precision micrometer;

• Pedal press, more convenient.

TECHNICAL DATA



Model

MS-51DC Hydraulic Hose Crimper Machine

Crimping Range

14 - 87 (mm)

Crimping Force

300 (T)

Hose Size

1/4 - 2 (inch)

Max. Opening

30 (mm)

Die Sets

10

Die Set Type

51

System Pressure

31.5 (Mpa)

Accuracy

0.05 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

3 (KW)

Length

650 (mm)

Width

600 (mm)

Height

600 (mm)

Weight

170 (KG)


Workshop Used Hose Crimping Machine 51DC For Machinery Hose Repair Service 0

51 CRIMPER DIE SETS



Die No.

Crimping (mm)

Length (mm)

6*

6.0 - 8.0

35

8*

8.0 - 10.0

35

10*

10.0 - 12.0

35

12*

12.0 - 15.0

35

15

15.0 - 19.0

60

19

19.0 - 23.0

60

23

23.0 - 26.0

60

26

26.0 - 31.0

60

31

31.0 - 36.0

70

36

36.0 - 41.0

70

41

41.0 - 47.0

70

47

47.0 - 55.0

80

55

55.0 - 63.0

80

63

63.0 - 69.0

80

69*

69.0 - 76.0

90


 NOTE


► " * " for non standard die sets

► Customized die sets are available
► AC voltage 220V, 380V, 110V, 208V, 240V, 415V are availbale



SAMPLES



Workshop Used Hose Crimping Machine 51DC For Machinery Hose Repair Service 1
