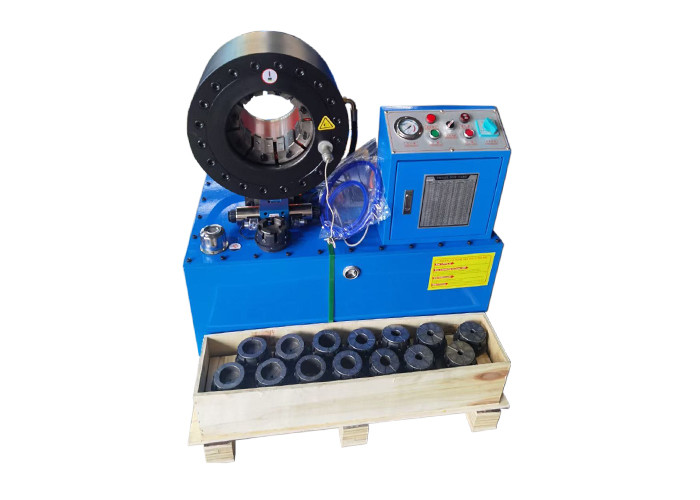

Hydraulic Hose Pressing Machine DX68 Hose Crimping Machine Hose Crimper

  • Hydraulic Hose Pressing Machine DX68 Hose Crimping Machine Hose Crimper
  • Hydraulic Hose Pressing Machine DX68 Hose Crimping Machine Hose Crimper
  • Hydraulic Hose Pressing Machine DX68 Hose Crimping Machine Hose Crimper
Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-51
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 1/4 - 2inch
Die Sets 10 Color Blue
Max. Opening 30mm Crimping Force 500T
Product Name MS-51 Hose Crimping Machine Application Workshop
System Pressure 31.5Mpa Power 3KW
Size 670*430*820mm Weight 260Kg
High Light

31.5Mpa DX68 Hose Crimping Machine

,

380V DX68 Hose Crimping Machine

,

51 Hose Crimping Machine
Leave a Message
Product Description



DX TYPES HYDRAULIC HOSE CRIMPING MACHINE MS-51

DESCRIPTION



MS-51 hose crimper machine has same configuration with DX68, but die sets are add hot polishing. It is the ideal choice for single hose assembly production work.



MAIN FEATURES



1. One piece forged steel hydraulic cylinder, long life;

2. Multiple operating mode, more convenient;

3. Pedal switch and button press, more flexible;

4. Safety die sets box.



TECHNICAL DATA



Model

MS-51 Hose Crimping Machine

Crimping Range

14 - 87 (mm)

Crimping Force

500 (T)

Hose Size

1/4 - 2 (inch)

Max. Opening

30 (mm)

Die Sets

10

Die Set Type

51

System Pressure

31.5 (Mpa)

Accuracy

0.05 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

3 (KW)

Length

670 (mm)

Width

430 (mm)

Height

820 (mm)

Weight

260 (KG)



Hydraulic Hose Pressing Machine DX68 Hose Crimping Machine Hose Crimper 0

51 SERIES CRIMPER DIE SETS



Die No.

Crimping Range

 Length

6*

6 - 8 mm

 35

8*

8 - 10 mm

 35

10*

10 - 12 mm

 35

12*

12 - 15 mm

 35

15

15 - 19 mm

 60

19

19 - 23 mm

 60

23

23 - 26 mm

 60

26

26 - 31 mm

 60

31

31 - 36 mm

 70

36

36 - 41 mm

 70

41

41 - 47 mm

 70

47

47 - 55 mm

 80

55

55 - 63 mm

 80

63

63 - 69 mm

 80

69*

69 - 76 mm

 100



NOTE



- * for non standard die sets;

- Customized die sets are available;

- Special voltage 110V, 208V, 240V, 415V are availbale;



OPTIONAL



- Quick Change Tool

- Quick Change Die Set Rack;



Hydraulic Hose Pressing Machine DX68 Hose Crimping Machine Hose Crimper 1



Hydraulic Hose Pressing Machine DX68 Hose Crimping Machine Hose Crimper 2



Hydraulic Hose Pressing Machine DX68 Hose Crimping Machine Hose Crimper 3



Hydraulic Hose Pressing Machine DX68 Hose Crimping Machine Hose Crimper 4



Hydraulic Hose Pressing Machine DX68 Hose Crimping Machine Hose Crimper 5
