POWERFUL HYDRAULIC HOSE CRIMPING MACHINE MS-E150
DESCRIPTION

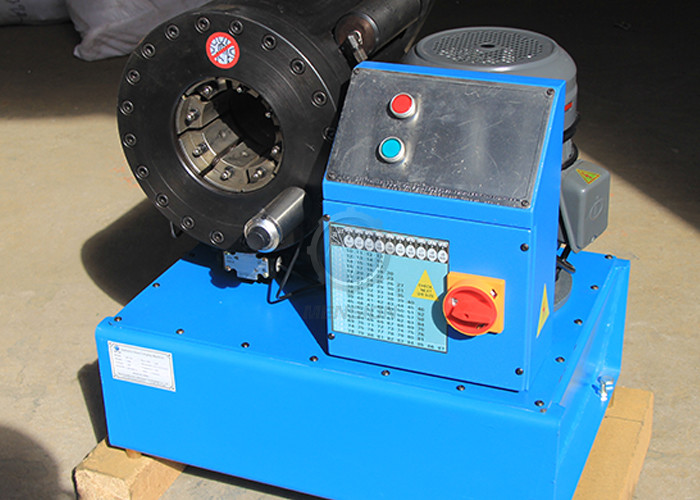

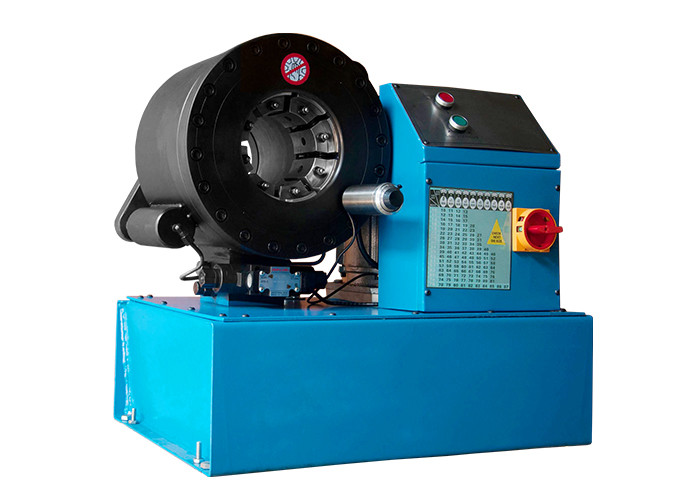

MS-E150 hose crimper machine is a three inch model with die sets 13. It adopts world famous hydraulic cylinder making technology, makes the machine crimping with bigger power and easy in maintenance.
MAIN FEATURES
1. High hardness with one piece structure;
2. Advanced crimping control micrometer, high accuracy;
3. Mold with quality steel after heat processing;
4. Famous spare parts, longer service time.
TECHNICAL DATA
|
Model |
MS-E150 Used Hydraulic Hose Crimping Machine |
|
Crimping Range |
14 - 127 (mm) |
|
Crimping Force |
780 (T) |
|
Hose Size |
1/4 - 3 (inch) |
|
Max. Opening |
35 (mm) |
|
Die Sets |
15 |
|
Die Set Type |
150 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
3 (KW) |
|
Length |
650 (mm) |
|
Width |
550 (mm) |
|
Height |
650 (mm) |
|
Weight |
250 (KG) |
150 CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
55 |
|
8* |
8 - 10mm |
55 |
|
10* |
10 - 12mm |
55 |
|
12* |
12 - 14mm |
55 |
|
14 |
14 - 16mm |
55 |
|
16 |
16 - 19mm |
55 |
|
19 |
19 - 22mm |
55 |
|
22 |
22 - 26mm |
70 |
|
26 |
26 - 30mm |
70 |
|
30 |
30 - 34mm |
70 |
|
34 |
34 - 39mm |
75 |
| 39 | 39 - 45mm | 75 |
|
45 |
45 - 51mm |
90 |
|
51 |
51 - 57mm |
90 |
| 57 | 57 - 63mm | 100 |
|
63 |
63 - 69mm |
110 |
|
69 |
69 - 74mm |
110 |
| 74 | 74 - 78mm | 110 |
| 78 | 78 - 87mm | 110 |
NOTE
1) Customized die sets are available with different size or shape;
2) Special voltage such as 110V, 208V, 240V, 415V are availbale;
3) Foot pedal is available to make the hands free;
4) * for non standard die sets.
-
