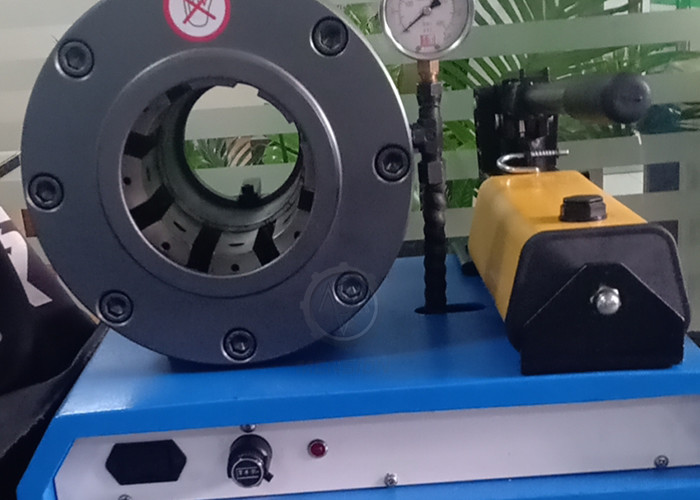

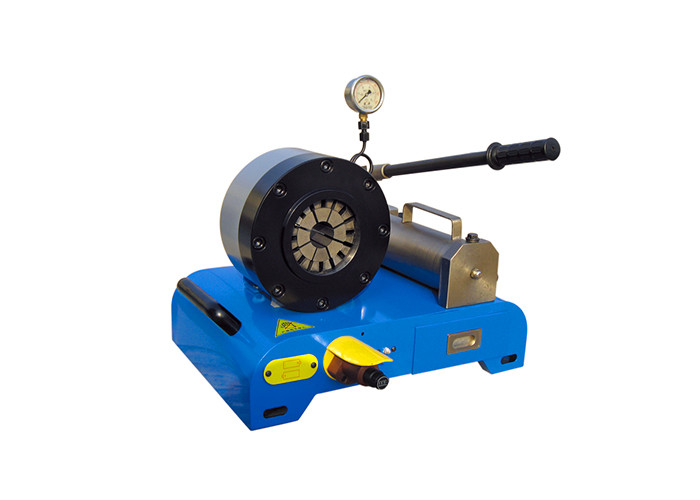

BRAKE HOSE CRIMPING MACHINE MS-P20HP
DESCRIPTION
MS-P20HP is a manual portable hose crimping machine. It uses high quality hand pump with a easy pressure release device, has been widely used in the site crimping for high pressure oil hose and other pipe and cables.
ADVANTAGES
1. Movable with light weight and small size;
2. Big crimping force;
3. Human design die sets with high hardness;
4. High accurate micrometer.
TECHNICAL DATA
|
Model |
P20HP Brake Hose Crimper |
|
Crimping Range |
12 - 57 (mm) |
|
Crimping Force |
200 (T) |
|
Hose Size |
1/4 - 1 1/4 (inch) |
|
Max. Opening |
28 (mm) |
|
Die Sets |
12 |
|
Die Set Type |
P20 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
Manual Pump |
|
Motor Power |
Manual Pump |
|
Length |
550 (mm) |
|
Width |
520 (mm) |
|
Height |
400 (mm) |
|
Weight |
70 (KG) |
P20 HOSE CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
55 |
|
8* |
8 - 10mm |
55 |
|
10* |
10 - 12mm |
55 |
|
12 |
12 - 15mm |
55 |
|
15 |
15 - 18mm |
55 |
|
18 |
18 - 21mm |
55 |
|
21 |
21 - 24mm |
55 |
|
24 |
24 - 27mm |
55 |
|
27 |
27 - 30mm |
70 |
|
30 |
30 - 36mm |
70 |
|
33 |
33 - 36mm |
70 |
| 36 | 36 - 39mm | 75 |
| 39 | 39 - 45mm | 75 |
| 45 | 45 - 48mm | 75 |
| 48 | 48 - 57mm | 90 |
NOTE
¤ * for non standard die sets;
¤ Customized die sets are available;
¤ Max. opening is the stroke between die sets fully closed and fully opened.
OPTIONAL
• Quick Change Tool
• Quick Change Die Set Rack;
• UC control;
-
