32mm Steel Wire Braided Pipe Pressing Machine P20HP With Pressure Guage

Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-P20HP
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 12 - 57mm Hose Size 1/4 - 1 1/4inch
Die Sets 12 Color Blue
Max. Opening 28mm Crimping Force 300T
Product Name P20HP Hose Pressing Machine Application Service
System Pressure 31.5Mpa Power Hand Pump
Size 550*520*400mm Weight 70Kg
High Light

32mm Hose Pressing Machine

,

Steel Wire Hose Pressing Machine

,

32mm pipe pressing machine

Leave a Message
Product Description

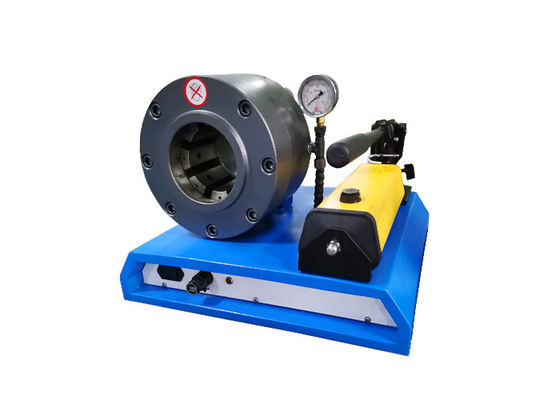

HOSE PRESSING MACHINE MS-P20HP


DESCRIPTION



MS-P20HP hose pressing machine is for hydraulic rubber hose from 1/4 inch t 1 1/4 inch crimping. It has light weight, but big crimping force. This hose crimper is the ideal choice for crimping on site, where there is no power supply.



ADVANTAGES



1. Light weight, small size;

2. Forged steel one piece hydraulic oil cylinder;

3. Full die sets;

4. Pressure gauge to show system pressure.



TECHNICAL DATA



Model

P20HP Hose Pressing Machine

Crimping Range

12 - 57 (mm)

Crimping Force

300 (T)

Hose Size

1/4 - 1 1/4 (inch)

Max. Opening

28 (mm)

Die Sets

12

Die Set Type

P20

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

MS

Standard Voltage

Manual Pump

Motor Power

Manual Pump

Length

550 (mm)

Width

520 (mm)

Height

400 (mm)

Weight

70 (KG)



32mm Steel Wire Braided Pipe Pressing Machine P20HP With Pressure Guage 0



P20 HOSE CRIMPER DIE SETS



Die No.

Crimping Range

Length

6*

6 - 8mm

55

8*

8 - 10mm

55

10*

10 - 12mm

55

12

12 - 15mm

55

15

15 - 18mm

55

18

18 - 21mm

55

21

21 - 24mm

55

24

24 - 27mm

70

27

27 - 30mm

70

30

30 - 36mm

70

33

33 - 36mm

75
36 36 - 39mm 75
39 39 - 45mm 75
45 45 - 48mm 90
48 48 - 57mm 90



NOTE



• * for non standard die sets;

• Customized die sets are available;

• Max. opening is the stroke between die sets fully closed and fully opened.



OPTIONAL



• Quick Change Tool

• Quick Change Die Set Rack;

• UC control;
