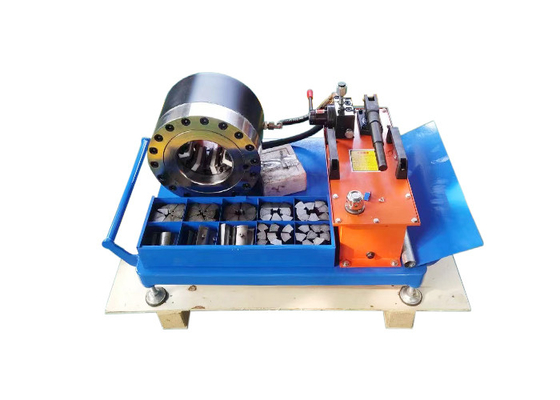

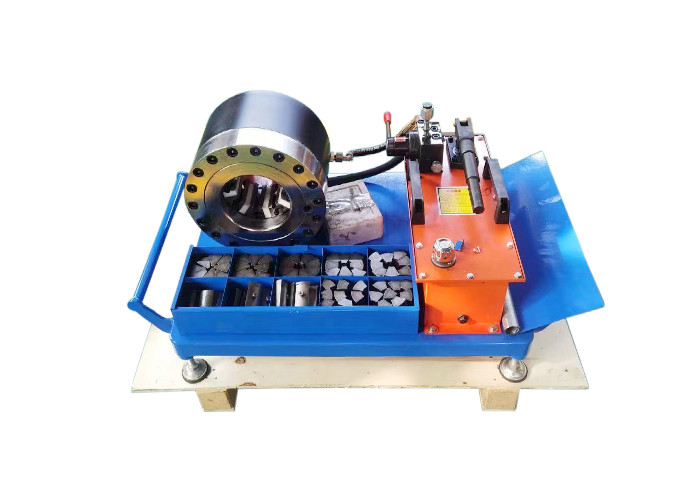

BRAKE HOSE CRIMPING MACHINE MS-51M
DESCRIPTION
MS-51M is a manual hose crimping machine with crimping capacity up to 2 inch 4 steel wire braided rubber hose. It is the ideal choice for hose assembly crimping when there is no power.
ADVANTAGES
1. Compact structure with big crimping force;
2. Die sets with high hardness;
3. One piece forged steel to make the cylinder;
4. High precision.
TECHNICAL DATA
|
Model |
51M Brake Hose Crimper |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
350 (T) |
|
Hose Size |
1/4 - 2 (inch) |
|
Max. Opening |
31 (mm) |
|
Die Sets |
10 |
|
Die Set Type |
51 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
Manual Pump |
|
Motor Power |
Manual Pump |
|
Length |
730 (mm) |
|
Width |
550 (mm) |
|
Height |
680 (mm) |
|
Weight |
170 (KG) |

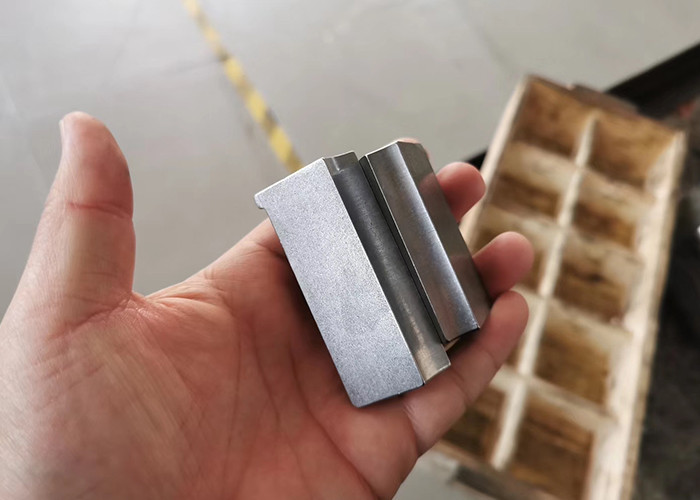

51 CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
35 |
|
8* |
8 - 10mm |
35 |
|
10* |
10 - 12mm |
35 |
|
12* |
12 - 15mm |
35 |
|
15 |
15 - 19mm |
60 |
|
19 |
19 - 23mm |
60 |
|
23 |
23 - 26mm |
60 |
|
26 |
26 - 31mm |
60 |
|
31 |
31 - 36mm |
70 |
|
36 |
36 - 41mm |
70 |
|
41 |
41 - 47mm |
70 |
| 47 | 47 - 55mm | 80 |
| 55 | 55 - 63mm | 80 |
| 63 | 63 - 69mm | 80 |
| 69* | 69 - 74mm | 100 |
NOTE
• * for non standard die sets;
• Customized die sets are available;
• Max. opening is the stroke between die sets fully closed and fully opened.
OPTIONAL
¤ Quick Change Tool
¤ Quick Change Die Set Rack;
¤ UC control;
-
