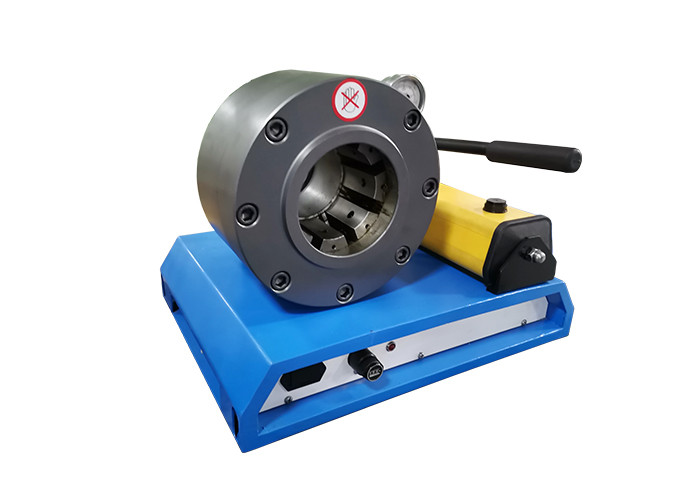

MANUAL PORTABLE HYDRAULIC HOSE CRIMPER MS-P20HP
DESCRIPTION
MS-P20HP is a manual hydraulic hose crimper with hand pump drive. It has light weight, so can be easily take to any place where there is hose crimping need.
ADVANTAGES
1. Compact structure, low maintenance cost;

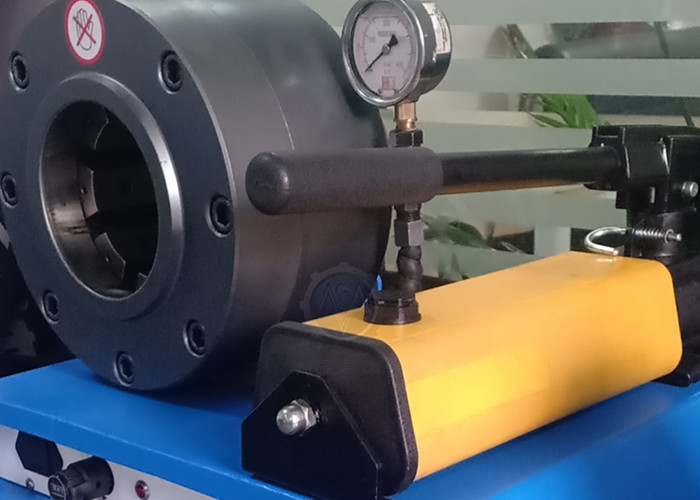

2. System pressure can be shown clearly with a pressure guage;
3. Die sets with heat processing and polishing, good appearance with high hardness.
TECHNICAL DATA
|
Model |
P20HP Portable Hydraulic Hose Crimper |
|
Crimping Range |
12 - 57(mm) |
|
Crimping Force |
200 (T) |
|
Hose Size |
1/4 - 1 1/4 (inch) |
|
Max. Opening |
28 (mm) |
|
Die Sets |
12 |
|
Die Set Type |
P20 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
Manual Pump |
|
Motor Power |
Manual Pump |
|
Length |
550 (mm) |
|
Width |
520 (mm) |
|
Height |
400 (mm) |
|
Weight |
70 (KG) |
P20 CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
55 |
|
8* |
8 - 10mm |
55 |
|
10* |
10 - 12mm |
55 |
|
12 |
12 - 15mm |
55 |
|
15 |
15 - 18mm |
55 |
|
18 |
18 - 21mm |
55 |
|
21 |
21 - 24mm |
55 |
|
24 |
24 - 27mm |
55 |
|
27 |
27 - 30mm |
70 |
|
30 |
30 - 36mm |
70 |
|
33 |
33 - 36mm |
70 |
| 36 | 36 - 39mm | 75 |
| 39 | 39 - 45mm | 75 |
| 45 | 45 - 48mm | 75 |
| 48 | 48 - 57mm | 75 |
NOTE
- * for non standard die sets;
- Customized die sets are available;
- Max. opening is the stroke between die sets fully closed and fully opened.
OPTIONAL
- Quick Change Tool
- Quick Change Die Set Rack;
- UC control;
-
CReliable quality, easy to use, a great helper for starting a business.
-
GThose who open a truck repair shop usually apply pressure to the brake oil pipe and hydraulic oil pipe of the truck. The manual version has sufficient pressure and the joint is tightly pressed. The truck runs long distances without oil leakage, which is recognized by the driver. The machine is durable and can be used in stores, as well as in places without electricity outdoors
-
2As a shop specializing in precision machinery, we have exceptionally high precision requirements for crimping machines. This equipment features adjustable crimping stroke with minimal error, ensuring oil-free connections after crimping. Even beginners can quickly learn—just 30 minutes of training enables them to operate it independently
