Manual Hose Crimping Machine Hydraulic Hose Fittings Crimping Machine Air Hose Crimper
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Crimping Range | 14 - 127mm | Hose Size | 1/4 - 3inch |
|---|---|---|---|
| Die Sets | 15 | Max. Opening | 35mm |
| Color | Blue | Crimping Force | 780T |
| Voltage | 220V | Power | 3KW |
| Size | 650*550*650mm | Weight | 250Kg |
| Highlight | 3 Inch Manual Hose Crimping Machine,High Pressure Manual Hose Crimping Machine,E150 High Pressure Hose Crimping Machine |
||
Product Description

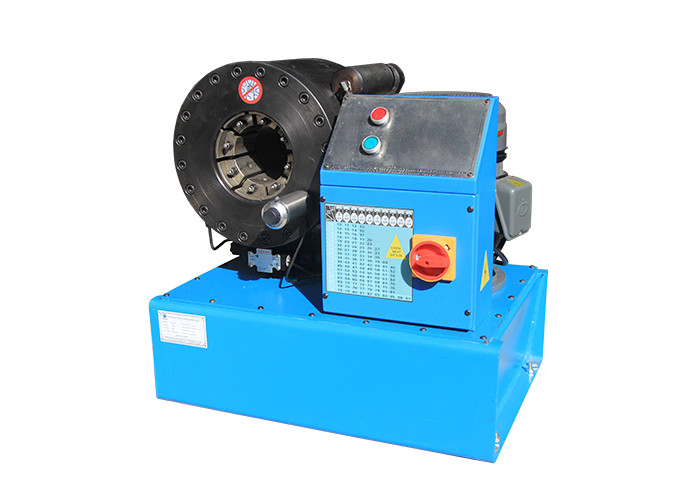

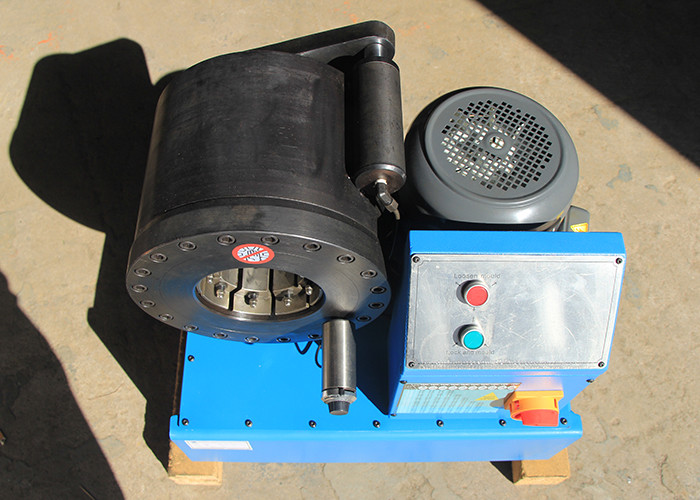

HAND HYDRAULIC HOSE CRIMPING MACHINE
MS-E150
DESCRIPTION
MS-E150 is a small size hose crimping machine with a wide hose range. Max crimping force up to 7800KN, is an ideal choice for high pressure hose assembly single-piece prodcution in machine shops, repair workshop, etc.
MAIN FEATURES
1) Good quality forged one-piece crimping head, prevent oil leakage problem;
2) Compact structure, light weight;
3) Two bevel master die with big crimping force;
4) High hardness mold, long service time.
TECHNICAL DATA
|
Model |
MS-E150 Manual Crimping Machine |
|
Crimping Range |
14 - 127 (mm) |
|
Crimping Force |
780 (T) |
|
Hose Size |
1/4 - 3 (inch) |
|
Max. Opening |
35 (mm) |
|
Die Sets |
15 |
|
Die Set Type |
150 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
3 (KW) |
|
Length |
650 (mm) |
|
Width |
550 (mm) |
|
Height |
650 (mm) |
|
Weight |
250 (KG) |
150 CRIMPER MACHINE DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
55 |
|
8* |
8 - 10mm |
55 |
|
10* |
10 - 12mm |
55 |
|
12* |
12 - 14mm |
55 |
|
14 |
14 - 16mm |
55 |
|
16 |
16 - 19mm |
55 |
|
19 |
19 - 22mm |
55 |
|
22 |
22 - 26mm |
70 |
|
26 |
26 - 30mm |
70 |
|
30 |
30 - 34mm |
70 |
|
34 |
34 - 39mm |
75 |
| 39 | 39 - 45mm | 75 |
|
45 |
45 - 51mm |
90 |
|
51 |
51 - 57mm |
90 |
| 57 | 57 - 63mm | 100 |
|
63 |
63 - 69mm |
110 |
|
69 |
69 - 74mm |
110 |
| 74 | 74 - 78mm | 110 |
| 78 | 78 - 87mm | 110 |
NOTE
1) Customized die sets are available with different size or shape;
2) Special voltage such as 110V, 208V, 240V, 415V are availbale;
3) Foot pedal is available to make the hands free;
4) " * " for non standard die sets
► HYDRAULIC CYLINDER WITH CHROME40
One piece forged design for the cylinder, prevent oil leakage and reduce the maintenance cost in the future
► HUMAN DESIGN VALVE SYSTEM
Minimum the oil transfer time to fast the crimping and opening time, improve the productivity
► DIE SETS WITH HIGH QUALITY MOLD STEEL
E150 is with 15 die sets with hardness of 59-63HRC, service time longer.
► PRESSING DIAMETER CONTROL MICROMETER
Hose crimping size are controled by a micrometer with 0.01mm accuracy, no need to adjust the scale for
one size hose
► APPLICATIONS
