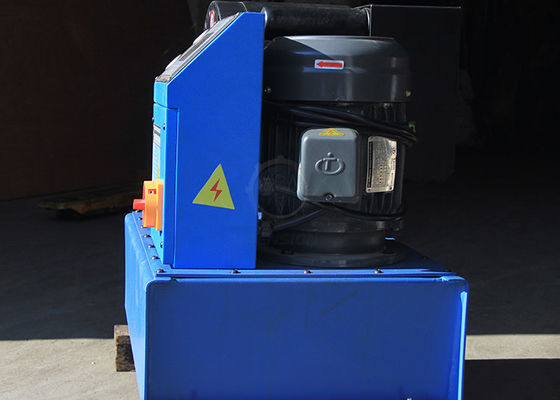

Automatic DX68 Hydraulic Hose Crimping Machine Cable Wire Press Service

  • Automatic DX68 Hydraulic Hose Crimping Machine Cable Wire Press Service
  • Automatic DX68 Hydraulic Hose Crimping Machine Cable Wire Press Service
  • Automatic DX68 Hydraulic Hose Crimping Machine Cable Wire Press Service
Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-NC130
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 1/4-2.5inch
Die Sets 13 Color Blue
Max. Opening 31mm Crimping Force 650T
Product Name NC130 Hose Crimping Machine DX68 Application Workshop
System Pressure 31.5Mpa Power 3.75KW
Size 650*550*650mm Weight 240Kg
High Light

NC130 DX68 Hose Crimping Machine

,

Hydraulic DX68 Hose Crimping Machine

,

Hydraulic hose press crimper
Leave a Message
Product Description



FAMOUS BRAND HOSE CRIMPING MACHINE MS-NC130 DX SERIES

DESCRIPTION



MS-NC130 is a hose press crimping machine which is controlled by CNC technlogy. It has a big crimping force for hose up to 2.5 inch and compact structure with volume less than 0.5CBM. Suitable for sea shipping with low cost.



ADVANTAGES



1. Advanced PLC system, more stable and intelligent;

2. Italian diameter control ruler;

3. Japanese hydraulic valves;

4. Unique cylinder designing, low maintenance cost.



TECHNICAL DATA



Model

MS-NC130 Hose Crimping Machine

Crimping Range

14 - 87 (mm)

Crimping Force

650 (T)

Hose Size

1/4 - 2.5 (inch)

Max. Opening

31 (mm)

Die Sets

13

Die Set Type

P32

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

3.75 (KW)

Length

650 (mm)

Width

550 (mm)

Height

650 (mm)

Weight

240 (KG)



Automatic DX68 Hydraulic Hose Crimping Machine Cable Wire Press Service 0

P32 HOSE CRIMPER DIE SETS



Die No.

Crimping Range

 Length

6*

6 - 8 mm

 55

8*

8 - 10 mm

 55

10*

10 - 12 mm

 55

12*

12 - 14 mm

 55

14

14 - 16 mm

 55

16

16 - 19 mm

 55

19

19 - 22 mm

 55

22

22 - 26 mm

 70

26

26 - 30 mm

 70

30

30 - 34 mm

 70

34

34 - 39 mm

 75

39

39 - 45 mm

 75

45

45 - 51 mm

 90

51

51 - 57 mm

 90

57

57 - 63 mm

 100

63

63 - 69 mm

 110

69

69 - 78 mm

 110



NOTE



- * for standard die sets;

- Customized die sets are available;

- Special voltage 110V, 208V, 240V, 415V are availbale;



Automatic DX68 Hydraulic Hose Crimping Machine Cable Wire Press Service 1



Automatic DX68 Hydraulic Hose Crimping Machine Cable Wire Press Service 2



Automatic DX68 Hydraulic Hose Crimping Machine Cable Wire Press Service 3
