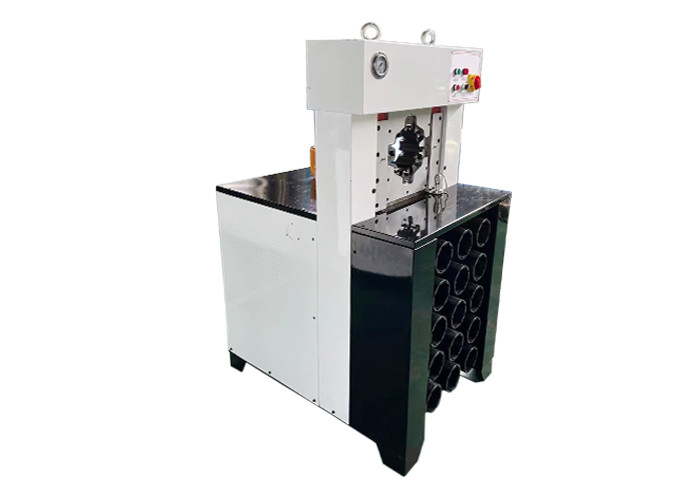

HYDRAULIC HOSE CRIMPER MACHINE MS - P130
DESCRIPTION
MS-P130 pressing machine is designed to meet the demand of the market for a thin head crimper. It is the ideal choice for elbow fitting crimping with wide opening.
ADVANTAGES

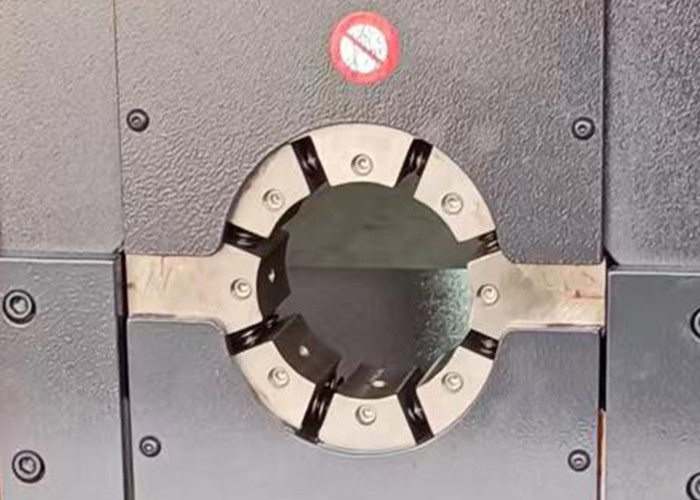

1) Big opening head, easy crimping for elbows
2) Quick die change for die sets, improve the productivity
3) High accurate micrometer, good crimping result
TECHNICAL DATA
|
Model |
MS-P130 Crimping Machine |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
600 (T) |
|
Hose Size |
1/4 - 2 (inch) |
|
Max. Opening |
45 (mm) |
|
Die Sets |
10 |
|
Die Set Type |
P130 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
3.75 (KW) |
|
Length |
720 (mm) |
|
Width |
970 (mm) |
|
Height |
1600 (mm) |
|
Weight |
820 (KG) |
P130 HOSE CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
35 |
|
8* |
8 - 10mm |
35 |
|
10* |
10 - 12mm |
35 |
|
12* |
12 - 14mm |
35 |
|
14 |
14 - 16mm |
60 |
|
16 |
16 - 19mm |
60 |
|
19 |
19 - 22mm |
60 |
|
22 |
22 - 26mm |
60 |
|
26 |
26 - 30mm |
60 |
|
30 |
30 - 34mm |
70 |
|
34 |
34 - 39mm |
70 |
|
39 |
39 - 45mm |
70 |
|
45 |
45 - 51mm |
80 |
|
51 |
51 - 57mm |
80 |
|
57 |
57 - 63mm |
80 |
|
63 |
63 - 69mm |
100 |
|
69 |
69 - 74mm |
110 |
| 74 | 74 - 80mm | 110 |
| 78* | 78 - 87mm | 110 |
NOTE
- " * " for non standard die sets;
- Customized die sets are available;
- Special voltage 110V, 208V, 240V, 415V are availbale;
► NEW DIE SETS WITH FAST CHANGE
14 die sets, range from 14mm to 74mm, suitable for hose from 1/4 to 2 inch with six spirals crimping
► BIG DOUBLE USE FOOT PEDAL
The foot pedal frees both of the operator's hand and improve the working efficiency much
► OEM SERVICE AVAILABLE
► APPLICATION SHOW
-
CReliable quality, easy to use, a great helper for starting a business.
-
GThose who open a truck repair shop usually apply pressure to the brake oil pipe and hydraulic oil pipe of the truck. The manual version has sufficient pressure and the joint is tightly pressed. The truck runs long distances without oil leakage, which is recognized by the driver. The machine is durable and can be used in stores, as well as in places without electricity outdoors
-
2As a shop specializing in precision machinery, we have exceptionally high precision requirements for crimping machines. This equipment features adjustable crimping stroke with minimal error, ensuring oil-free connections after crimping. Even beginners can quickly learn—just 30 minutes of training enables them to operate it independently
