Big Power Portable Hydraulic Hose Crimper
,E180 Portable Hydraulic Hose Crimper
,High Pressure pipe crimping tool

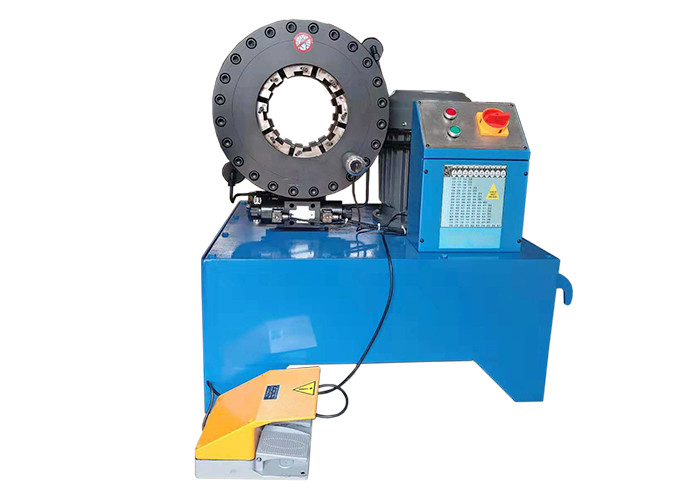

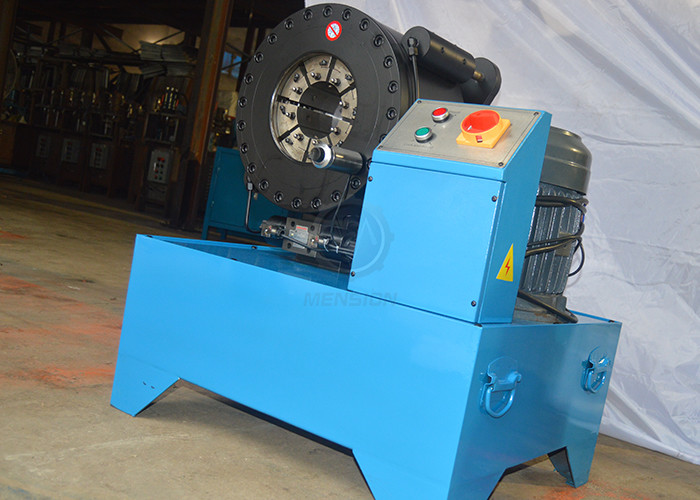

4 INCH BIG HYDRAULIC HOSE CRIMPER MS-E180
DESCRIPTION
MS-E180 hydraulic hose crimping machine is famous for its larged crimping range. It is the ideal choice for large hydraulic or industrial hose assembly making.
MAIN FEATURES
1. Big foot pedal switch, more convenient;
2. Aluminium shell copper wire motor, more stable;
3. Finn power micrometer, more accurate.
TECHNICAL DATA
|
Model |
MS-E180 Portable Hydraulic Hose Crimper |
|
Crimping Range |
14 - 167 (mm) |
|
Crimping Force |
980 (T) |
|
Hose Size |
1/4 - 4 (inch) |
|
Max. Opening |
45 (mm) |
|
Die Sets |
18 |
|
Die Set Type |
32 180 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
380 (V) |
|
Motor Power |
7.5 (KW) |
|
Length |
800 (mm) |
|
Width |
650 (mm) |
|
Height |
880 (mm) |
|
Weight |
510 (KG) |
E180 CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
55 |
|
8* |
8 - 10mm |
55 |
|
10* |
10 - 12mm |
55 |
|
12* |
12 - 15mm |
55 |
|
15 |
15 - 18mm |
55 |
|
18 |
18 - 21mm |
55 |
|
21 |
21 - 24mm |
55 |
|
24 |
24 - 27mm |
55 |
|
27 |
27 - 33mm |
55 |
|
33 |
33 - 39mm |
75 |
|
39 |
39 - 45mm |
75 |
|
45 |
45-51mm |
90 |
|
51 |
51 - 57mm |
90 |
|
57 |
57 - 66mm |
100 |
|
66 |
66 - 73mm |
110 |
| 73 | 73 - 90mm | 110 |
| 90 | 90 - 96mm | 120 |
| 96 | 96 - 102mm | 120 |
| 102 | 102 - 108mm | 120 |
| 108 | 108 - 114mm | 120 |
| 114 | 114 - 123mm | 120 |
| 123 | 123 - 136mm | 120 |
NOTE
- * for non standard die sets;
- Customized die sets are available;
- Special voltage 110V, 208V, 240V, 415V are availbale;
-
CReliable quality, easy to use, a great helper for starting a business.
-
GThose who open a truck repair shop usually apply pressure to the brake oil pipe and hydraulic oil pipe of the truck. The manual version has sufficient pressure and the joint is tightly pressed. The truck runs long distances without oil leakage, which is recognized by the driver. The machine is durable and can be used in stores, as well as in places without electricity outdoors
-
2As a shop specializing in precision machinery, we have exceptionally high precision requirements for crimping machines. This equipment features adjustable crimping stroke with minimal error, ensuring oil-free connections after crimping. Even beginners can quickly learn—just 30 minutes of training enables them to operate it independently
