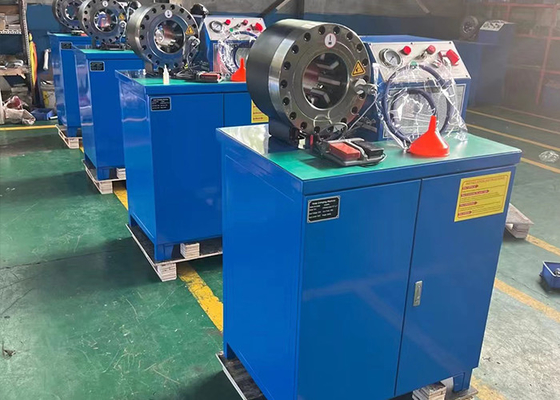

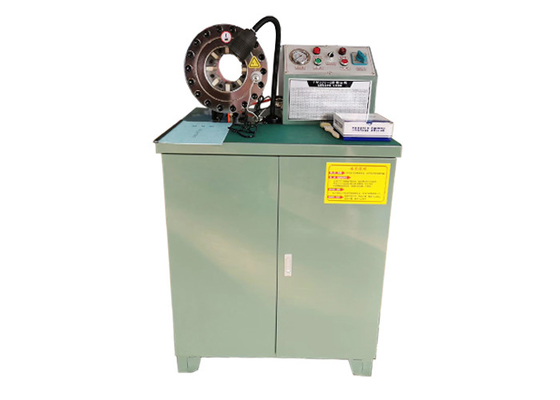

BUTTON MANUAL HOSE PRESS MACHINE MS-51L
DESCRIPTION
MS-51L is a hose crimping machine which has a standard. The height is suitable for operator to work. 13 months warranty will be supplied based on the date of BL. Spare parts will be free if not human broken.
MAIN ADVANTAGES
1) Double use foot pedal frees both the hands
2) Working light makes crimping more convenient
3) Pump works with high efficiency
4) Control unit with high accuracy, signal lamp is equipped
TECHNICAL DATA
|
Model |
MS-51L Manual Hose Crimping Machine |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
500 (T) |
|
Hose Size |
1/4 - 2 (inch) |
|
Max. Opening |
30 (mm) |
|
Die Sets |
10 |
|
Die Set Type |
51 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.05 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
3 (KW) |
|
Length |
800 (mm) |
|
Width |
640 (mm) |
|
Height |
1300 (mm) |
|
Weight |
320 (KG) |
51 STANDARD DIE SETS
|
Die No. |
Crimping Range |
|
6* |
6 - 8mm |
|
8* |
8 - 10mm |
|
10* |
10 - 12mm |
|
12* |
12 - 15mm |
|
15 |
15 - 19mm |
|
19 |
19 - 23mm |
|
23 |
23 - 26mm |
|
26 |
26 - 31mm |
|
31 |
31 - 36mm |
|
36 |
36 - 41mm |
|
41 |
41 - 47mm |
|
47 |
47 - 55mm |
|
55 |
55 - 63mm |
|
63 |
63 - 69mm |
|
69* |
69 - 76mm |
NOTE
- Customized die sets with different size are available;
- Special voltage 110V, 208V, 240V, 415V are availbale;
OPTIONAL
- Quick Change Tool;
- UC control;
OPERATE PANEL WITH HUMAN DESIGN
Two operate mode is with the machine, free alternating between automatic and semi-automatic
HIGH HARDNESS DIE SETS
Diameter from 15mm to 63mm, for hydraulic hose assembly making
DOUBLE USE FOOT PEDAL
High quality foot pedal, long life for using
FAST DELIVERY AND WIDE USAGE
Mension is manufacturer for hose crimping machine with more than 20 years. For most models, can be delivered within 7 days. 51L is a 2 Inch hose crimping machine, which is capable of crimping hydrualic hose from 1/4'' to 2'', it can be used for quick jointing of material, like high pressure rubber oil hose, low pressure water or air pipes, cables, wires or ropes.
-
CReliable quality, easy to use, a great helper for starting a business.
-
CI've been running a hardware store for three years. This hydraulic crimping machine was the one I chose after comparing five different models. Initially, I was worried about the precision, so I tested over 20 high-pressure oil pipe connectors—each crimped perfectly in one go without any leaks. Now, customer feedback is great, and the repeat purchase rate is high
-
GThose who open a truck repair shop usually apply pressure to the brake oil pipe and hydraulic oil pipe of the truck. The manual version has sufficient pressure and the joint is tightly pressed. The truck runs long distances without oil leakage, which is recognized by the driver. The machine is durable and can be used in stores, as well as in places without electricity outdoors
