Air Conditioner Hose Crimper High Pressure Pipe Pressing Machine P32 Crimping Machine

  • Air Conditioner Hose Crimper High Pressure Pipe Pressing Machine P32 Crimping Machine
  • Air Conditioner Hose Crimper High Pressure Pipe Pressing Machine P32 Crimping Machine
  • Air Conditioner Hose Crimper High Pressure Pipe Pressing Machine P32 Crimping Machine
Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-51L
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 1/4 - 2inch
Die Sets 10 Color Blue
Max. Opening 30mm Crimping Force 500T
Product Name 51L AC Hose Crimping Machine Application Workshop
System Pressure 31.5Mpa Power 3KW
Size 800*640*1300mm Weight 320Kg
High Light

51L Air Conditioner Hose Crimper

,

High Pressure Air Conditioner Hose Crimper

,

500T High Pressure Hose Crimper
Leave a Message
Product Description

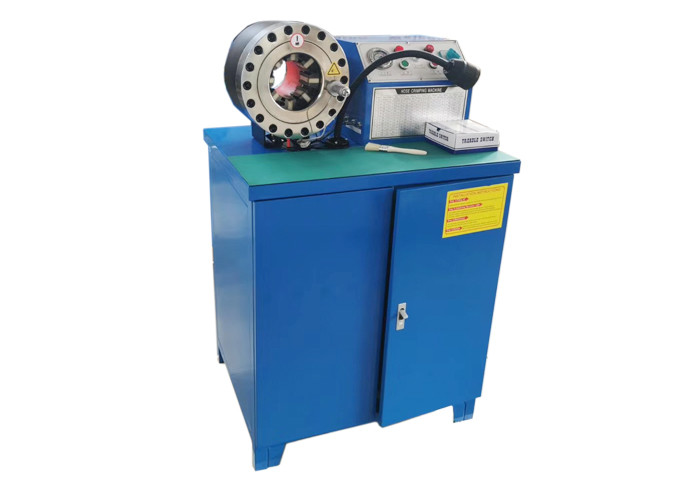

AIR AC HOSE CRIMPING MACHINE MS-51L

DESCRIPTION



MS-51L ac hose crimper machine is famous for its convenient operation and large crimping range. It is the ideal choice for machinery repair workshop for hose assembly making.



MAIN ADVANTAGES



1. Multifucntional operate panel;

2. Double use foot pedal, both crimping and opening;

3. Low noise;

4. Large crimping ability.



TECHNICAL DATA



Model

MS-51L AC Hose Crimping Machine

Crimping Range

14 - 87 (mm)

Crimping Force

500 (T)

Hose Size

1/4 - 2 (inch)

Max. Opening

30 (mm)

Die Sets

10

Die Set Type

51

System Pressure

31.5 (Mpa)

Accuracy

0.05 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

3 (KW)

Length

800 (mm)

Width

640 (mm)

Height

1300 (mm)

Weight

320 (KG)



Air Conditioner Hose Crimper High Pressure Pipe Pressing Machine P32 Crimping Machine 0

51 HOSE CRIMPER DIE SETS



Die No.

Crimping Range

 Length

6*

6 - 8 mm

 35

8*

8 - 10 mm

 35

10*

10 - 12 mm

 35

12*

12 - 15 mm

 35

15

15 - 19 mm

 60

19

19 - 23 mm

 60

23

23 - 26 mm

 60

26

26 - 31 mm

 60

31

31 - 36 mm

 70

36

36 - 41 mm

 70

41

41 - 47 mm

 70

47

47 - 55 mm

 80

55

55 - 63 mm

 80

63

63 - 69 mm

 80

69*

69 - 76 mm

 100



NOTE



- * for non standard die sets;

- Customized die sets are available;

- Special voltage 110V, 208V, 240V, 415V are availbale;



OPTIONAL



- Quick Change Tool

- UC control;



Air Conditioner Hose Crimper High Pressure Pipe Pressing Machine P32 Crimping Machine 1



Air Conditioner Hose Crimper High Pressure Pipe Pressing Machine P32 Crimping Machine 2



Air Conditioner Hose Crimper High Pressure Pipe Pressing Machine P32 Crimping Machine 3
